Siemens SED2 Commissioning Guide

26 / 100
Siemens Commissioning Guide CM1G5192en
Building Technologies 5 Electrical installation 29.07.2010

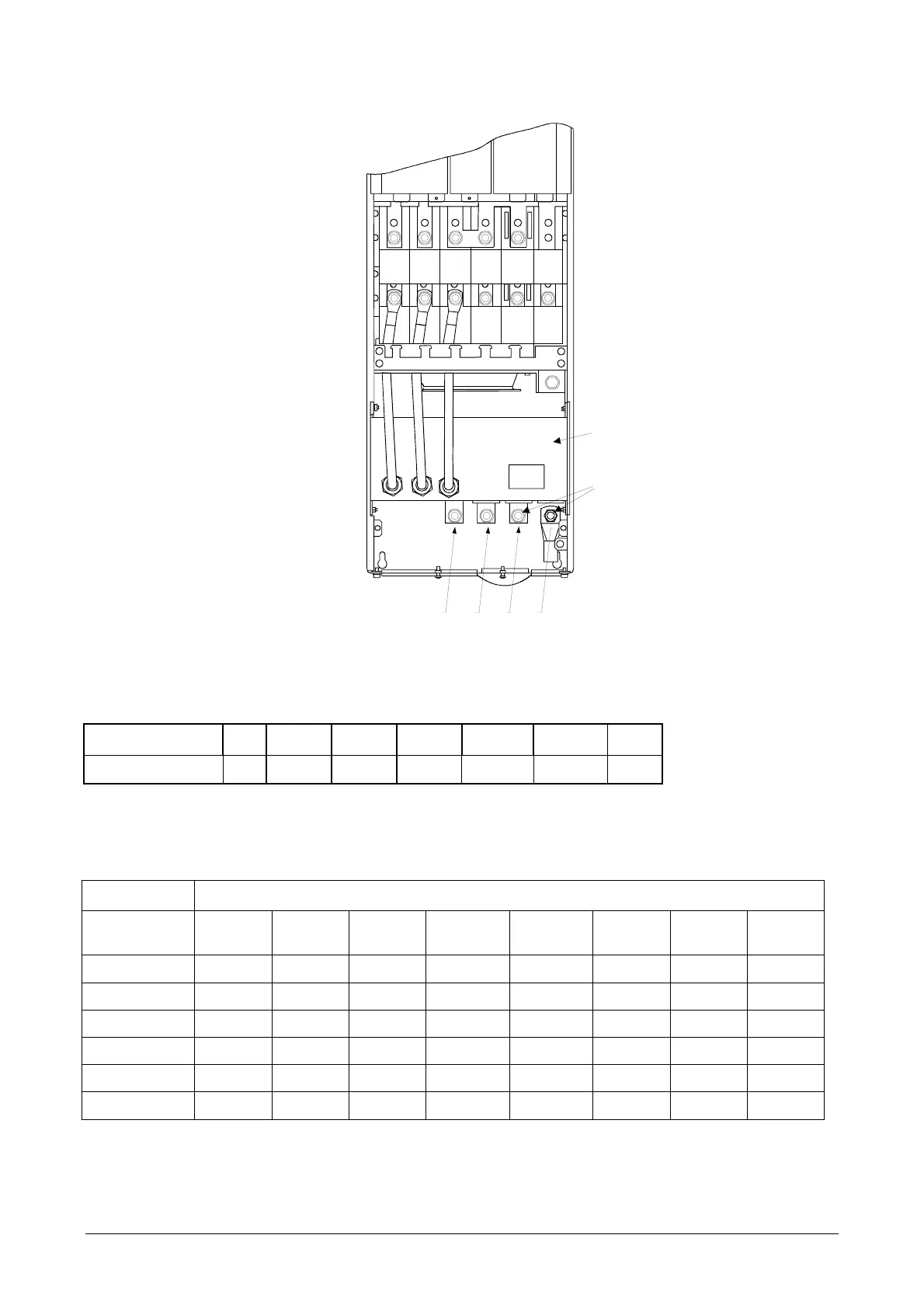

Connection terminals of
SED2 frame size F, IP20,
with built-in EMC filter
PE L1 L2 L3
L1
DC+
B
DC+
B
UV
L2 L3 W
DC- B- DC+
R+
View without cable entry guide
and without lower terminal connection plate
Mains voltage inputs
EMC filter
5192Z09en
5.2.6 Tightening torque for the connection terminals
Frame size
A B C D E F
Tightening torque
Nm 1.1 1.5 2.25 10 (max.) 10 (max.) 50
5.2.7 Dimensions of cable entries in the gland plates of SED2 IP20
Frame size Number of entries
18.8 mm
dia.
22.8 mm
dia.
28.0 mm
dia.
Skullform
28x31 mm
Skullform
45x51 mm
46.0 mm
dia.
48.0 mm
dia.
76.2 mm
dia.
A
- 2 - - - - - -
B
2 2 - - - - - -
C
3 - 2 - - - - -
D
1 1 3 - - -
E
- - - - - - 12 -
F
- - - - - 6 4 1
