Siemens Commissioning Guide CM1G5192en
Building Technologies 8 Additional functions 29.07.2010

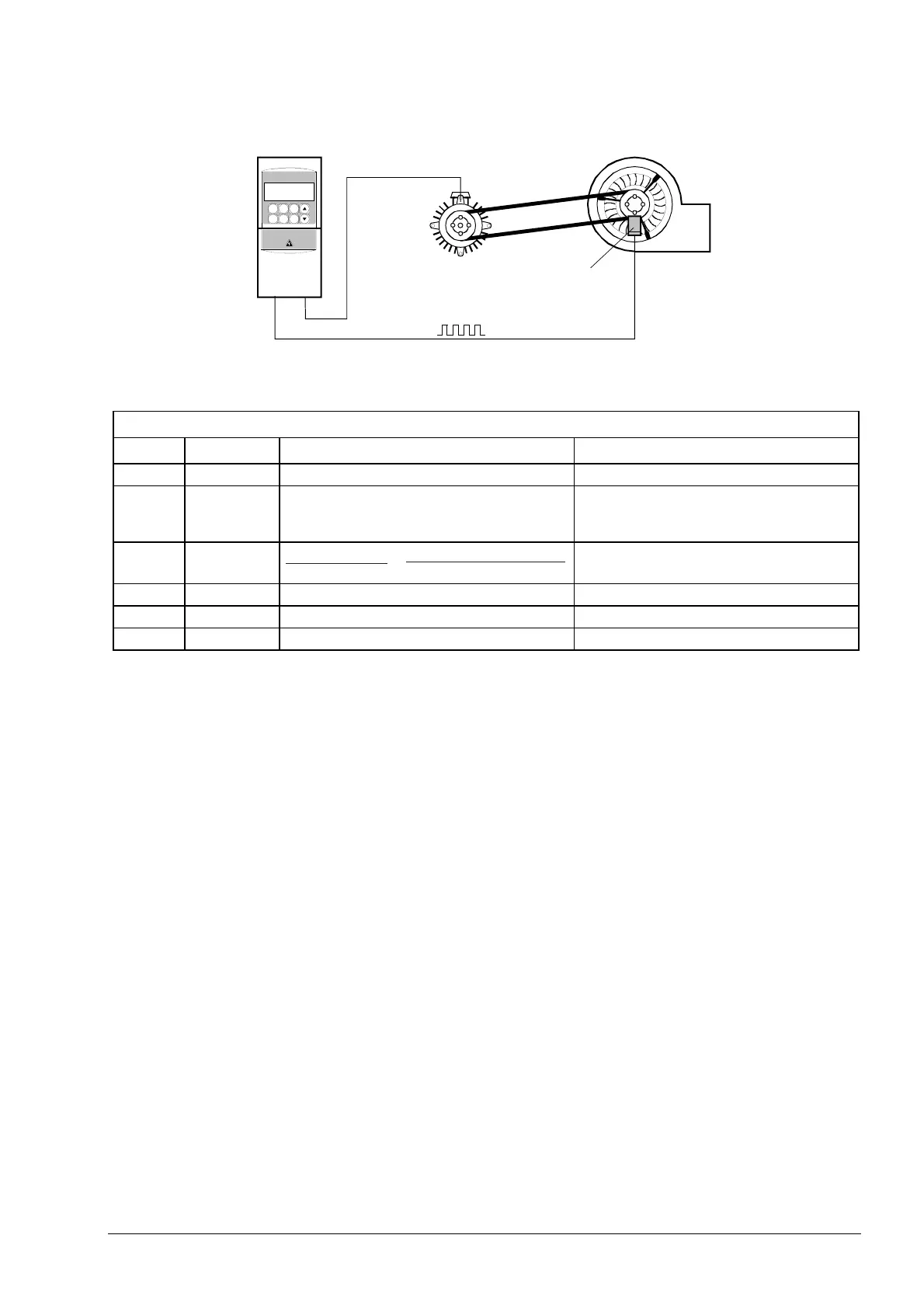

8.2 Belt failure detection with sensor
Carry out quick commissioning and modify the parameters for normal operation, then proceed as follows:
SED2
Fan
5192Z23en
Encoder
Motor
8.2.1 Parameter setting
Start with quick commissioning according to application 1
Par. no. Value Parameter function Function selection
P0003 3 User access level Expert access
P0400 3
Encoder type
*
External encoder
(The encoder can only be connected to
digital input 5, terminals 9 and 16)
P0409 Pulses / s
at rated freq.
rotary speed (r.p.m.)
∅
Pulley on motor (e.g. mm)
∅
Pulley on ventilator (e.g. mm)
60 (s/min)
×
E.g. (2820 / 60) × (300 / 300) = 47
P2181 6 Belt failure detection mode
Trip on high / low torque / speed
P2191 3 Belt failure speed tolerance
P2192 10 s Time delay for belt failure
* Recommended encoder type: Oppermann SN – Z2
