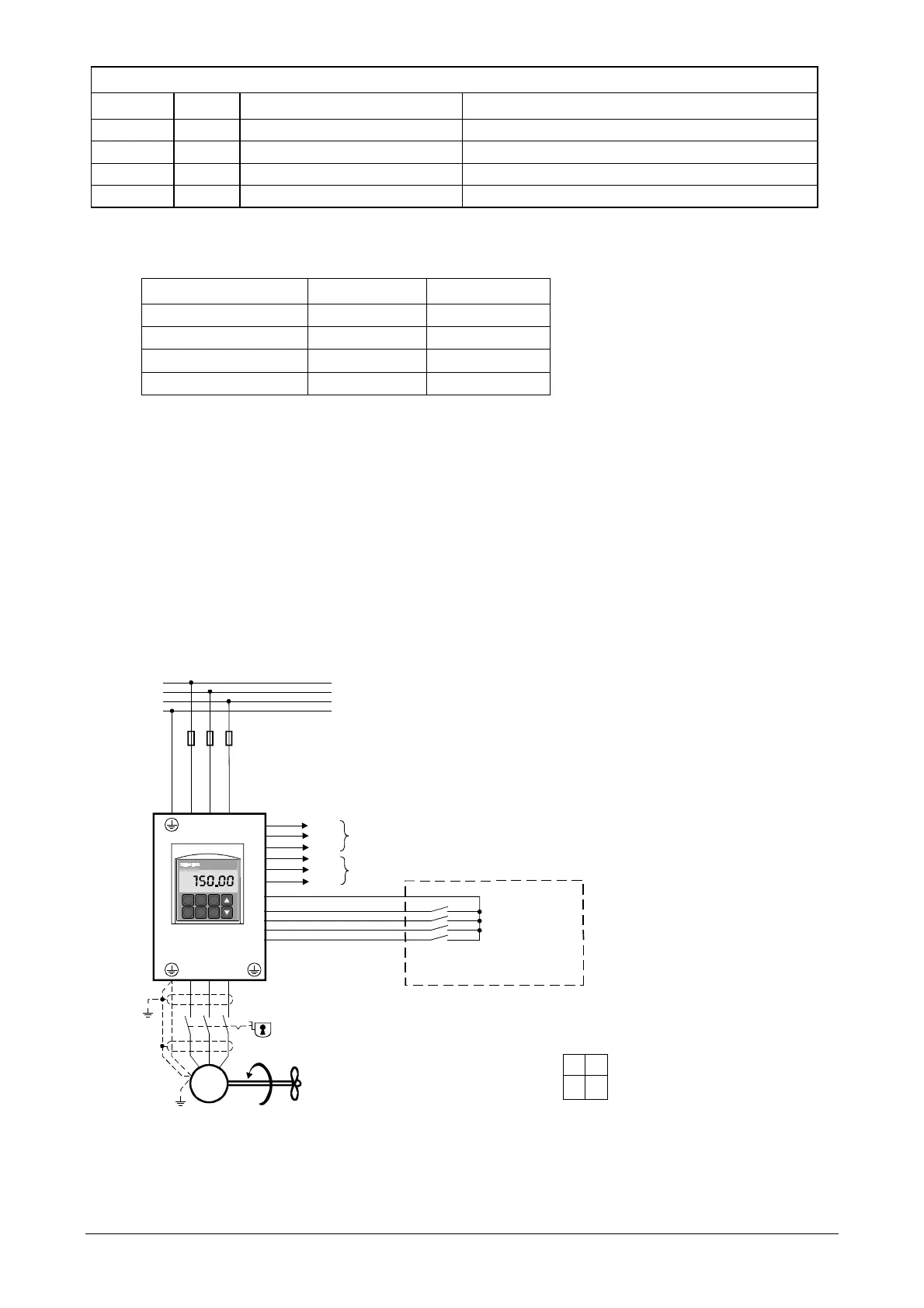

Siemens Commissioning Guide CM1G5192en
Building Technologies 7 Applications 29.07.2010
Scaling of DC 0…10 V signals: Example: DC 0…10 V = 10…60 Hz
Par. no. Value Parameter function Function selection
P0003 2 User access level Expert access
P0757(0) 0 Value x1
P0758(0) 16.67% Value y1 Minimum frequency at 0 V
P2000 60 Hz Reference frequency
7.1.2 Recommended ramp times as a function of SED2 output
SED2 output Frame size Ramp time
0.37 - 4 kW A - B 30 s
5.5 - 15 kW C 60 s
18.5 - 30 kW D 90 s
37 - 90 kW E - F 120 s
7.2 Application 2
A motor shall run at 4 fixed speeds.
− Control is accomplished via digital inputs
− Error message via relay output 1
− Indication of operation via relay output 2
Note: With the settings for this application, the assumption is made that the parameters use their default values
and that the connected motor has been commissioned with the standard parameters.
If several digital inputs are active at the same time, the setpoint will be added up.
The VSD is started when one of the inputs assumes the ON position.
Hand
Au to
SED2
0
I
P
Fn
P(1)
Hz
L1
L2
L3
PE
L1 L2 L3
20
uvw
M
9
5
6
7
8
21
22
23
24
25
Fuses
Inspection switch
Fan
Building Management System (BMS)
or
speed selector switch
5192A02en
Fixed frequency 1
Fixed frequency 2
Fixed frequency 3
Fixed frequency 4
Error
Com
Run
Com
Relay 1
Relay 2
DIP switch setting
ON
1 = Analog input 1
OFF
■ ■
OFF = DC 0…10 V
1 2
ON = 0…20 mA
2 = Analog input 2
OFF = DC 0…10 V
ON = 0…20 mA
To Next Page
