4.7.2 Overview conduit connectors

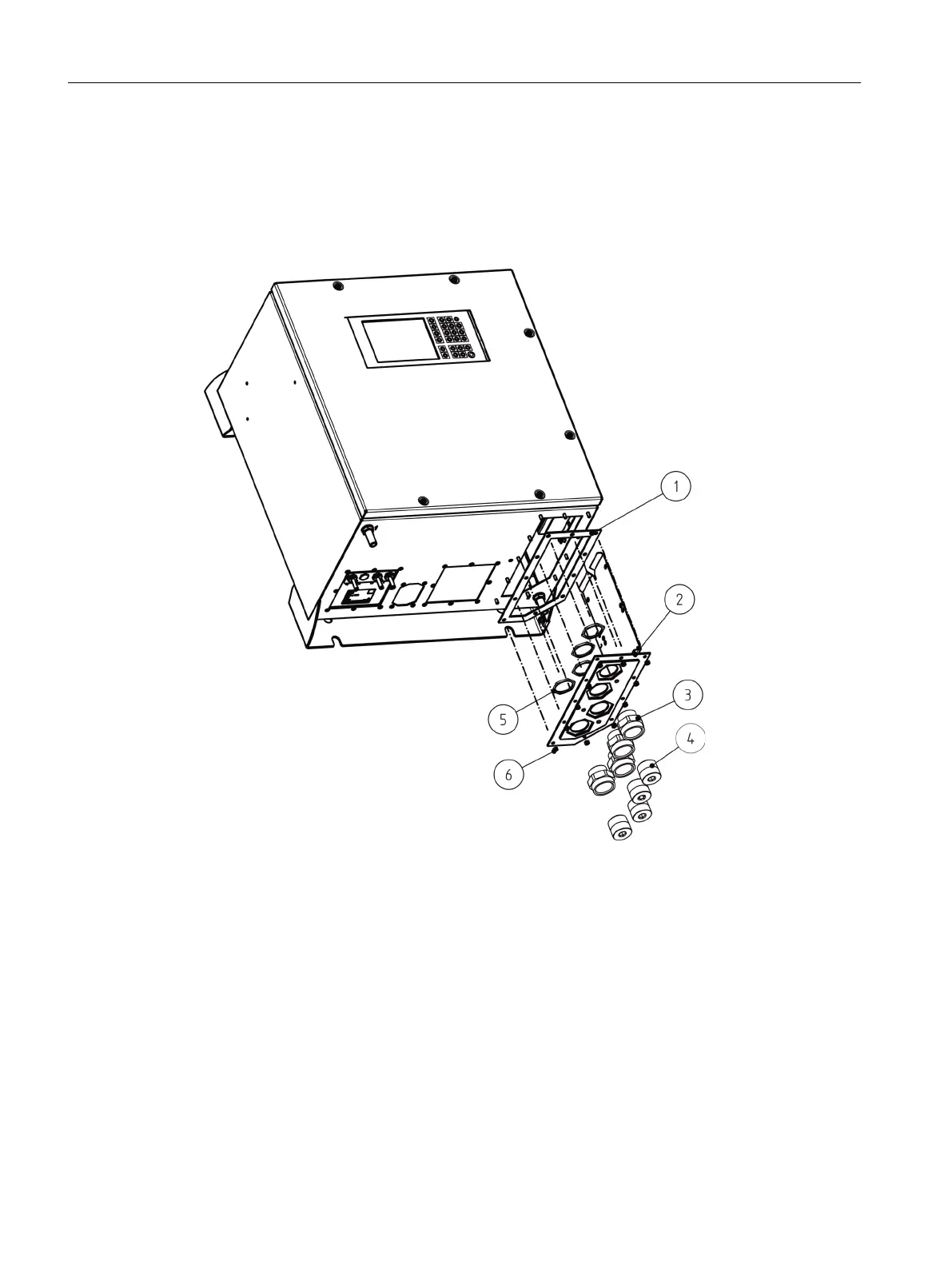

Overview conduit connectors
① Flat Gasket
② Clamp Connection Conduit
③ Adapter M32x1-NPT1
④ Blind Plug NPT1
⑤ Locknut M32
⑥ Hex Nut ISO 4032-M4 A2K
The adapters need to be fastened with 35 Nm in case they get loosed during installation.
Connecting
4.7Connecting the wall-mounted device
SIPROCESS GA700 rack and wall mounted devices
58 Compact Operating Instructions, 06/2023, A5E35134047-AB
