4.7.4.2 Connecting the signal cables
Overview




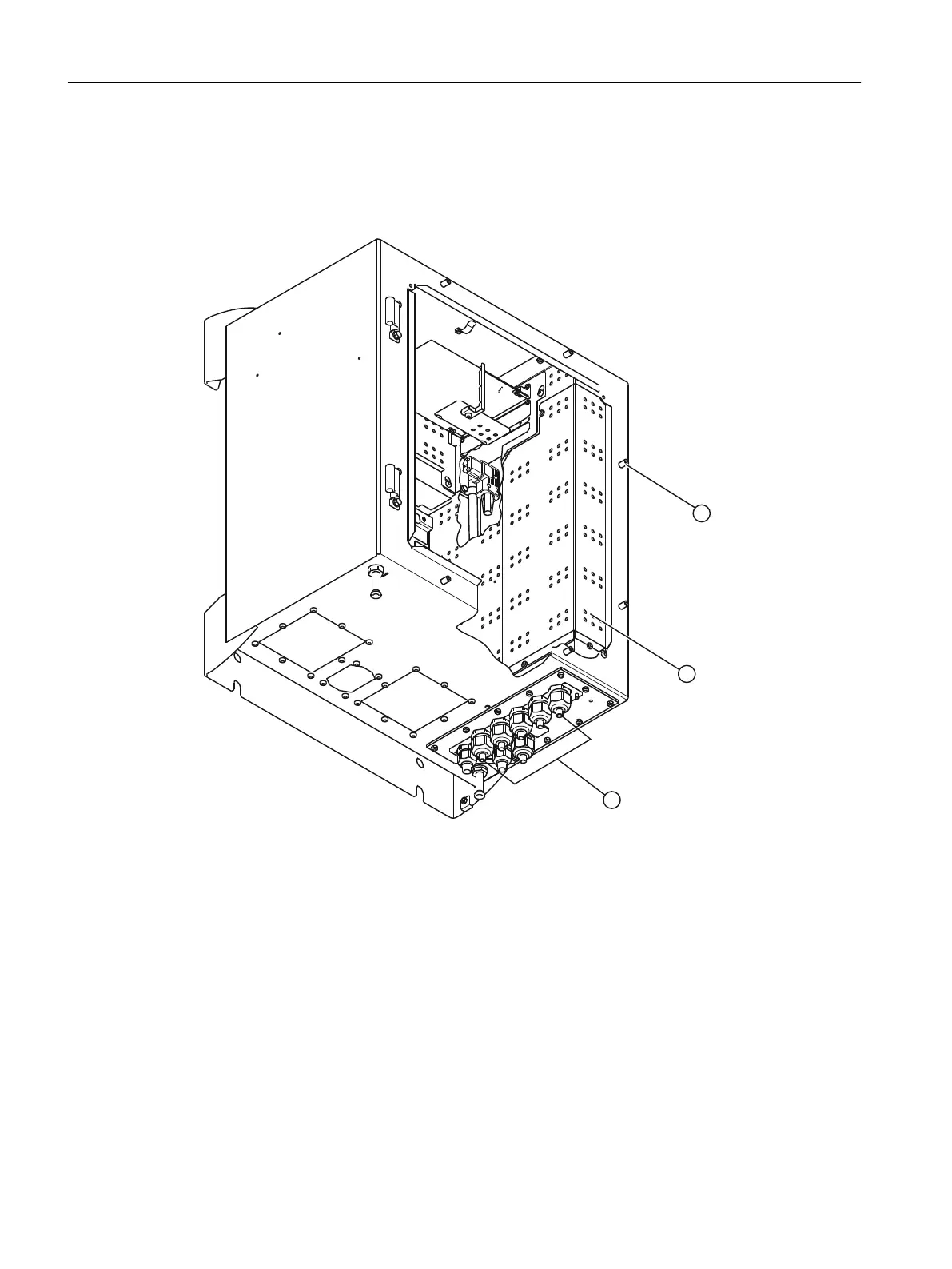

① Door screws
② Shielding plate
③ Cable glands for signal lines (7 units)
Figure4-11 Wall-mounted device, connecting signal cables
Procedure
1. Undo the six screws ① and open the door of the wall-mounted device.
2. Remove the shielding plate ② on the right side panel. To do this loosen the screws.
3. Strip the end of signal cable to a length of approx. 1 cm.
4. Loosen the union nut from the respective cable gland ③ on the underside of the wall-
mounted device.
5. Insert the signal cable through this cable gland ③.
Connecting
