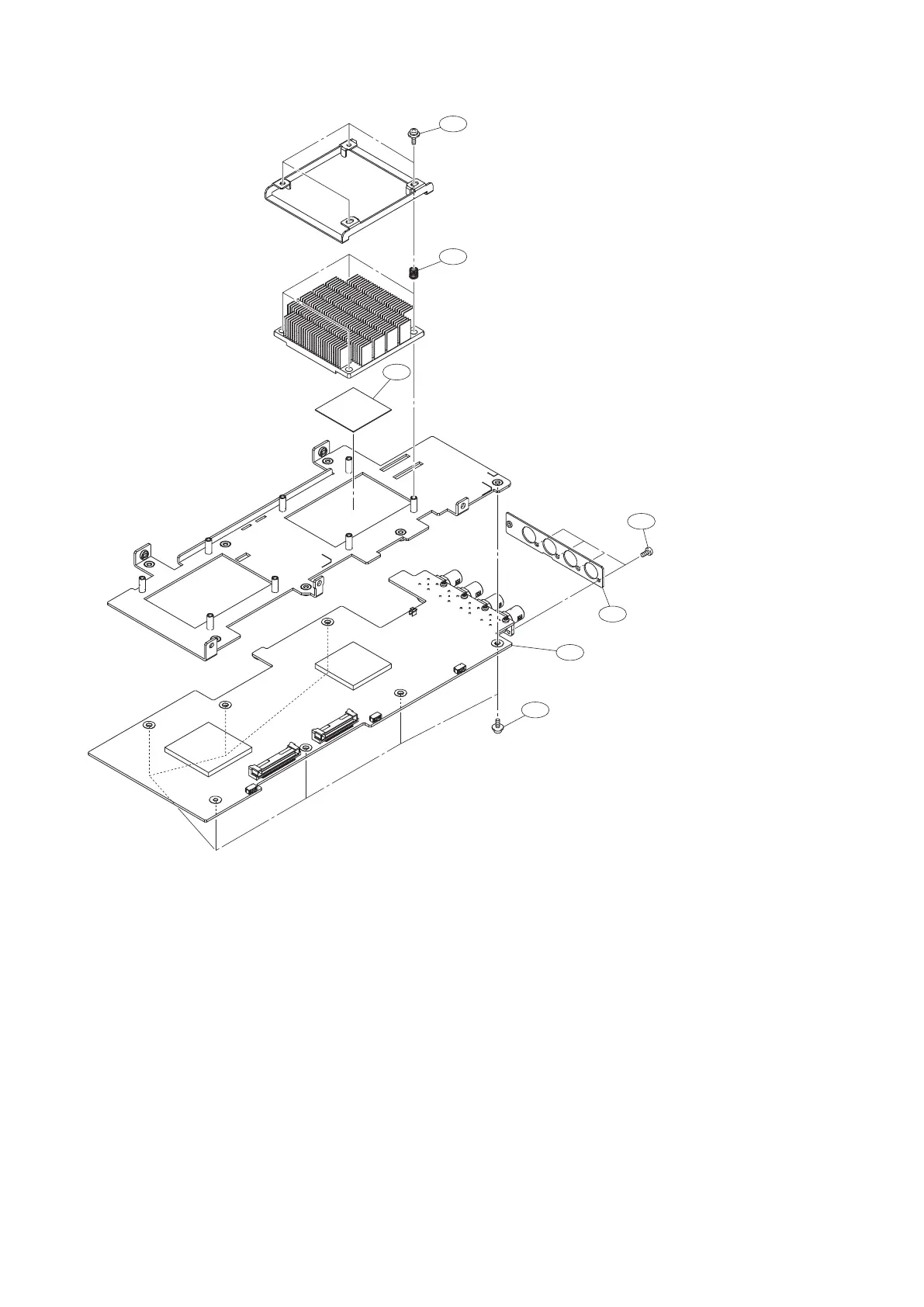

TX-167A Board
302
306
305
303
304
302
301
No.
Part No.
SP
Description
301
A-5001-894-A
s
TX-167A COMPL(PCD)
302
4-382-854-01
s
SCREW (M3X8), P, SW (+)
303
4-559-446-02
s
SCREW, +P2.6X5 NEW TRUSTER
304
4-748-583-02
s
PANEL, SDI
305
4-748-822-01
s
SHEET, RADIATION (35X35) T0.5
306
5-004-264-01
s
SPRING, COMPRESSION
HDCU3500/HDCU5500
7-5
122
124
