Sony HDCU5500 Service Manual

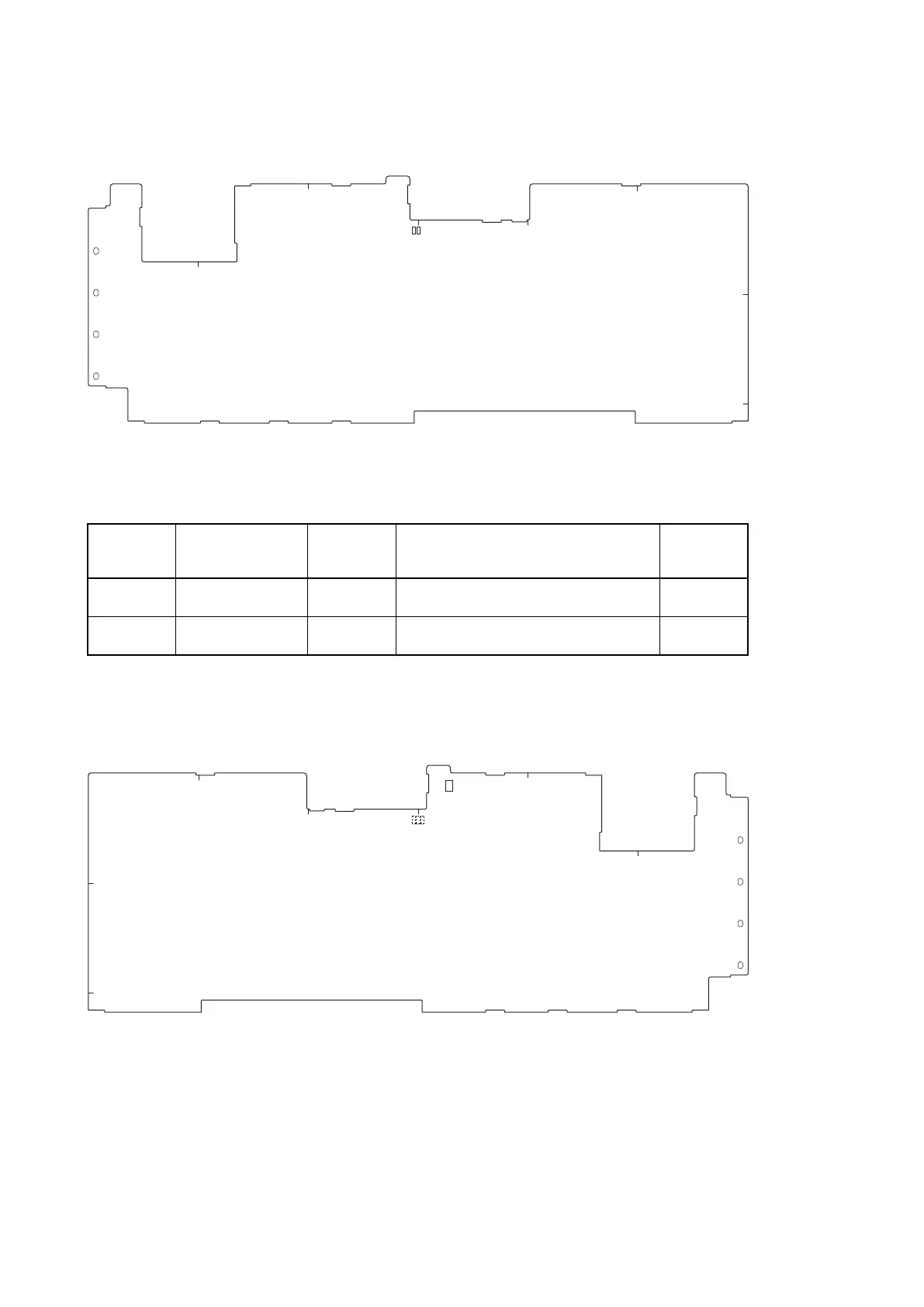

1-2-4. TX-167A Board
TX-167A BOARD (B side)
D101 D2001
A
1
2
B
C
DE
F
LED
Ref. No. Name Color Description Normal
State
(Power On)
D101 POWER Red Lit when the power to the TX-167A board is ab-
normal.
OFF
D2001 TX1_CONFDONE Red This LED goes out when TX1 PLD is normally
completed configuration.
OFF
1-2-5. TX-167B Board
TX-167B BOARD (A side)
TX-167B BOARD (B side)
S1002
D1101 D2001 D101
A
1
2
B
C
DE
F
HDCU3500/HDCU5500
1-5
