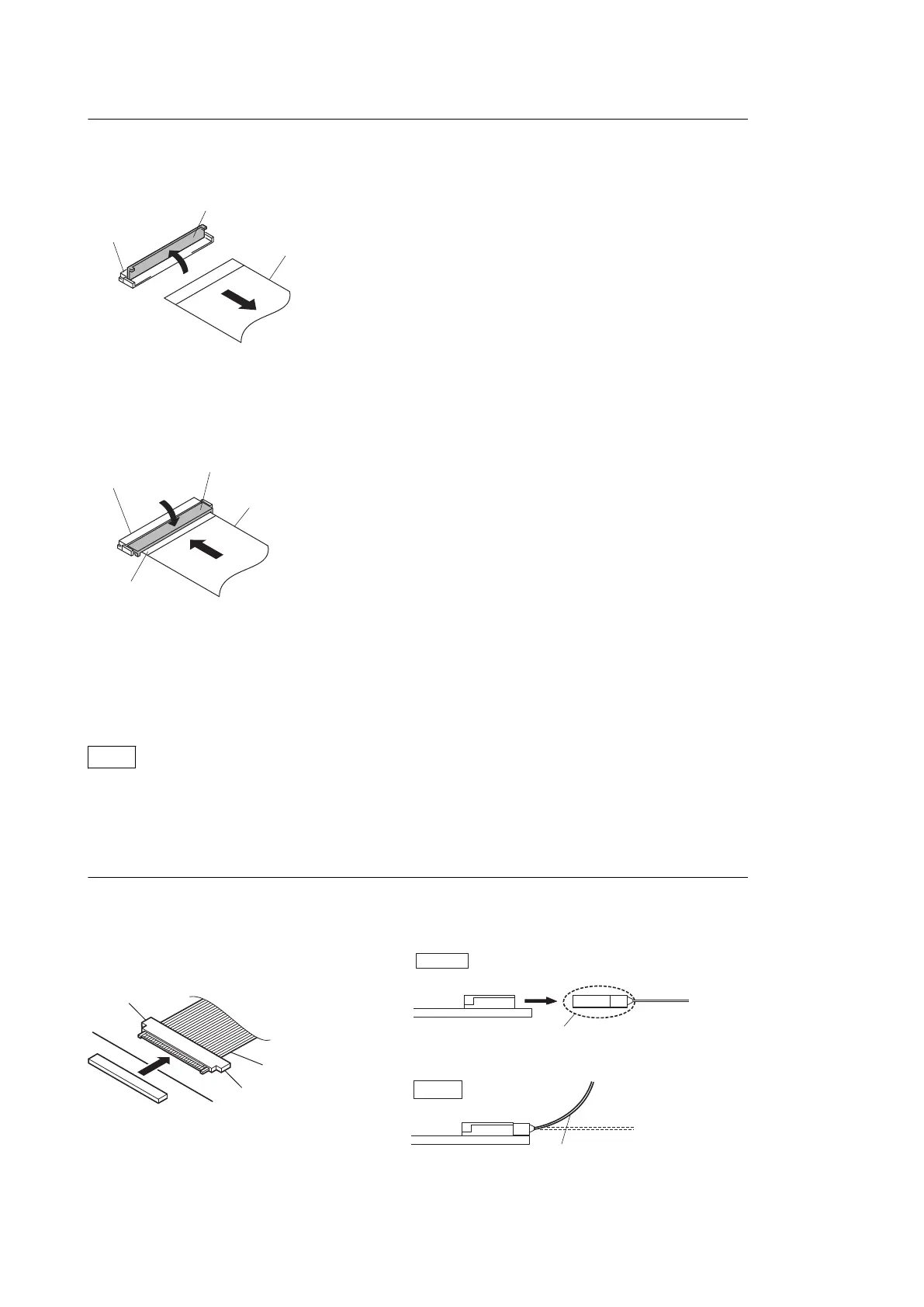

Type H
Disconnecting
A
Flexible flat cable
Connector
Latch
1. Open the latch of the connector in the direction of arrow A to unlock.
2. Disconnect the exible at cable.
Connecting
B
Flexible flat cable
Connector
Latch
Insulated side
1. Insert the exible at cable rmly as far as it will go with the insulated side up.
2. Close the latch of the connector in the direction of arrow B to lock the exible at cable.
1-8-2. Disconnecting/Connecting Fine-Wire Coaxial Cable
Note
• Be very careful when handling the fine-wire coaxial cable so that fine wires are not disconnected.
• When disconnecting the fine-wire coaxial cable, be sure to hold the connector. Do not attempt to pull the cable.
• Check that the contact surface of the fine-wire coaxial cable connector is not contaminated.
Type A
Disconnecting
Correct
Wrong
Hold the connector to disconnect.
Do not attempt to disconnect by
pulling the cable.
Connector
Connector
Fine-wire coaxial cable
1. Hold both sides of the fine-wire coaxial cable connector, and pull the connector straight to disconnect it.
HDCU3500/HDCU5500
1-20
