Sony HDCU5500 Service Manual

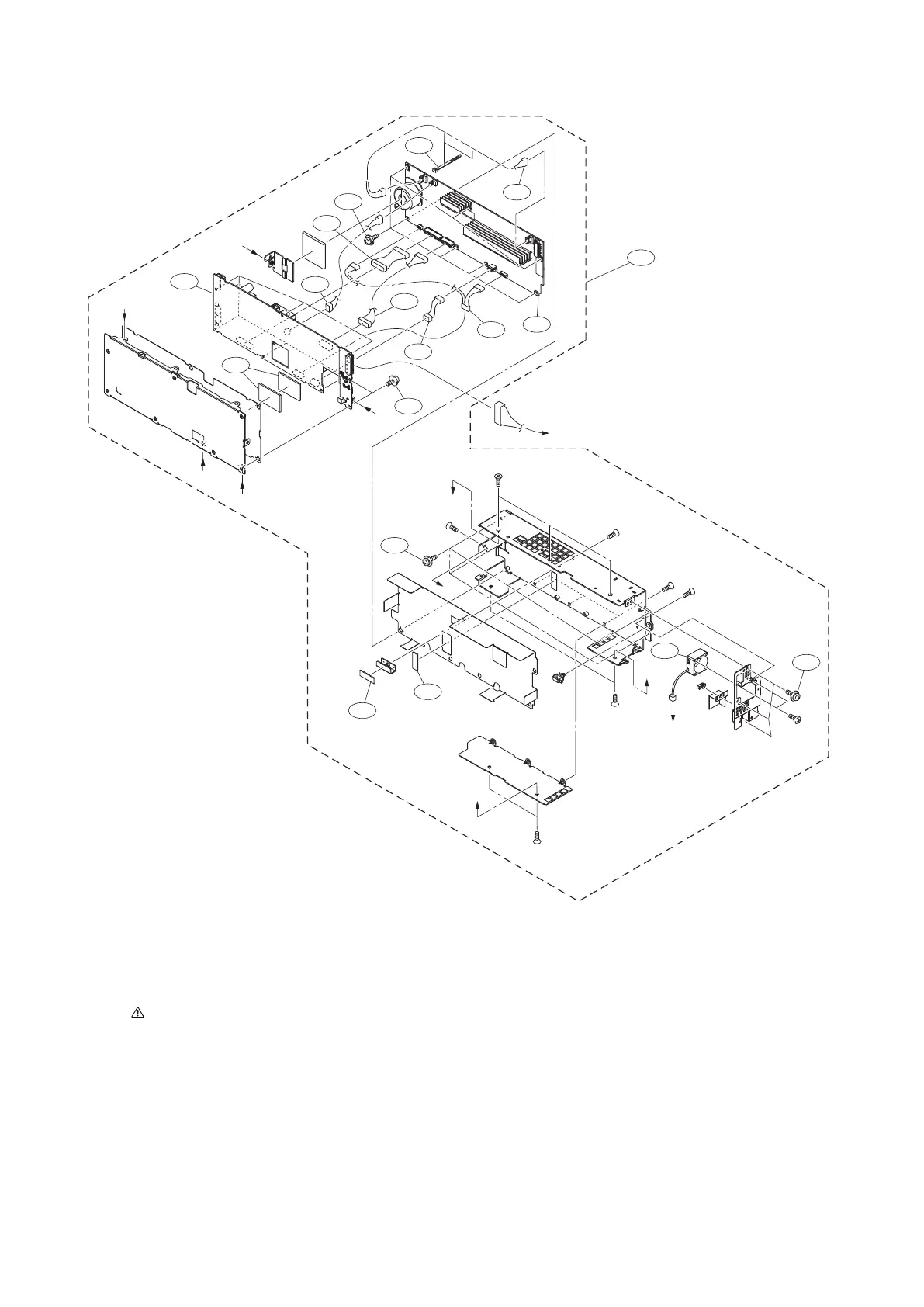

Power Block
K3 x 6
K3 x 6
K3 x 6
K3 x 6
K3 x 6
K3 x 6
K3 x 6
To VIF-75 board
A
B
D
B
D
P2 x 6
a
C
C
a
A
603
605
611
602
609
608
613
613
604
612
612
612
601
614
607
606
612
610
No. Part No. SP Description
601 A-2218-257-A s RE-345 COMPL
602 A-2218-360-A s PS-939 MOUNT
603
!
A-5003-492-A s POWER ASSY H
604 1-855-096-31 s DC FAN
605 1-972-266-11 s SUB HARNESS AC
606 1-972-267-11 s SUB HARNESS HV
607 1-972-268-11 s SUB HARNESS SECONDARY F
608 1-972-269-11 s SUB HARNESS PFC
609 1-972-270-11 s SUB HARNESS PRIMARY SIGNAL
610 1-972-271-11 s SUB HARNESS SECONDARY R
611 3-655-653-01 s BAND (TAITON), BINDING
612 4-382-854-51 s SCREW (M3X6), P, SW (+)
613 4-427-952-02 s RADIATION SHEET D
614 4-462-217-02 s SHEET (H), RADIATION
No. Part No. SP Description
7-627-554-27 s SCREW, PRECITION +P 2X6 TYPE1
7-682-247-04 s SCREW +K 3X6
HDCU3500/HDCU5500
7-8
