2-10. DC Fan (60 Square)
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
Procedure

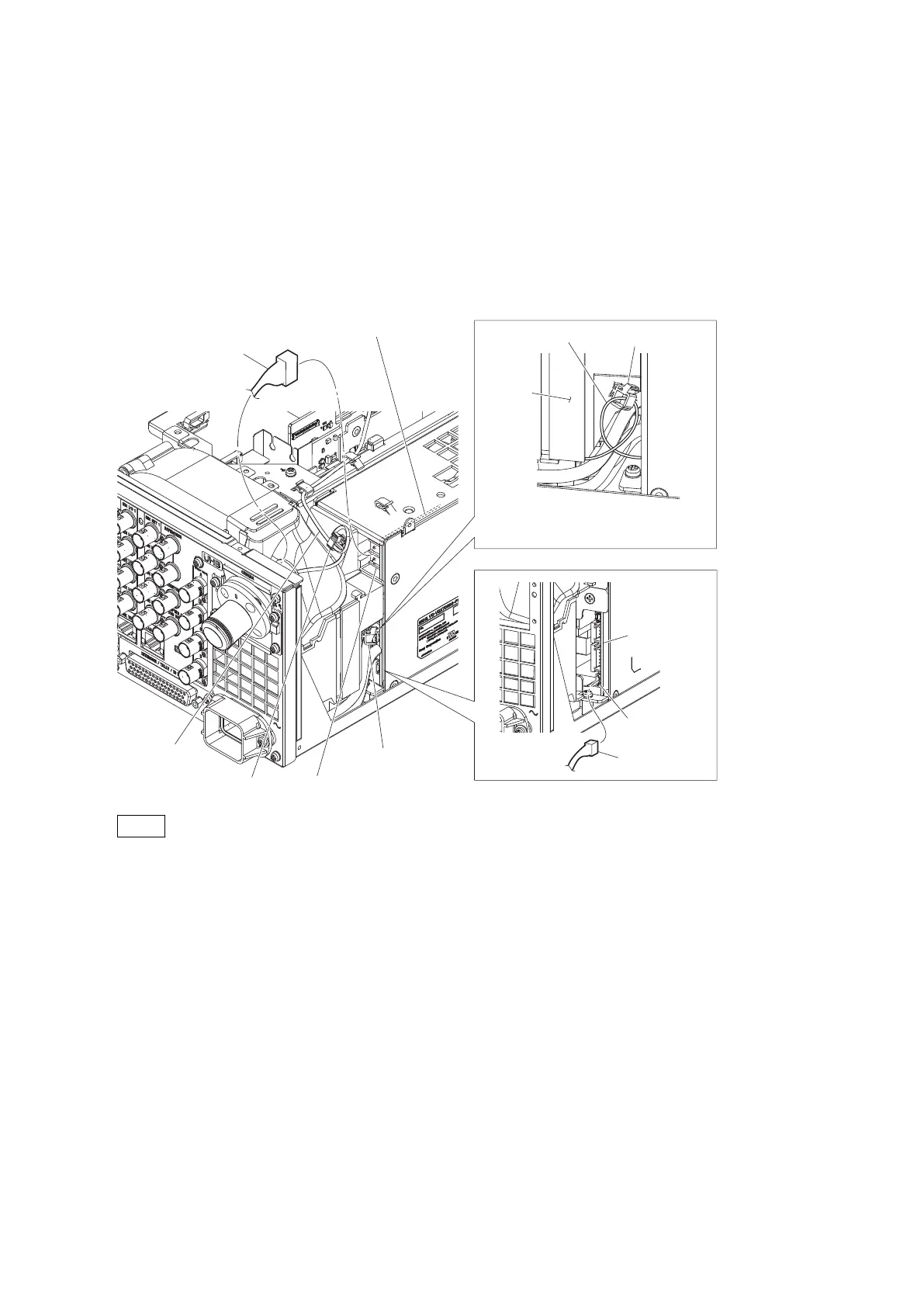

1. Open the cable clamp, and then remove the harness.
2. Disconnect the harness from the connector (CN2003) on the RE-345 board.
3. Open the wire saddle, and then remove the harness.
Wire saddle
Cable clamp
CN3002
Harness
Harness
RE-345 board
Duct PS
Wire saddle
Wind the harness in a ring shape
one time, pass the harness
through the wire saddle, and lock it.
Harness
Harness
CN2003
RE-345board
Note
• When connecting the harness, wind the harness in a ring shape one time as shown in the figure, and then lock
the wire saddle.
• Check that the harness of the DC fan (60 square) is not located outside of the duct PS.
HDCU3500/HDCU5500
2-21
