2-4. Optical Multi Fiber Cable
2-4-1. LEMO Connector Assembly
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
Procedure
1. Disconnect the optical cable.
Note
Do not pull the optical cables strongly or bend them so as not to damage them.
(1) Disconnect the harness from the connector (CN402) on the SY-467 board.
(2) Open the cable clamp [A], and then remove the harness from the two clamps.
(3) Open the cable clamp [B], and then remove the optical cable from the four clamps.
(4) Pull out the optical cable from the optical module (SFP).

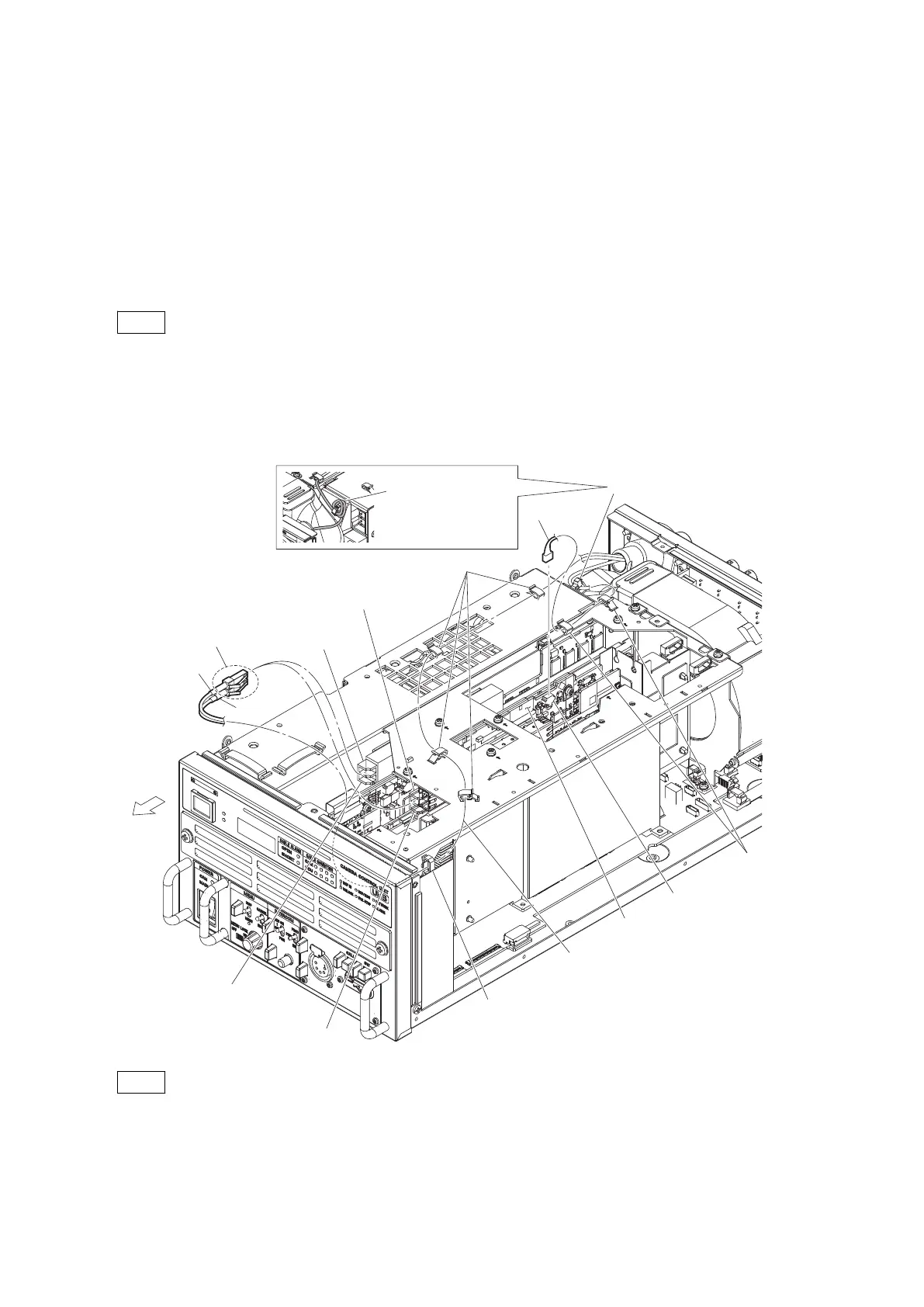

Front side
Harness
Optical cable
Clamps
Optical cable
Clamps
Cable clamp [B]
Cable clamp [A]
Wind the harness
around the cable
clamper [A] two times.
Optical module (SFP)
(For HDCU3500)
Optical module (SFP)
(For HDCU5500)
[1]
[2]
SY-467 board
CN402
CN402/VIF-75 board
CN201/TX-167B board
Note
• When attaching the optical cable, be careful not to mistake the connector.
• The connection destination of HDCU3500 is different from that of HDCU5500. When connecting them, be
careful not to connect to the wrong destination.
• When connecting the harness, wind the harness around the cable clamper [A] two times.
HDCU3500/HDCU5500
2-9
To Next Page
