2-15-2. HIF-76 Board
Tip
The following part cannot be reused. When replacing the fine-wire coaxial cable, use the new one.
• Tape AS
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the DC fan. (Refer to “2-9. DC Fan”.)
3. Remove the AC inlet. (Refer to “2-13. AC Inlet”.)
4. Remove the rear panel assembly. (Refer to “2-15-1. Rear Panel Assembly”.)
Procedure

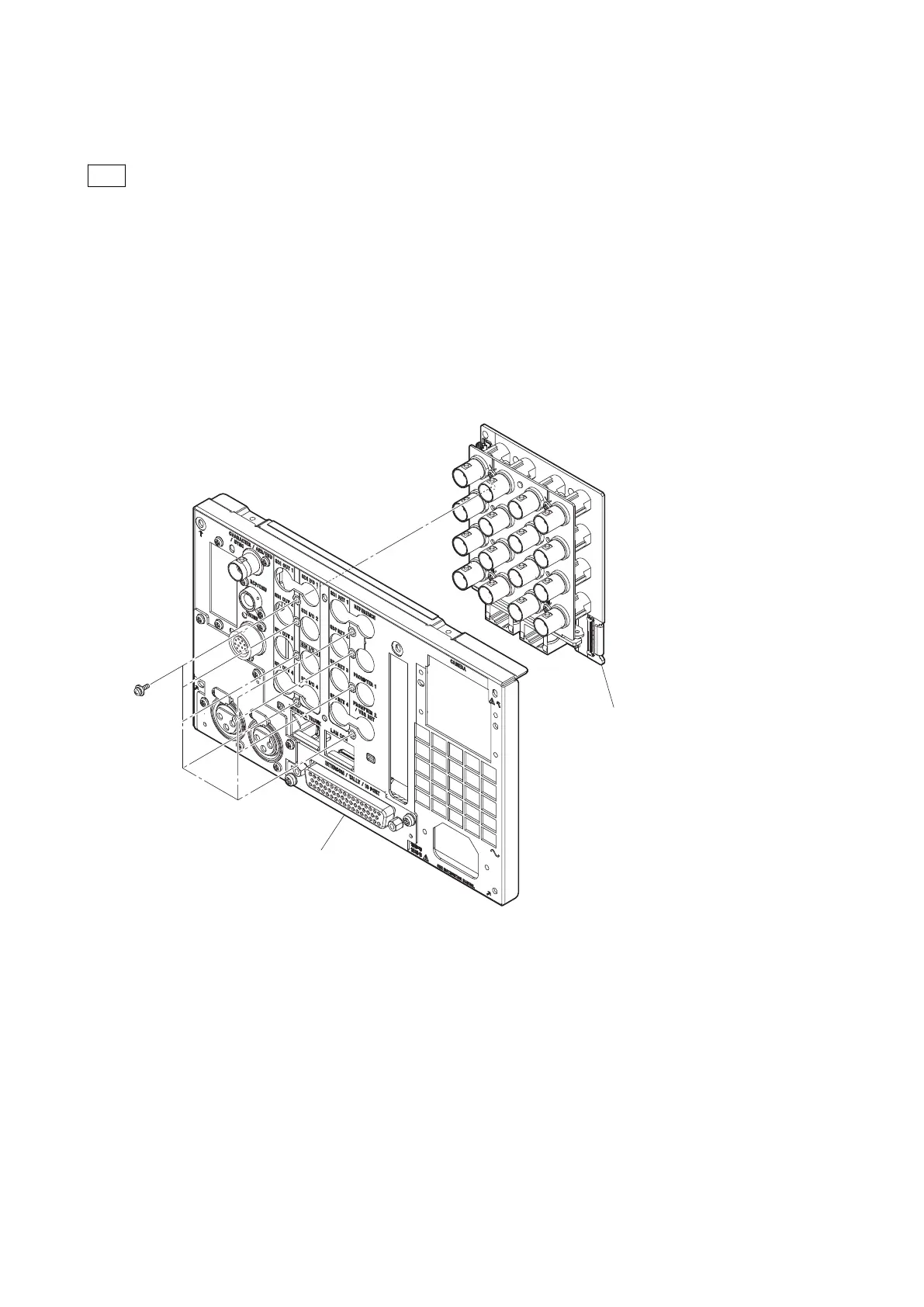

1. Remove the eight screws, and then remove the HIF-76 board subassembly.
P2.6 x 5
Rear panel assembly
HIF-76 board subassembly
HDCU3500/HDCU5500
