2-12-4. PS-939 Board
Required tool: Nipper
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the front panel assembly. (Refer to “2-3-1. Front Panel Assembly”.)
3. Remove the optical multi fiber cable. (Refer to “2-4. Optical Multi Fiber Cable”.)
4. Remove the DC fan. (Refer to “2-9. DC Fan”.)
5. Remove the DC fan (60 square). (Refer to “2-10. DC Fan (60 Square)”.)
6. Remove the power assembly. (Refer to “2-12-1. Power Assembly”.)
7. Remove the power top assembly. (Refer to step 1 in “2-12-2. RE-345 Board”.)
Procedure
1. Disconnect the four harnesses from the connectors (CN104, CN105, CN1003 and CN2002) on the PS-939 board.
2. Cut the two binding bands using the nipper.
3. Disconnect the harness from the connectors (CN101 and CN103) on the PS-939 board.
4. Remove the screw (K3 x 6), and then remove the PS coil holder.
5. Remove the radiation sheet (45 x 45) T4.
6. Remove the seven screws (PSW3 x 6), and then remove the PS-939 board.
7. Remove the radiation sheet D.

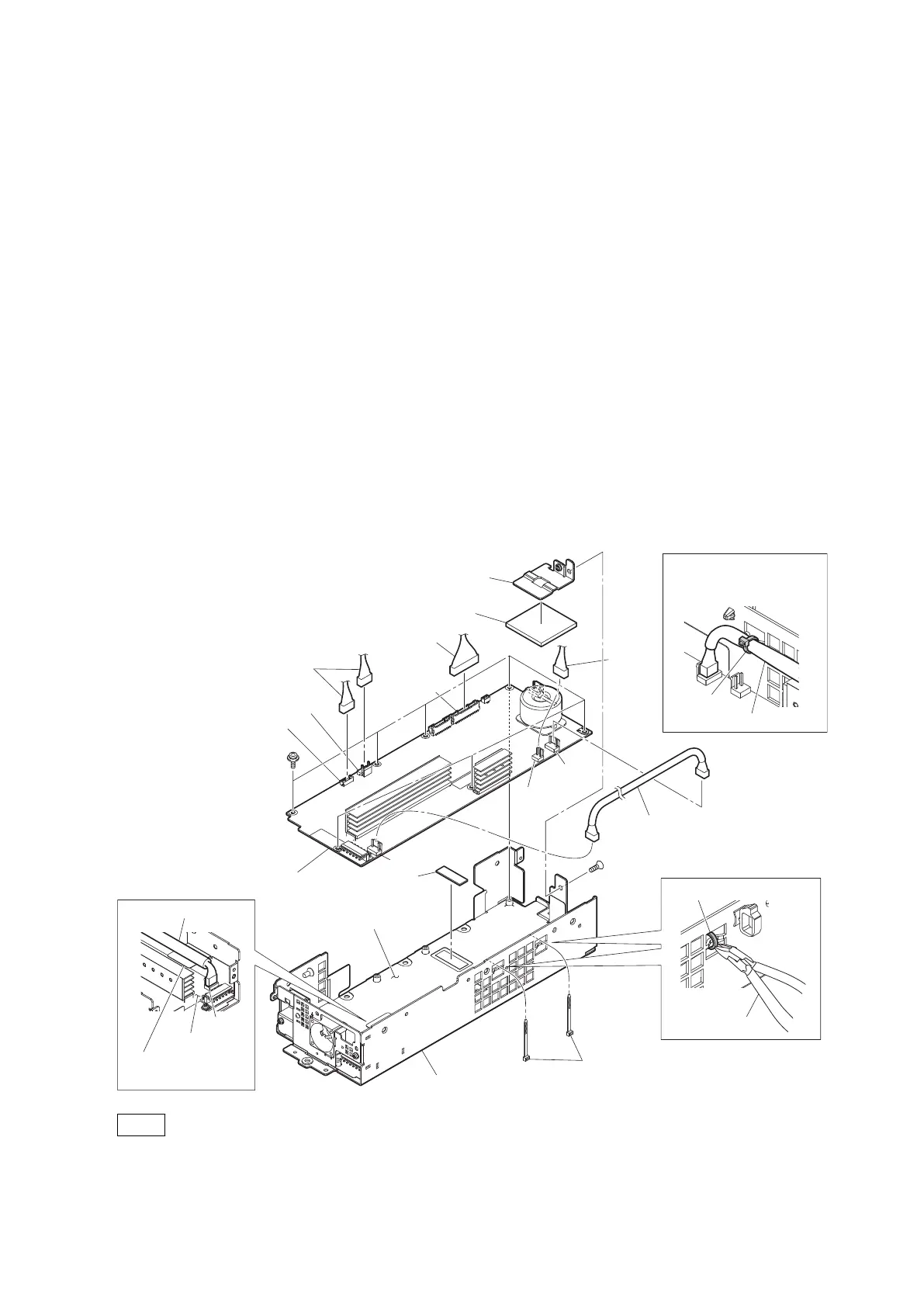

PS-939 board
PS-939 board
Radiation
sheet D
Insulating sheet (PS-A)
Bottom case (PS)
CN104
CN101
CN101
(a)
(b)
Harnesses
Harness
PS coil holder
Radiation sheet (45 x 45) T4
Harness
Harness
Cut the remaining part of the
binding band by which the
harness was fixed.
Harness
Binding
band
Binding bands
CN105
CN1003
CN103
CN2002
K3 x 6
PSW
3 x 6
Binding band
Nipper
Put the harness on the
insulating sheet (PS-A).
Harness
Note
When installing the PS-939 board, tighten the screws in the following sequence: (a), (b) and others.
8. Install the removed parts by reversing the steps of removal.
