Sony HDCU5500 Service Manual

2-3-5. LE-429 Board
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the front panel assembly. (Refer to “2-3-1. Front Panel Assembly”.)
Procedure

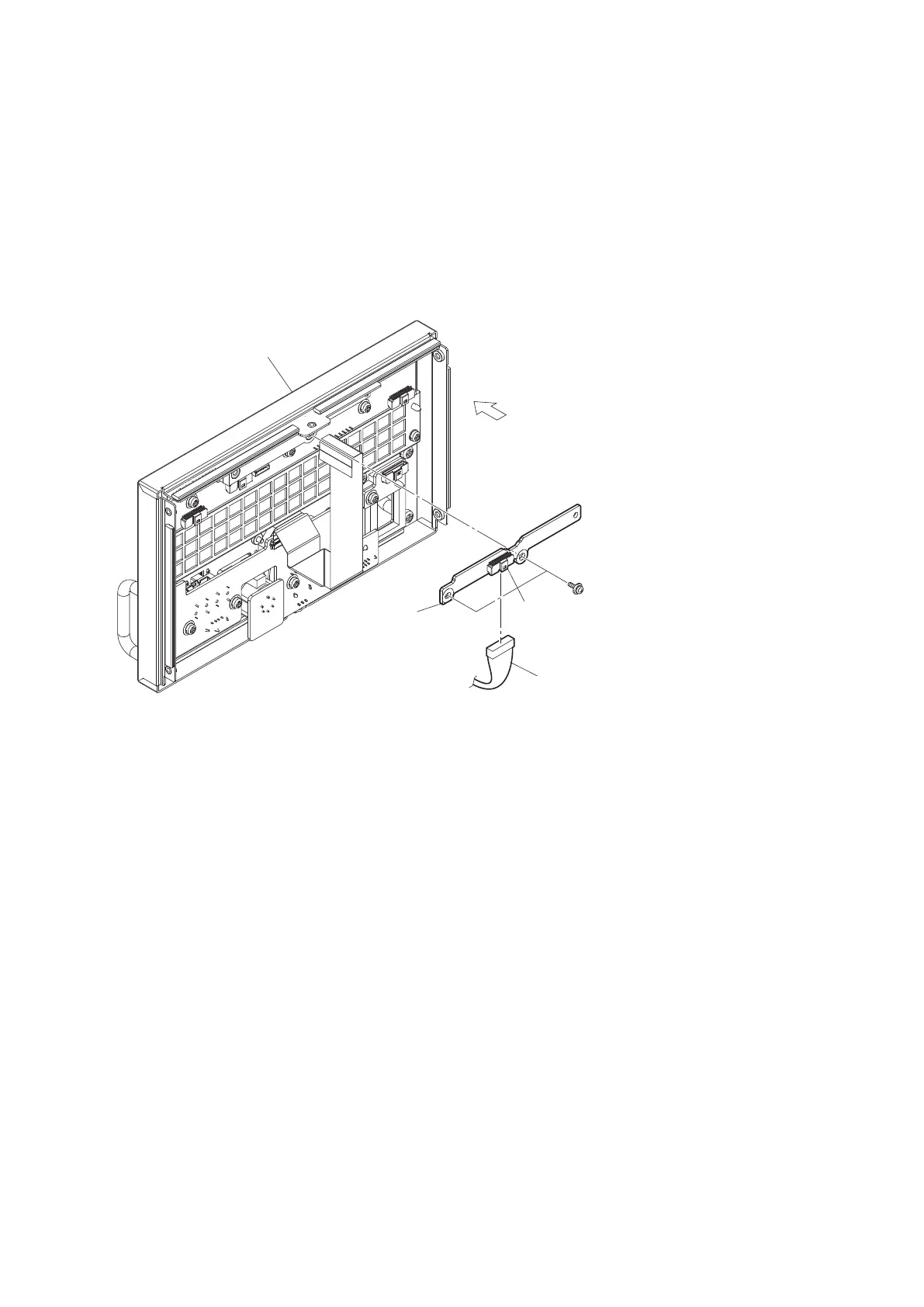

1. Disconnect the harness from the connector (CN001) on the LE-429 board.
2. Remove the two screws, and then remove the LE-429 board.
Front side
PSW
3 x 8
Front panel assembly
LE-429 board
Harness
CN001
3. Install the removed parts by reversing the steps of removal.
HDCU3500/HDCU5500
2-7
