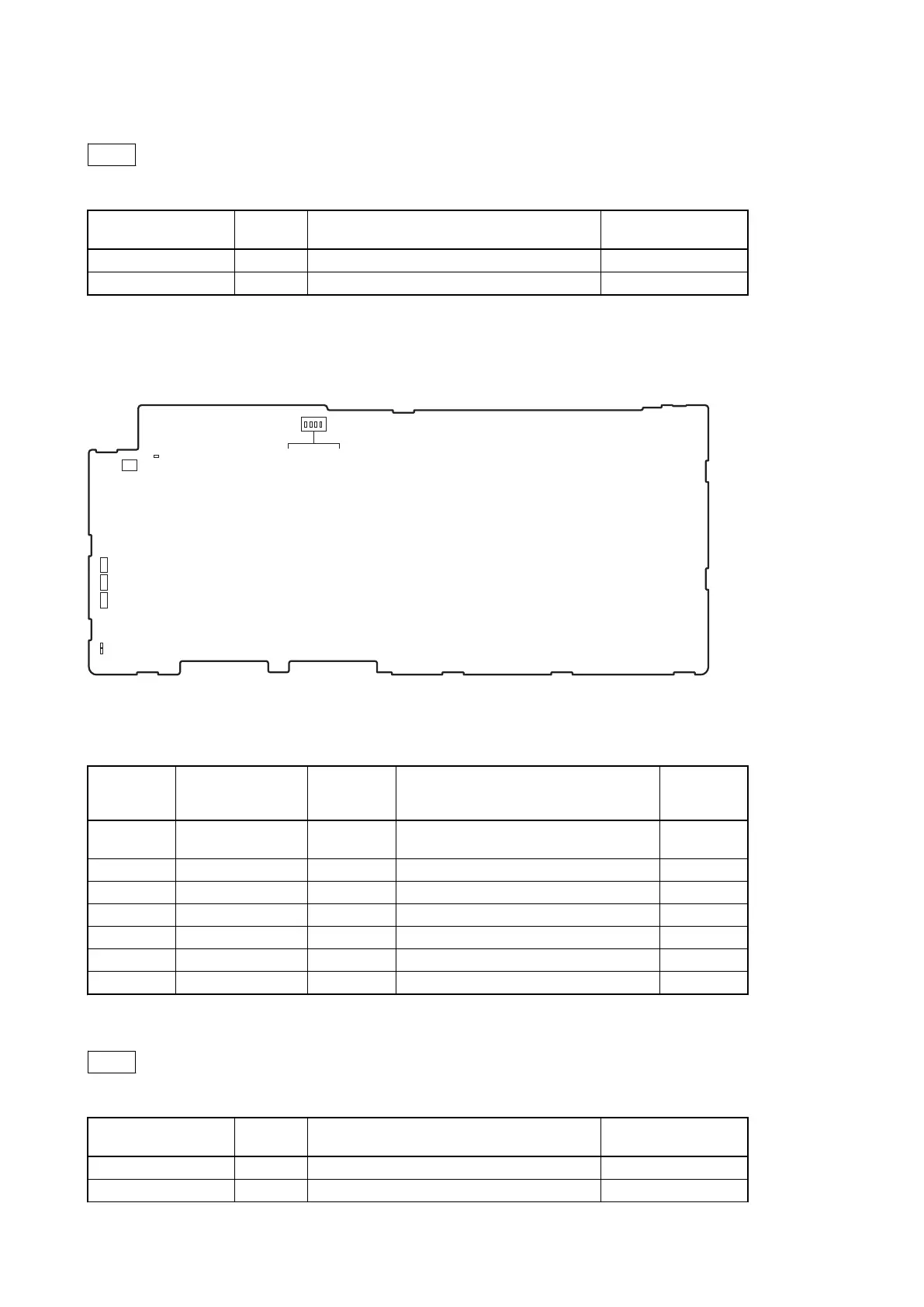

Sony HDCU5500 Service Manual

Switch
Note
Do not change the setting of “Factory use” switch.
Ref. No. Bit Function Factory default set-
ting
S2101 1-4 Factory use OFF (ALL)
S2300 1 Factory use OFF
1-2-7. ENC-185 Board
D811
D813
D814
D1701 D1702 D1703 D1704
S812
S901
S902
S1801
EMC-185 Board (B Side)
LED
Ref. No. Name Color Description Normal
State
(Power On)
D811 PS_DONE Red This LED goes out when ENC1_FPGA (IC001) is
normally completed configuration.
OFF
D814 PS_ERRORSTATUS Red Factory use Inconstant
D814 PS_ERROR_OUT Red Factory use Inconstant
D1701 LED0 Green Factory use Inconstant
D1702 LED1 Green Factory use Inconstant
D1703 LED2 Green Factory use Inconstant
D1704 LED3 Green Factory use Inconstant
Switch
Note
Do not change the setting of “Factory use” switch.
Ref. No. Bit Function Factory default set-
ting
S812 1 Factory use OFF
S901 1 Factory use OFF
Continued
HDCU3500/HDCU5500
1-7
