2-19-3. INCOM-REC Panel Assembly
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”)
2. Remove the optical cable. (Refer to step 1 in “2-4-1. LEMO Connector Assembly”)
3. Remove the ENC assembly. (Refer to “2-19-1. ENC Assembly”)
Procedure

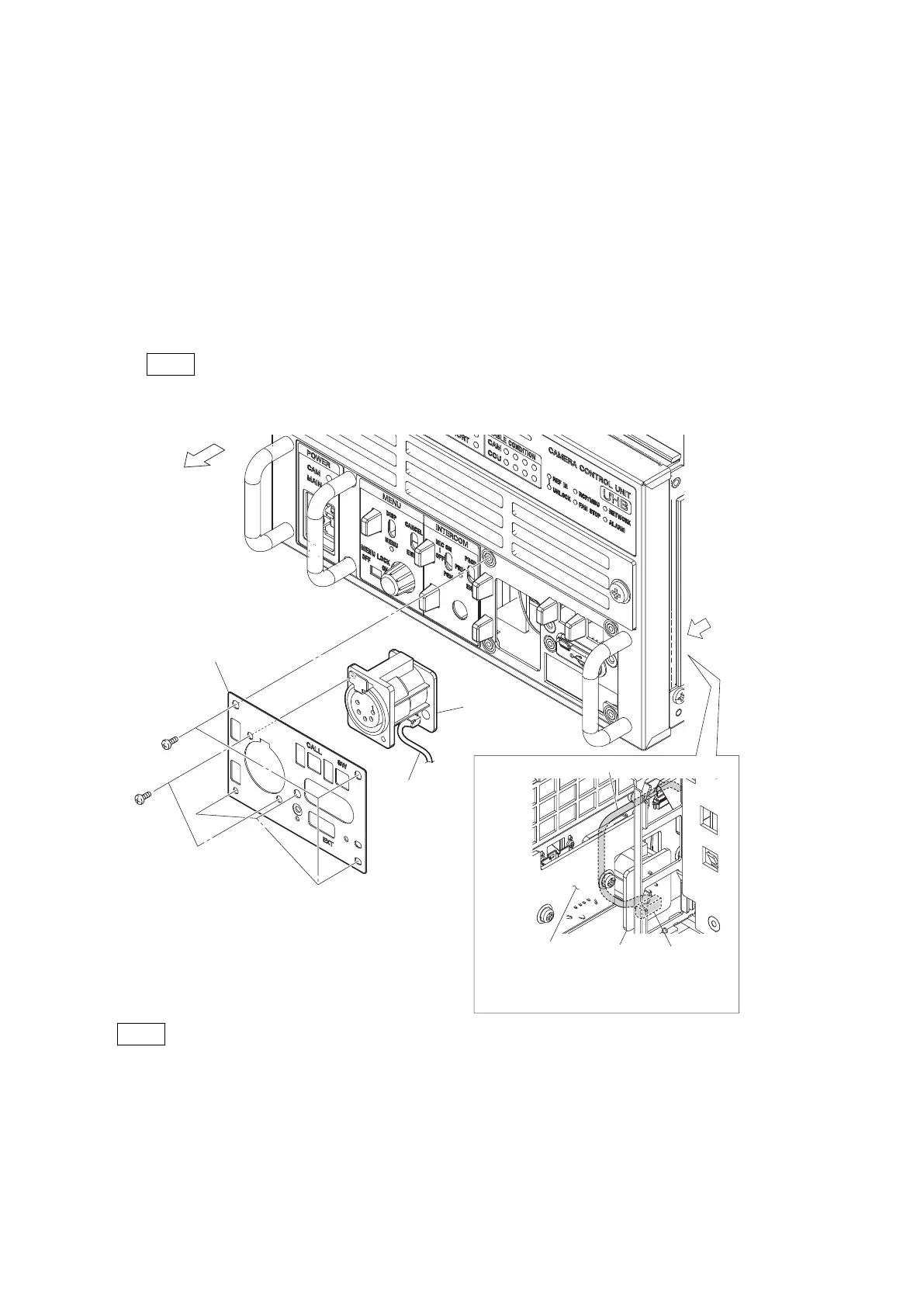

1. Remove the INCOM-REC panel assembly.
(1) Remove the five screws, then remove the INCOM-REC panel assembly.
(2) Remove the two screws, then remove the CN-4056 board.
Note
When attaching the INCOM-REC panel assembly, attach it so that the harness is routed inside of the FP-305
board.
Front side
P2.6 x 5
P2.6 x 5
INCOM-REC panel assembly
View on arrow A
Harness
CN-4056 board
A
CN-4056 boardFP-305 board
t
Process the harness of the CN-4056 board
so that it is routed inside of the FP-305 board.
CN002
Harness
(a)
(b)
Note
When attaching the INCOM-REC panel assembly, tighten the screws in the following sequence: (a), (b) and others.
2. Install the removed parts by reversing the steps of removal.
HDCU3500/HDCU5500
2-56
To Next Page
