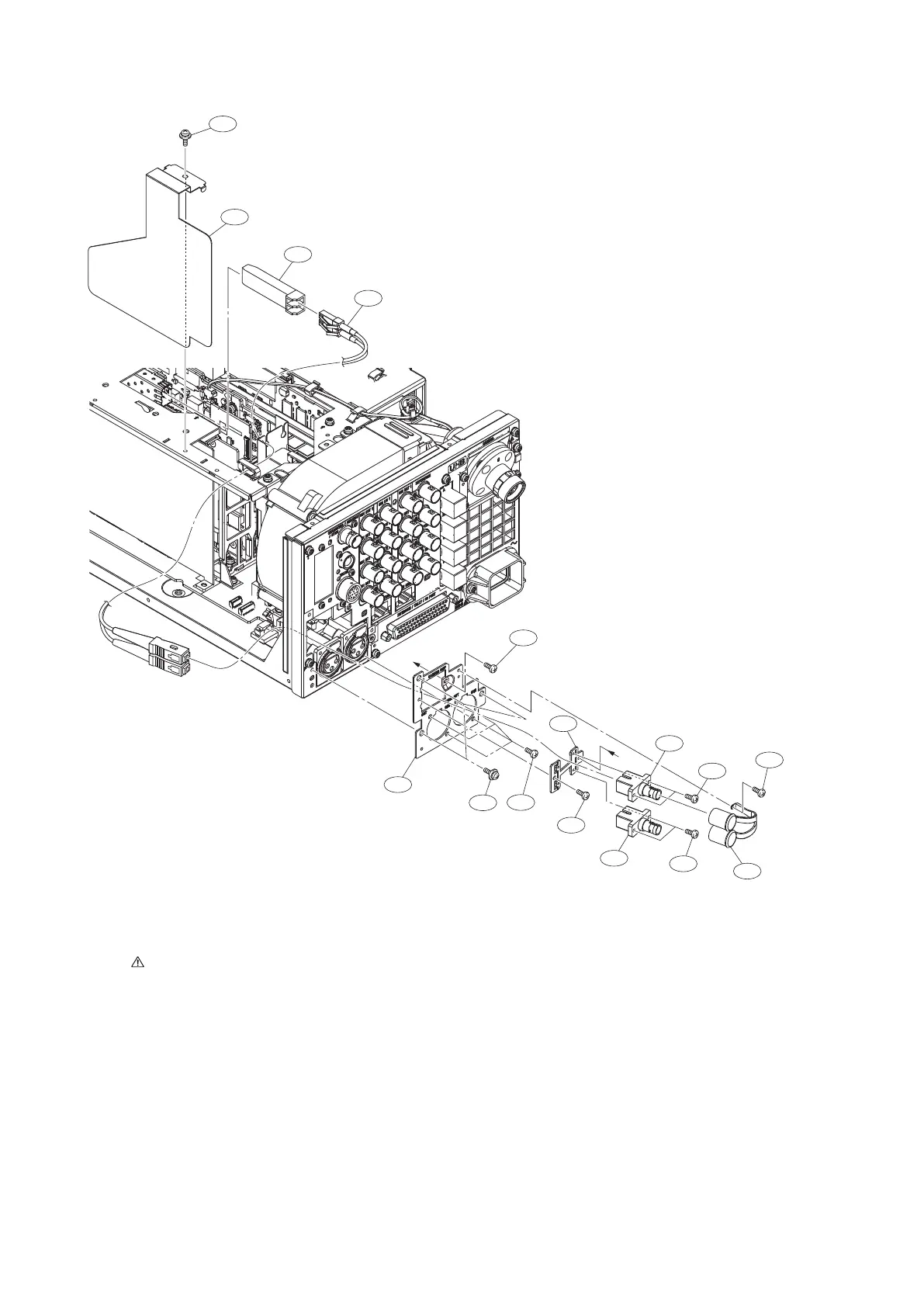

No. Part No. SP Description
1
!
1-510-039-11 s OPTICAL MODULE
2 1-843-839-11 s SC-ST OPTICAL FIBER ADAPTOR
3 1-849-778-11 s SC-LC OPTICAL FIBER CABLE
4 3-719-381-22 s SCREW (M2X6)
5 4-382-854-01 s SCREW (M3X8), P, SW (+)
6 4-559-446-02 s SCREW, +P2.6X5 NEW TRUSTER
7 4-579-333-01 s CAP, ST CONNECTER
8 5-002-721-01 s SHEET (FIBER), COVER
9 5-004-992-01 s PANEL, SMF
10 5-004-993-01 s BRACKET, SMF
