Stiga PARK PRO 340 IX User Manual

Edition
2018
Workshop Manual
PARK PRO 340 IX
Chapter
2 Frame and safety guards
Page
16

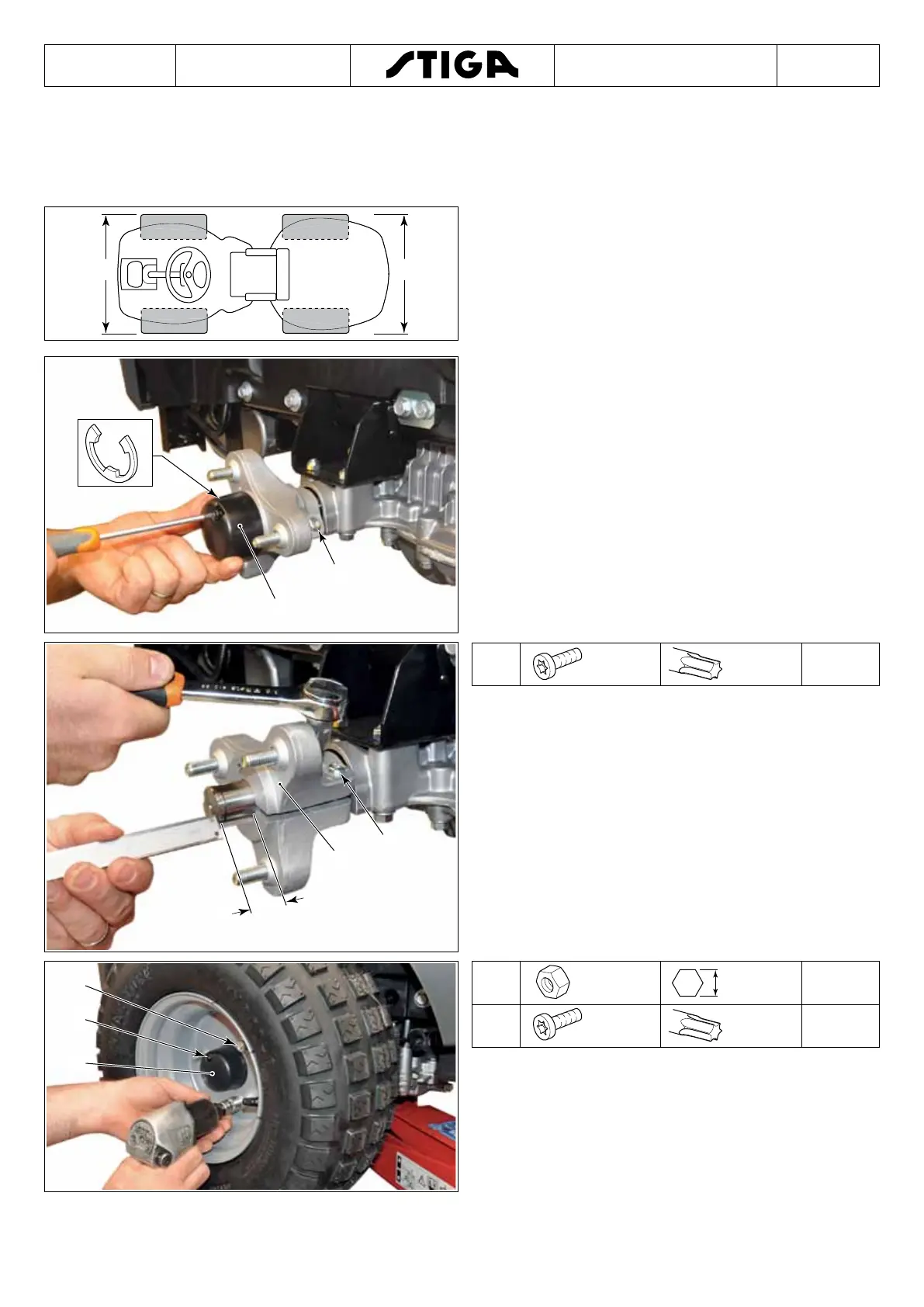

2.1 Rear wheels
2.1.1 Hub adjustment and wheel installation (standard position)
A B
NOTE: If the measurements (A) and (B) between
the front and back wheels are not identical,
the machine will have steering problems.
B
A
C (2x)
1. Lift the machine using a jack.
2. Remove the wheel.
3. Remove the hubcap (A) and the stop
ring (B).
4. Slacken the screws (C).
C (2x)
D
Y
20 mm
C
M8 T40 20÷25 Nm
5. Slide the hub (D) along the axle and position
at a height (Y) of 20 mm.
6. Tighten the screws (C).
Installation of wheel when snow chains are
used.
To ensure that the chains do not rub against
structural parts of the machine it may be necessary
to reduce the distance (Y); this distance my be
reduced until the hub (D) rests on the stop ring
(B).
A
E
F
E
M10 16 mm 28 Nm
F
M5 T40 3÷4 Nm
7. Replace the stop ring (B).
8. Remove the hubcap (A).
9. Tighten the screw (F).
10. Replace the rear wheel.
11. Tighten the wheel nuts (E).
