Stiga PARK PRO 340 IX User Manual

Edition
2018
Workshop Manual
PARK PRO 340 IX
Chapter
2 Frame and safety guards
Page
23

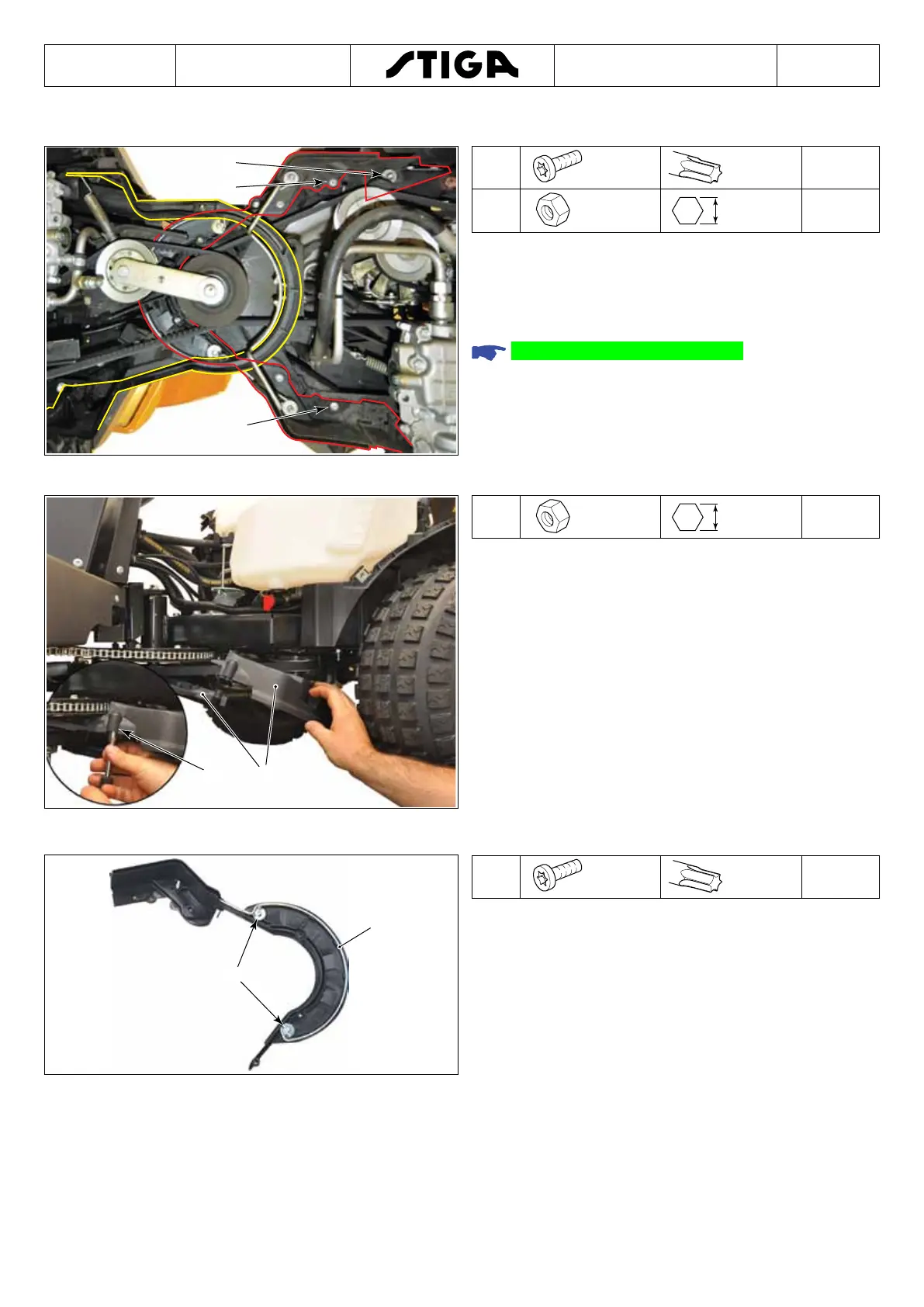

Rear articulated joint guard
B
C
B
B
M6
T30 4÷5 Nm
C
M6 10 mm 5÷6 Nm
(seen from below)
NOTE:to remove the rear articulated joint
guard you must rst remove the front guard.
Front articulated joint guard.
1. Undo the screws (B).
2. Unscrew the nut (C).
D E
D
M6 10 mm 5÷6 Nm
3. Unscrew the nut (D) from below.
4. Remove the two parts of the guard (E).
F
G
F
M6 T30 4÷5 Nm
5. To replace the rear bottom guard, undo the
screws (F) and remove the stiffening ring (G).
Install the ring on the new guard.
To reassemble the various parts, repeat the operations in reverse order.
