Stiga PARK PRO 340 IX User Manual

Edition
2018
Workshop Manual
PARK PRO 340 IX
Chapter
2 Frame and safety guards
Page
26

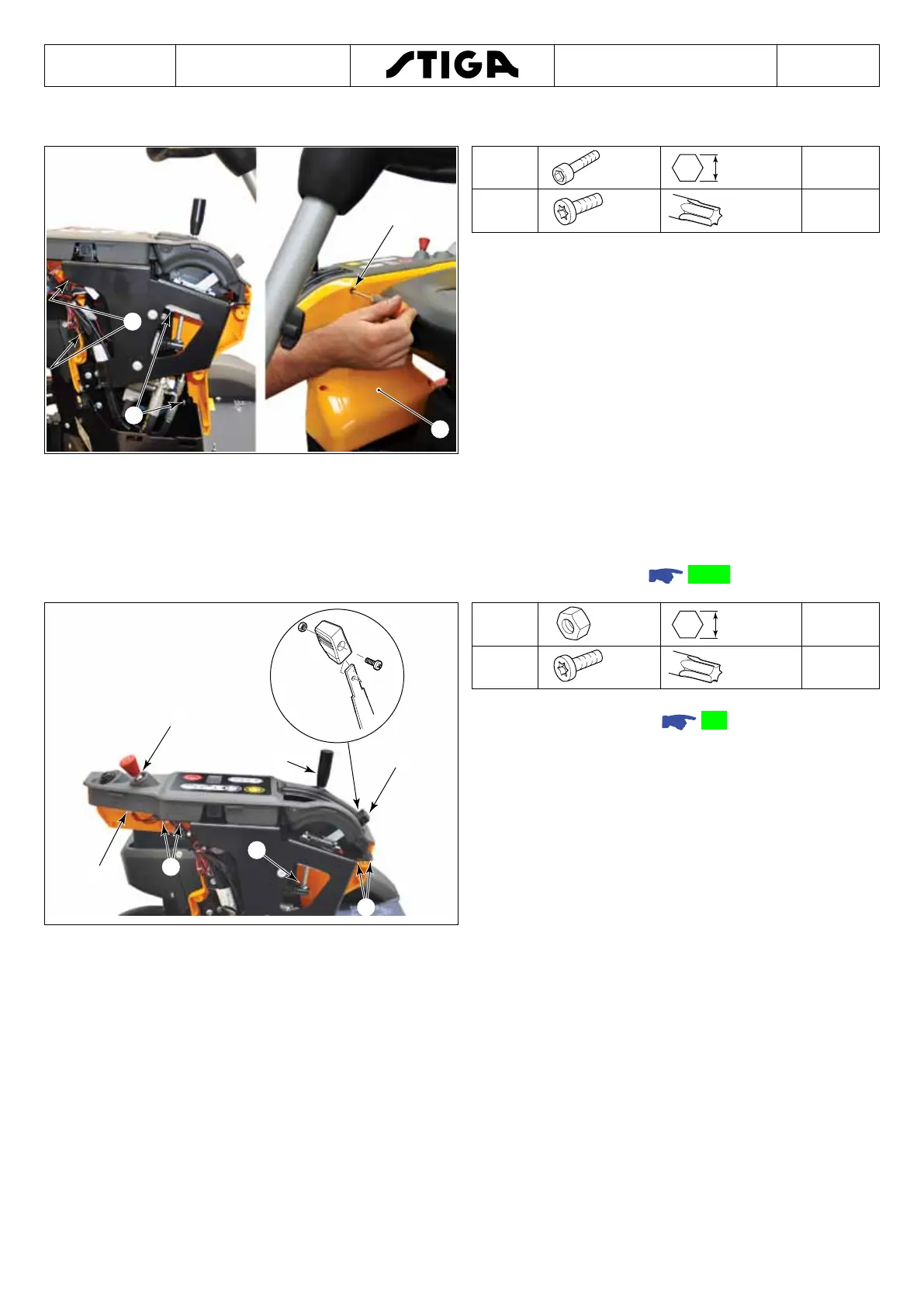

Internal dashboard casing
A
A
B
C
A
M6 8 mm 3÷4 Nm
B
M5 T25 3÷4 Nm
1. Undo the 4 screws (A).
2. Undo the screw (B).
3. Remove the internal guard (C).
To reassemble the various parts, repeat the operations in reverse order.
2.3.7 Dashboard
The dashboard mask is removed mainly to inspect the electronic board or to replace it.
To remove the dashboard mask rst remove the dashboard casings
2.3.6.
A
E
B
D
C
F
F
B
M8 13 mm 4÷5 Nm
F
M5 T20 3÷4 Nm
1. Remove the choke control (A). See the
relative instructions
6.4.
2. Slacken the nut (B) and unscrew the
lever (C).
3. Remove the throttle lever (D).
4. Disconnect the key switch connectors
(E).
5. Disconnect the electronic board
connectors.
6. Undo the 5 screws (F) and remove the
dashboard casing.
To reassemble the various parts, repeat the operations in reverse order.
