Stiga PARK PRO 340 IX User Manual

Edition
2018
Workshop Manual
PARK PRO 340 IX
Chapter
6 Control cables
Page
72

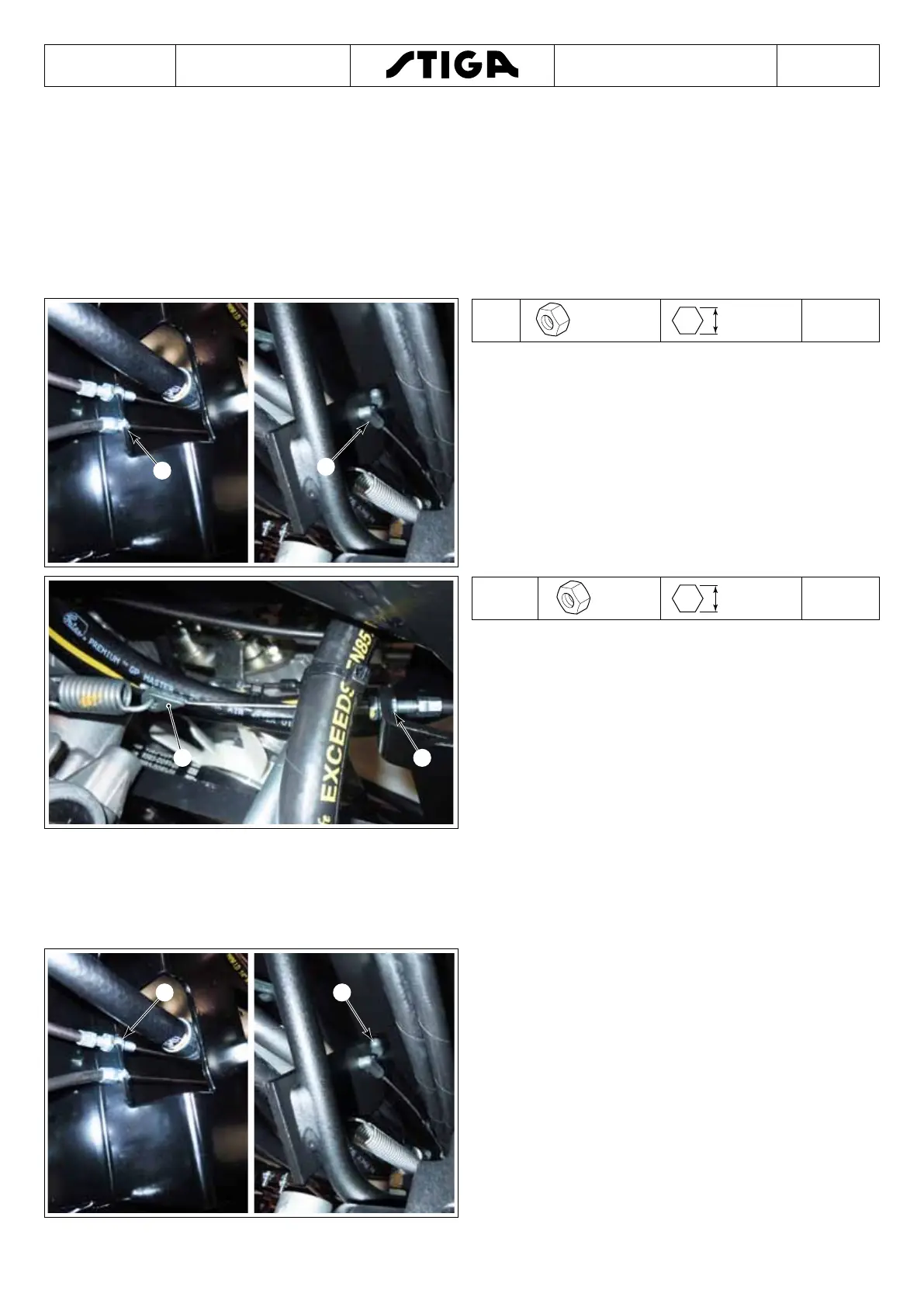

6.6 Parking brake cable and belt “C” tensioner control cable
6.6.1 Disassembling the parking brake cable
Note!
Pay particular attention to the cable assembling condition. This will ease
the assembling operation.
A
B
A
M8
10 mm 4 Nm
1. Under the brake pedal, slacken nut (A) and
withdraw the cable end from its support.
2. Release cable end (B) from the brake pedal
arm.
C
D
C
M8 10 mm 4 Nm
3. From the machine rear side, slacken nut (C)
and withdraw the cable end from its support.
4. Release the cable end (D) from the spring.
5. withdraw the cable from the machine.
6.6.2 Disassembling belt “C” tensioner control cable
Note!
Pay particular attention to the cable assembling condition. This will ease
the assembling operation.
A B
1. Under the brake pedal, slacken adjustment
nut (A) from its support and release cable end
(B) from the brake pedal arm.
