Workshop Manual
PARK PRO 340 IX
Chapter
6 Control cables
Page
66

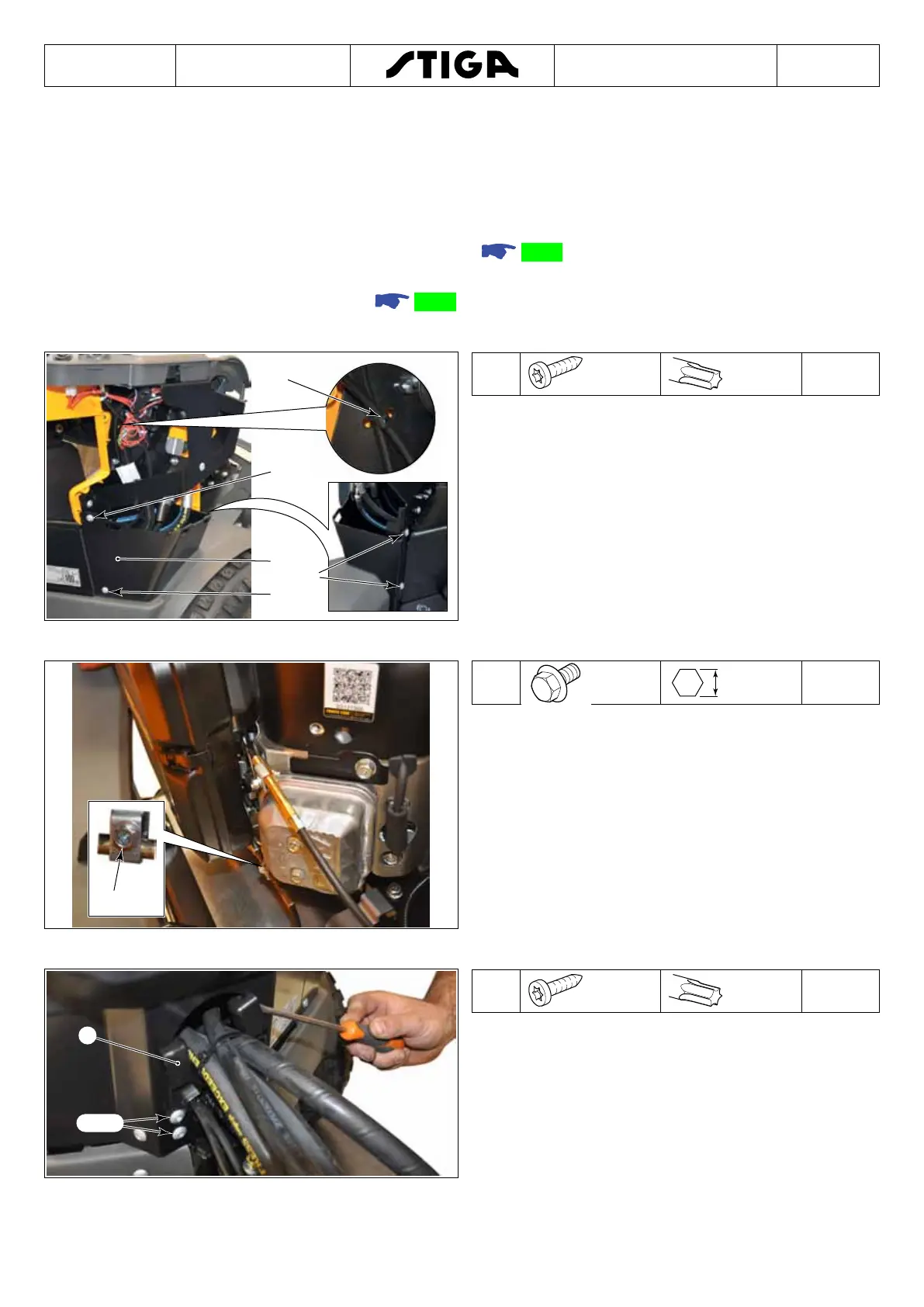

6.3 Accelerator cable
6.3.1 Disassembly
1. Remove the upper and lower engine guards.
2.3.1
2. Dismount the dashboard guard.
2.3.6
A
C
C
C
B
C
M6 T30 6 Nm
1. Cut the cable xing clamp (A) and take note of
its position for future assembling operations.
2. Remove the lower guard (B); slacken the four
screws (C).
D
D
M5 8 mm 4 Nm
3. Slacken the terminal screw (D) on the engine
rear side and release the sheath and the wire.
E
F (4x)
E
M6 T30 6 Nm
4. Slacken screws (E) and remove the cable
holder (F).
