Edition
2018
Workshop Manual
PARK PRO 340 IX
Chapter
7 Electrical system
Page
91
7.8 Check and replace the main power cord
IMPORTANT
For work on the electrical system and battery, carefully check that the positive
wires (red) are integral, that the insulation is not cracked or worn and that the
corrugated protection sheath is installed and correctly mounted to prevent cables
from being crushed by the battery housing after installation.
For machines prior to 2020 or, in any case, without corrugated protection sheath, this must
be installed following the instructions hereto.

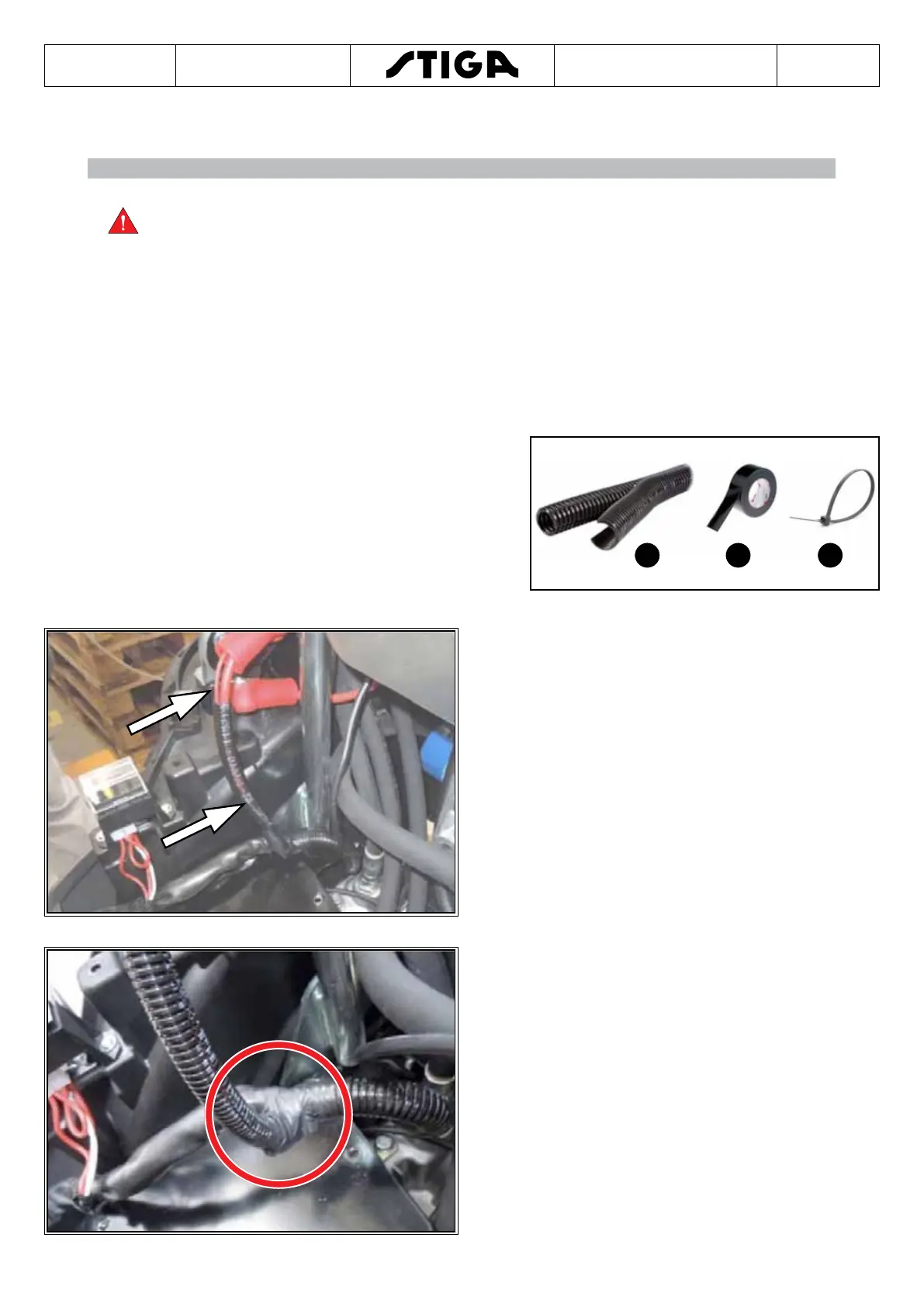

7.8.1 Protection sheath assembly
Needed Material:
a) Open corrugated sheath Ø 10 mm - length 150
mm
b) Duct tape
c) Cable tie
1. After having removed the fuel tank and
battery housing, wrap the 2 red wires
with the open corrugated sheath.
2. Secure the lower end of the corrugated
sheath to the main harness with duct
tape.
a b c
