Workshop Manual
PARK PRO 340 IX
Chapter
7 Electrical system
Page
81

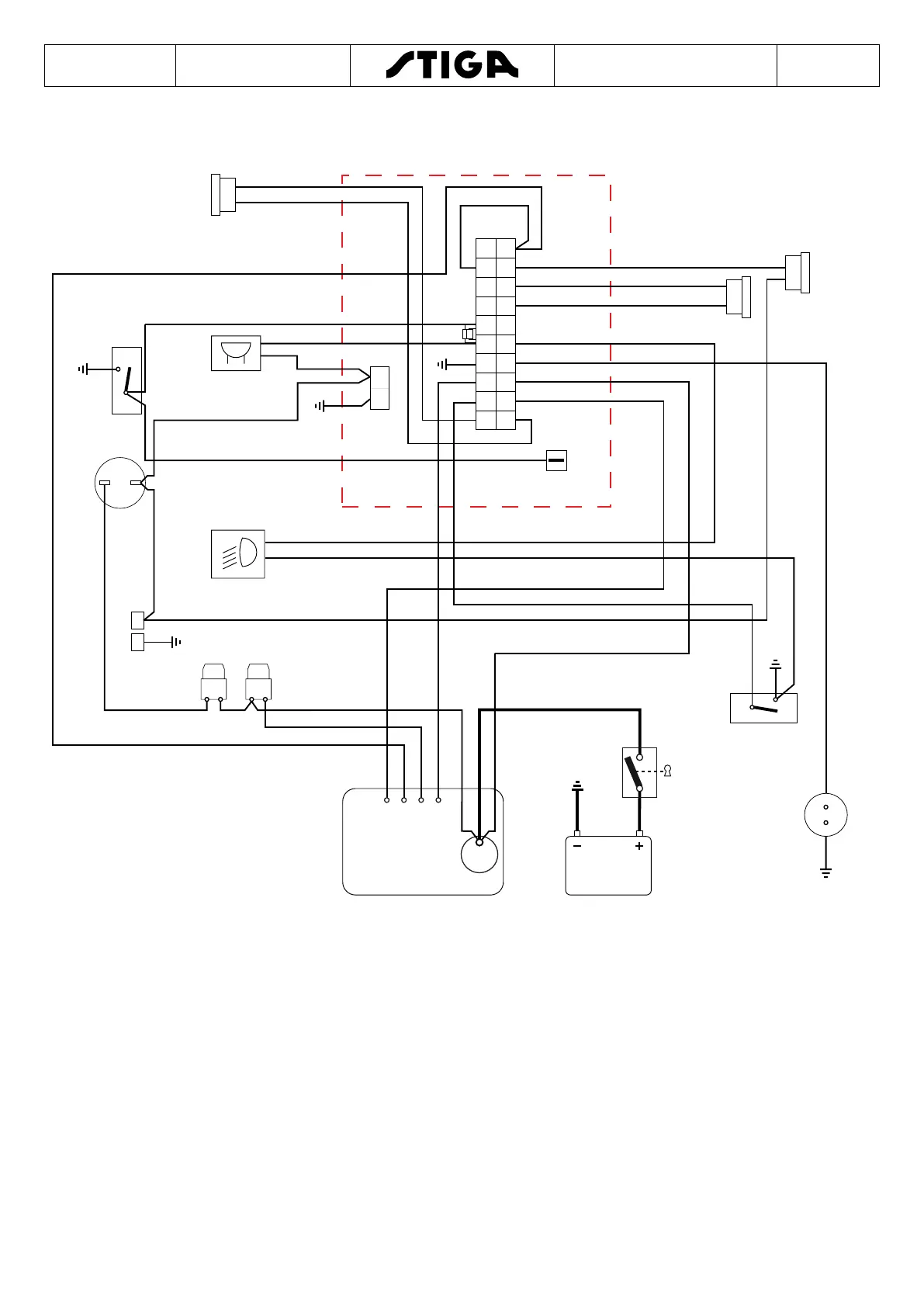

7.3.1 Electrical diagram
DIN3
CN2
CN1
CN3
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
BR
BL BL
BL
BL
WYWY
GY
GY
YW
YW
WH
WHWH
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
RGRG
RE
RE
RE
RE
RE
RD
RE
RE
BK
RE
RE
RE
RE
RE
RE
VI
VI
RE
RE
VI
BR
BR
BR
BR
OR
OR
OR
OR
VI
WH
7
1
9
5
10
11
15
2
4
12
6
a b c d
e
13a 13b
8
14
RE
RE
16
1 Electronic board.
2 Engine
2a Ignition
2b Stop
2c Generator
2d Oil sensor
2e Starter
4 Battery
5 Key ignition switc
6 Brake microswitch
7 Front accessorie
8 Rear accessories
9 Headlight
10 Seat microswitch/Operator’s presence
11 Horn
12 Clutch
13a 25 A fus
13b 20 A fuse
14 Sand spreader
15 Auxiliary accessoires
16 Main key switch
CABLE COLOURS
BK Black
BL Blue
BR Brown
GR Green
GY Grey
OR Orange
RE Red
VI Violet
WH White
YW Yellow
