Stiga PARK PRO 340 IX User Manual

Edition
2018
Workshop Manual
PARK PRO 340 IX
Chapter
2 Frame and safety guards
Page
25
E
F
D
C-D
M5 T25 4÷5 Nm

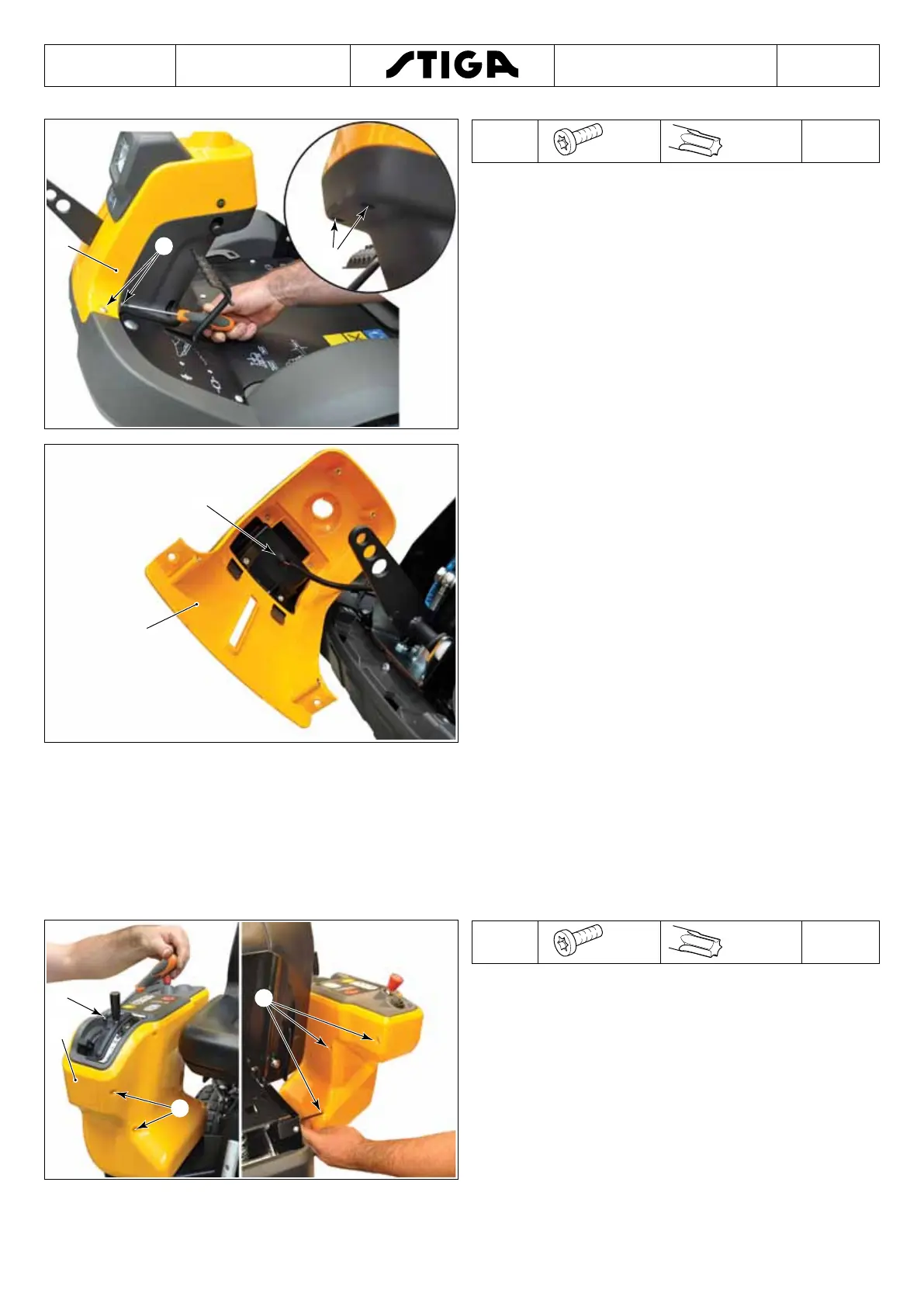

2. Undo the 2 screws (D) (one each side).
3. Undo the 2 screws (E).
4. Remove the front guard (F) by sliding it
up.
G
F
5. To completely remove the guard (F), unscrew
the headlamp connector (G).
To reassemble the various parts, repeat the operations in reverse order.
2.3.6 Dashboard casing
To access the leverages, electronic circuits, the diagnostics connector, the key block and
the instrumentation cables, remove the dashboard casing.
External dashboard casing
A
A
B
C
A-B
M5 T25 2÷3 Nm
1. Undo the 3 screws (A).
2. Tip the seat back.
3. Undo the screws (B).
4. Remove the external guard (C).
