Stiga PARK PRO 340 IX User Manual

Edition
2018
Workshop Manual
PARK PRO 340 IX
Chapter
6 Control cables
Page
64

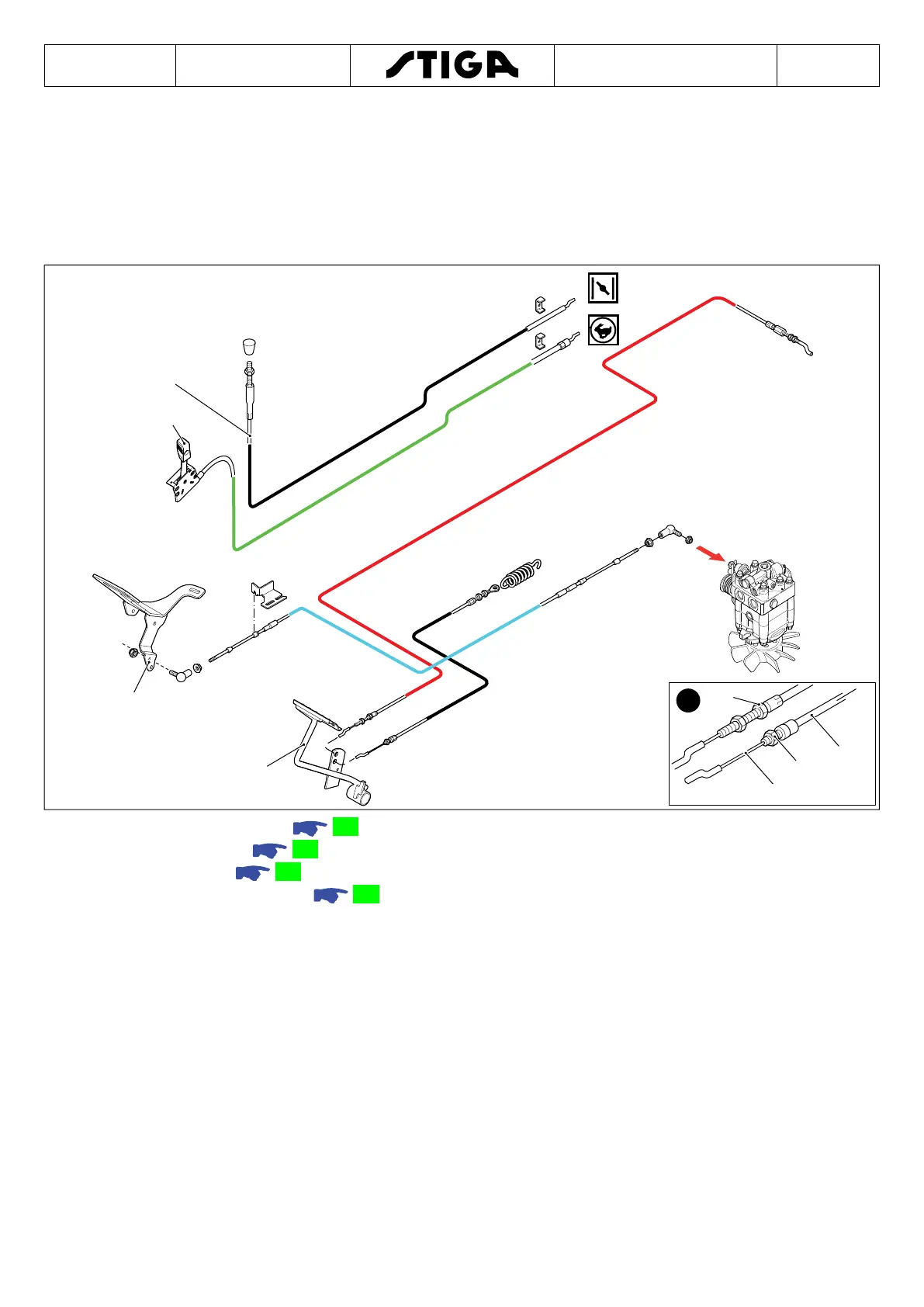

6.1 Description
All cables are made up of a wire and a sheath. One cable end is connected to the actuator,
(pump, carburettor etc.) the other end is connected to the control (pedal lever).
In most cases the cable ends are equipped with adjusting terminals with locking nuts and/
or elbow unions.
B
D2
D1
A
C
G
F
H
I
D
E
A. Accelerator control. 6.6
B. Choke control. 6.4
C. HST control. 6.5
D. Parking brake control. 6.6
D1. Connection to belt "D" tensioner
D2. Connection to the rear axle
E. Cable - composed by:
F. Wire.
G. Sheath.
H. Terminal.
I. Terminal with adjustment device.
For a higher transmission of pushing and traction forces, components such as levers,
brackets, etc. are used.
