3.6 Connecting Up the Base Station
This section provides information relevant to the task of connecting up the
various inputs and outputs of the base station.
Connection Overview
The connections at the rear of a single-channel base station with 5W or
50W PA are identified in Figure 3.8. External connections are all located at
the rear of the subrack.

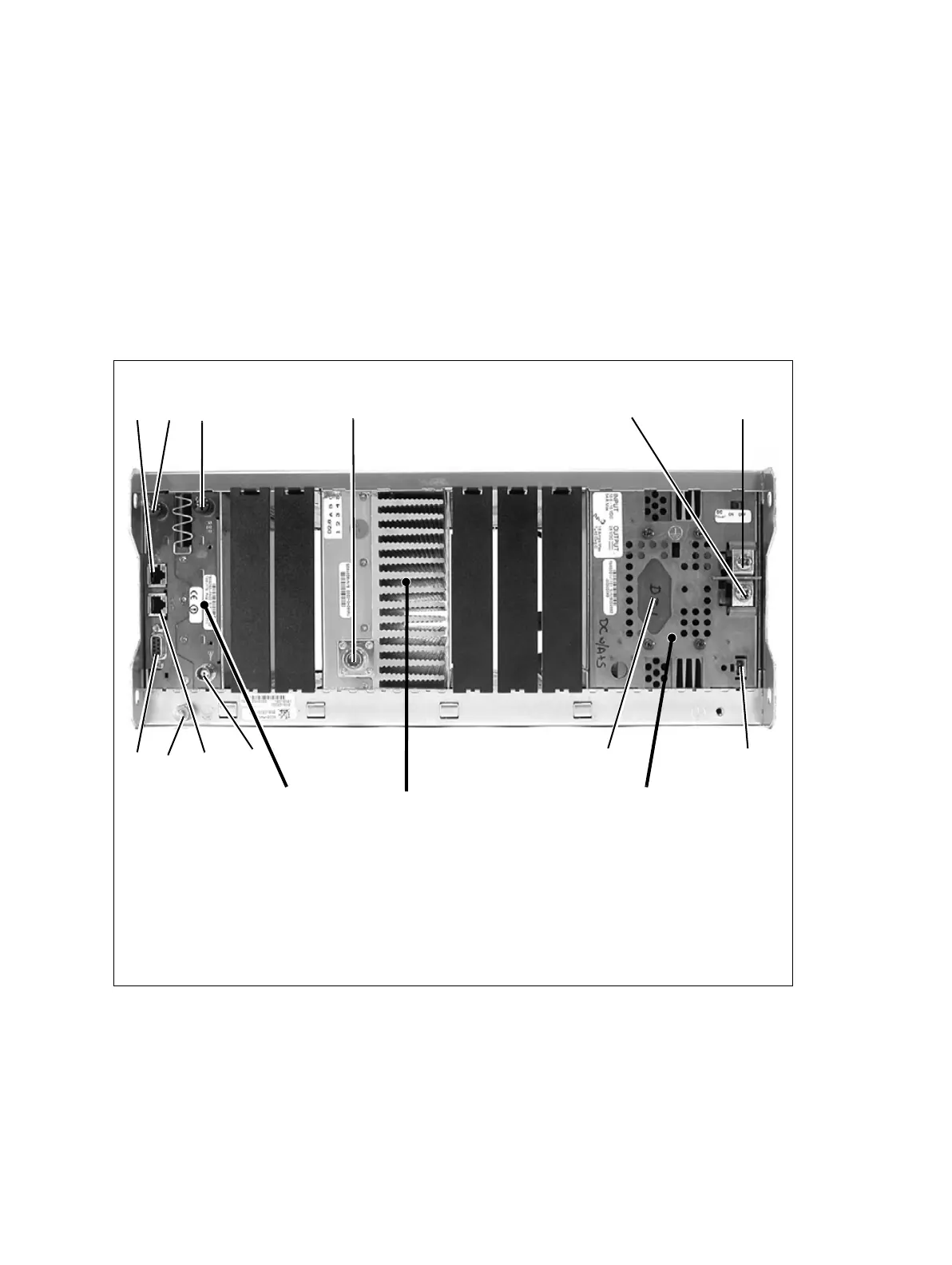

Figure 3.8 5W or 50W base station inputs and outputs
b analog line connector h auxiliary 12VDC output
c 1PPS input i AC mains input
d external reference frequency input j RF input
e RF output 1) Ethernet interface connector
f -VDC input 1! subrack ground connector
a
g +VDC input 1@ serial RS-232 connector
a. Later subracks have an M5 nut on the ground connector.
c
d
f
e
g
i
PA
reciter
PMU
1)
b
j
1!
1@
h
