Select the number of lanes
From the Bus Setup window, select Serial from the Bus Type list and then select one of the bus types.
To use

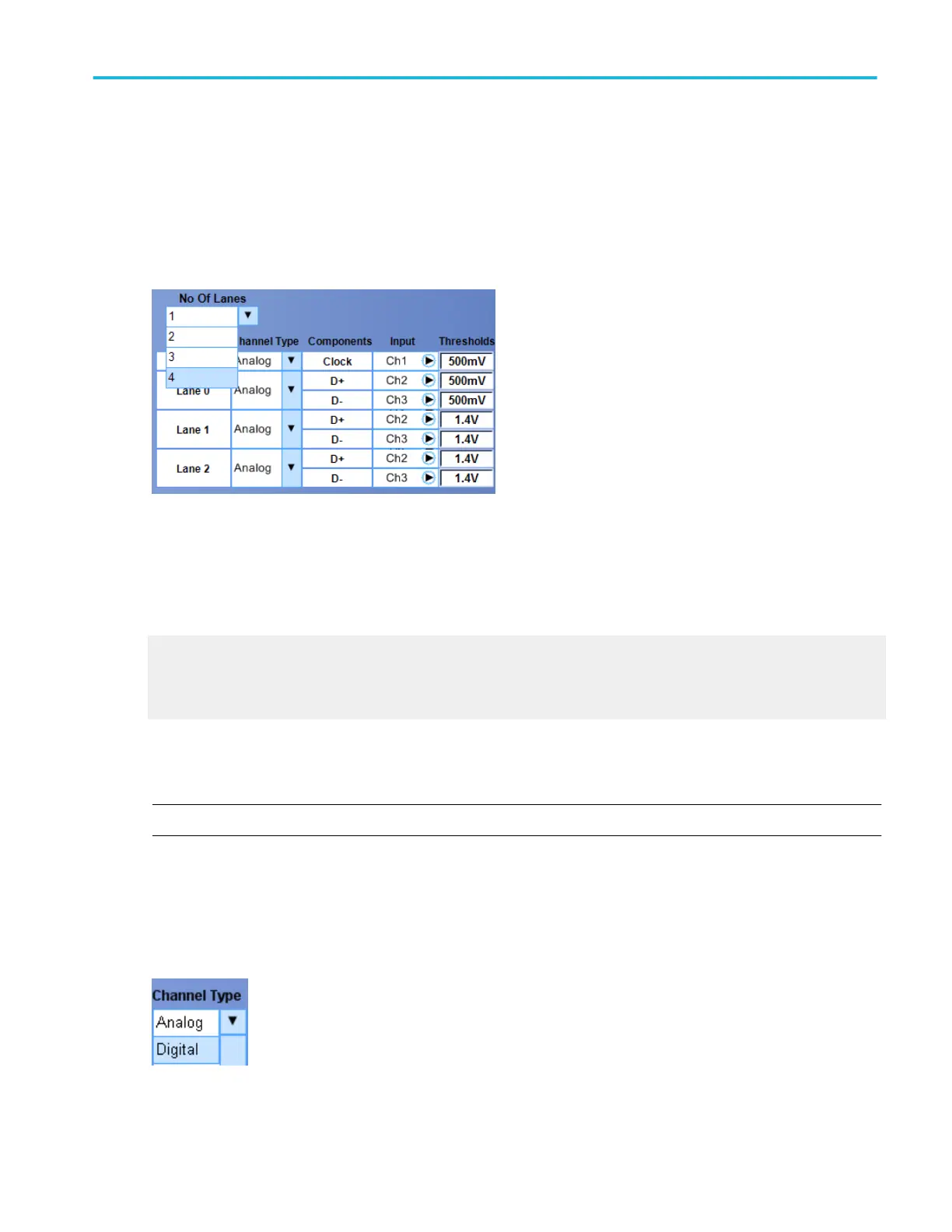

To change the number of lanes for the bus, click the No Of Lanes and select from the cascading list.
Behavior
The instrument acquires data from the number of lanes you select. You can select a maximum of 4 lanes on MSO instruments,
other instruments only allow 1 lane.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Learn about digital setups.
Select the serial bus channel type
NOTE. Serial bus Channel Type is only available on MSO70000C/DX models.
From the Bus Setup window, select Serial from the Bus Type list and then select one of the bus types.
To use
To change the channel type for the displayed components of the bus, click the Channel Type and select from the cascading list.
Bus setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 135
