Behavior

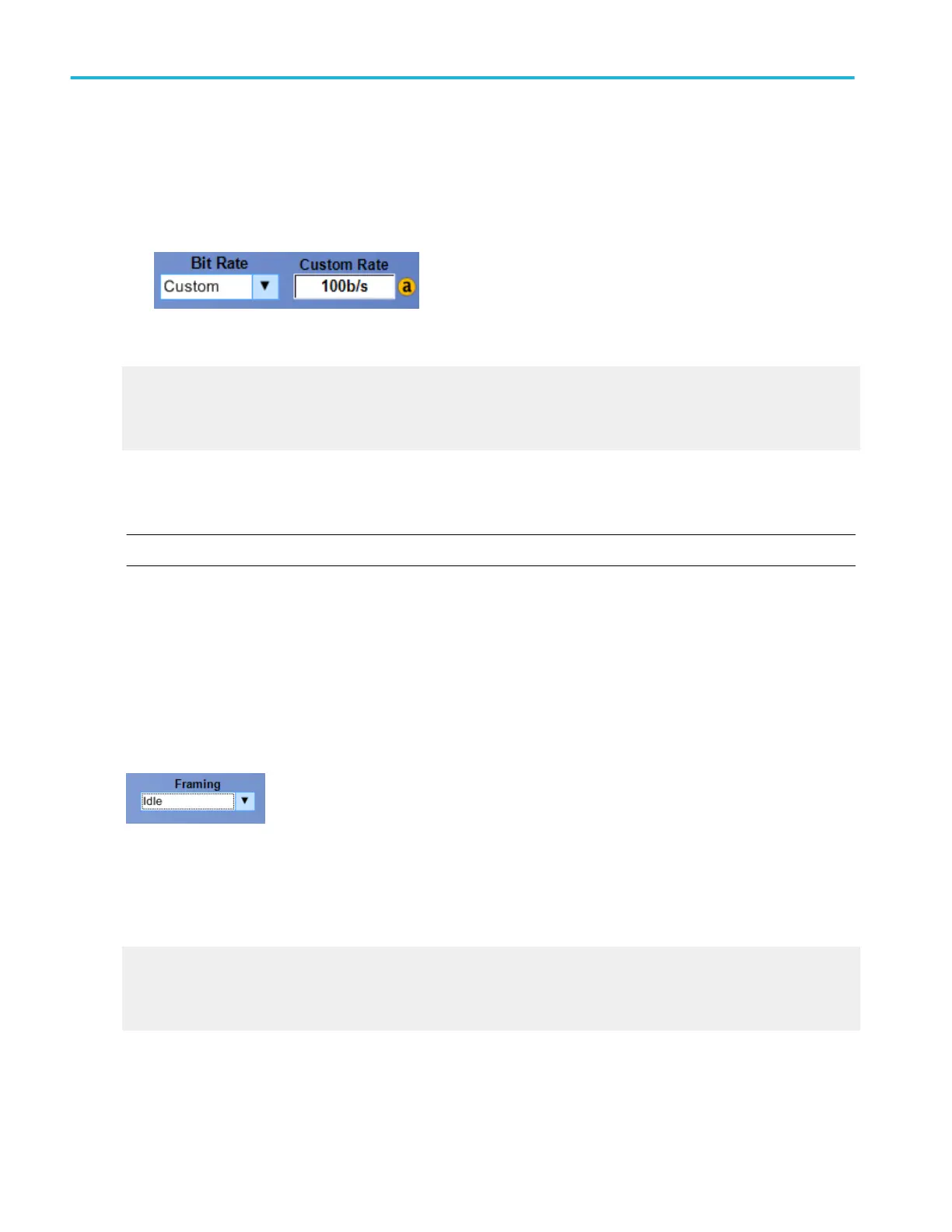

Set the bus bit rate to:
■
50, 300, 1200, 2400, 9600, 19200, 38400, 115200, 921600, or 10000000. The default value is 9600.
■
Custom. To change the bit rate, click the Bit Rate entry box and use the keypad to enter a value.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Learn about digital setups.
Select the SPI bus framing
NOTE. The SPI bus Framing option is available only on instruments with option SR-EMBD.
From the Bus Setup window, select the Select tab and the SPI Serial bus type.
To use
■
Select the framing from the drop-down list.
■
Select SS framing for three wire SPI decode.
■
Select Idle framing for two wire SPI decode.
Behavior
The instrument changes the framing and uses that to decode the selected SPI bus.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Learn about digital setups.
Bus setups
144 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
