Remove a channel from a parallel bus
From the Bus Setup window, select a channel to remove from a parallel bus.
To use
■
Select a parallel bus from the Bus list.
■
Click the channel you want to remove from the Bus Contains list.
■
Click the Remove button.
Behavior
The instrument removes the channel from the bus and shifts the bit order accordingly.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Learn about digital setups.
Select the bus clock source channel
From the Bus Setup window, select a bus, select the Parallel bus type, and click Clocked.
To use
■
Connect a probe between the instrument and the clock signal in your system under test.
■

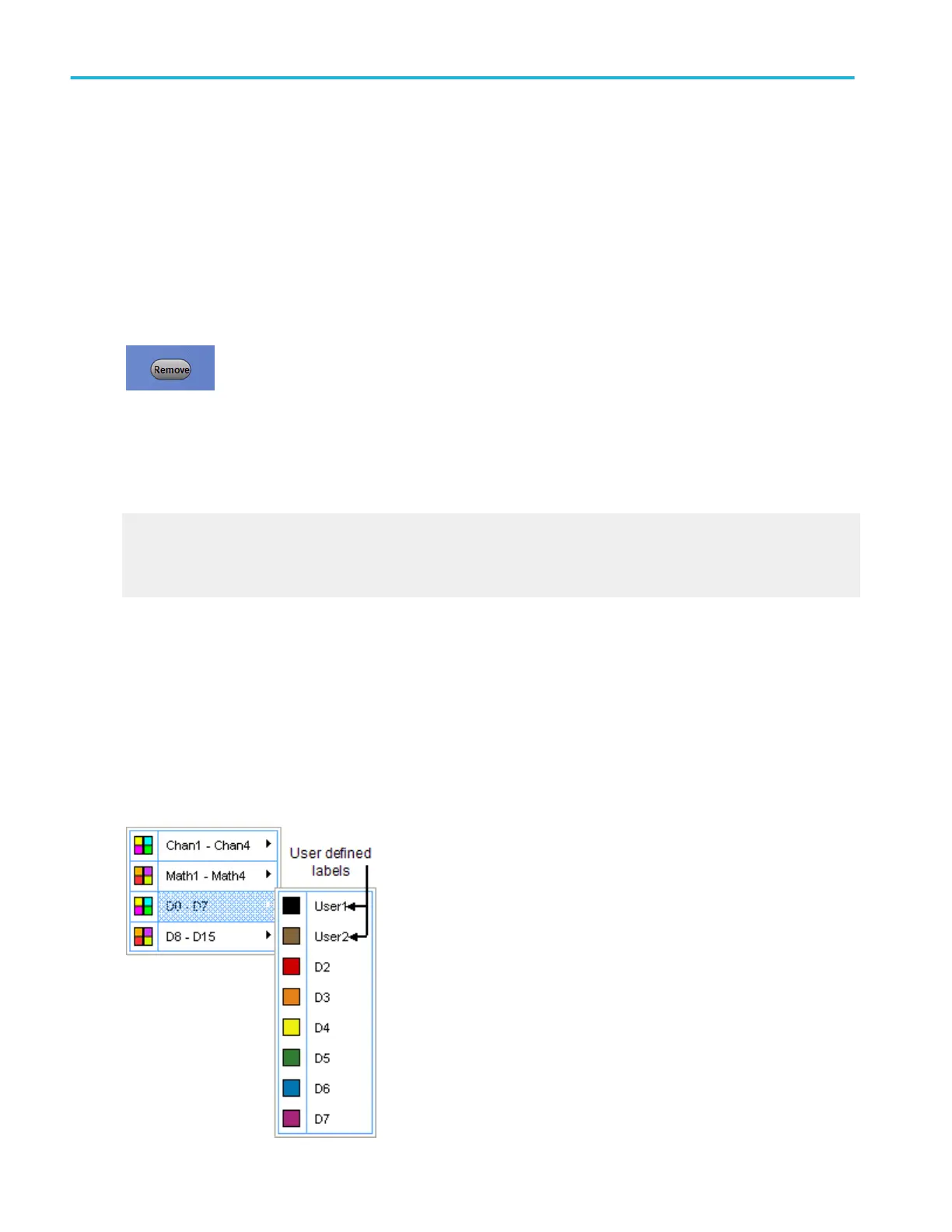

Click the Clock Source selection box and select the appropriate channel from the cascading list.
Bus setups
152 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
