Behavior. The Position control moves the vertical position of the waveform 0.2 divisions (0.02 divisions with FINE control).
Increasing the position value moves the waveform up, and decreasing the position value moves the waveform down.
The Position control differs from the Offset control; for information on the Offset control for channel waveforms refer to the
Vertical Offset Control Window.
TIP. Several alternatives are available for adjusting the position of a waveform:
■
Use the dedicated knob on the front panel for the selected waveform.
■
Enter a value with the on-screen pop-up keypad.
■
Use an attached keyboard to type a value directly into the position field.
What do you want to do next?
Learn more about offsetting channel waveforms.
Learn more about the Vertical controls.
Learn more about the Waveform controls.
Learn more about the Vertical Scale controls.
Set the vertical scale
From the Vertical menu, select Position/Scale.

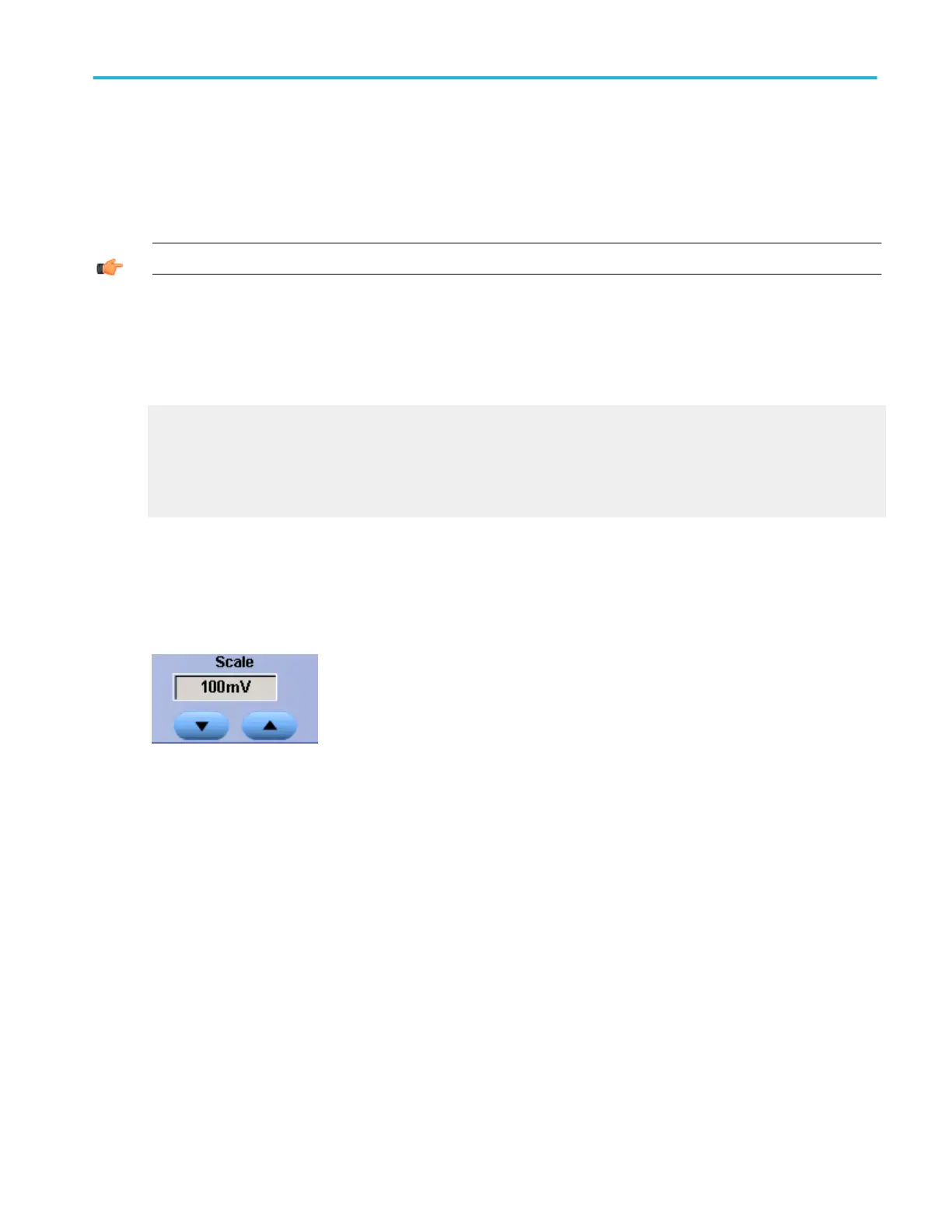

Overview. Use the Scale control to set the vertical scale value of the selected waveform.
To use.
■
Click in the Scale entry box to map it to one of the multipurpose knobs; then use the knob to move the waveform.
■
You can also use the up-down arrows to change the value.
Oscilloscope reference
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 843
