Overview. Use this control window to set up the conditions under which the instrument will send an e-mail and with the types of
attachments to include for the measurements.
To use.

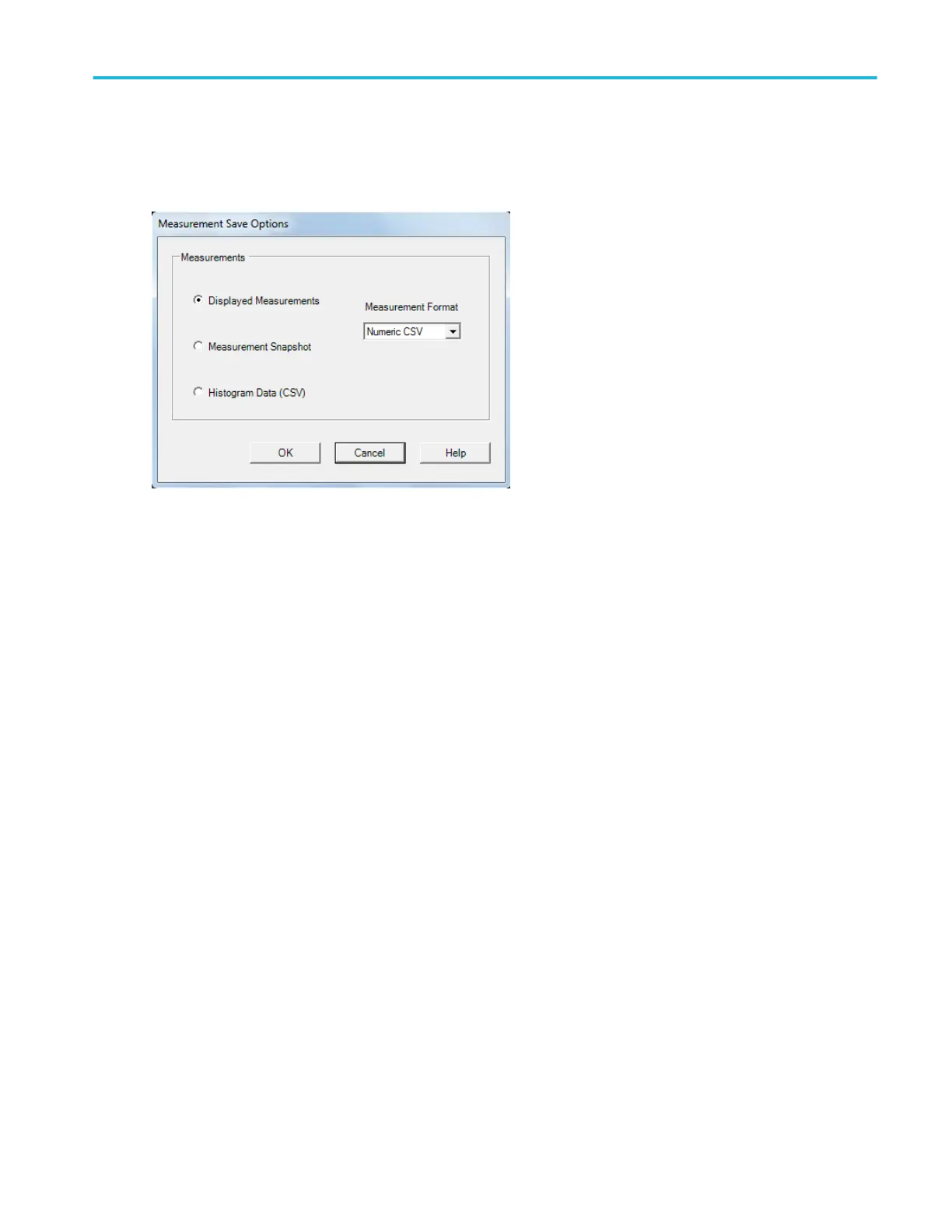

1. Click the Settings button to open the Measurement Save Options dialog box.
2. Select the measurement option and the file format. Click OK.
Selecting the Displayed Measurements option includes the measurements that are displayed on the screen; the Measurement
Snapshot option includes the information on measurements snapshot, and the Histogram Data (CSV) option includes the
histogram data in CSV format for the e-mail.
The following measurement file formats are available:
Numeric CSV. This creates (.csv) files in a numeric format usable by spreadsheets.
Numeric TXT. This creates (.txt) files in a numeric format usable by text and word processors.
Text CSV. This creates (.csv) files in a text format usable by spreadsheets.
Text TXT. This creates (.txt) files in a text format usable by text and word processors.
Utilities
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 557
