Tektronix TDS6000 Series Service Manual

Brief Procedures
TDS7104 & TDS7054 Service Manual
4-7
STOP. DO NOT make changes to the front-panel settings that are not called out
in the procedures. Each verification procedure will require you to set the
oscilloscope to certain default s ettings before verifying functions. If you make
changes to these settings, other than those called out in the procedure, you may
obtain invalid results. In this case, just redo the procedure from step 1.
When you are instructed to press a front-panel or screen button, the button may
already be selected (its label will be highlighted). If this is the case, it is not
necessary to press the button.
Equipment
required
One BNC cable, such as Tektronix part number 012-0076-00
Prerequisites None
1. Initialize the oscilloscope: Push the front-panel DEFAULT SETUP button.
2. Hook up the signal source: Connect the BNC cable from the probe com-
pensation output to the channel input that you want to test (beginning with
CH 1) as shown in Figure 4--2.

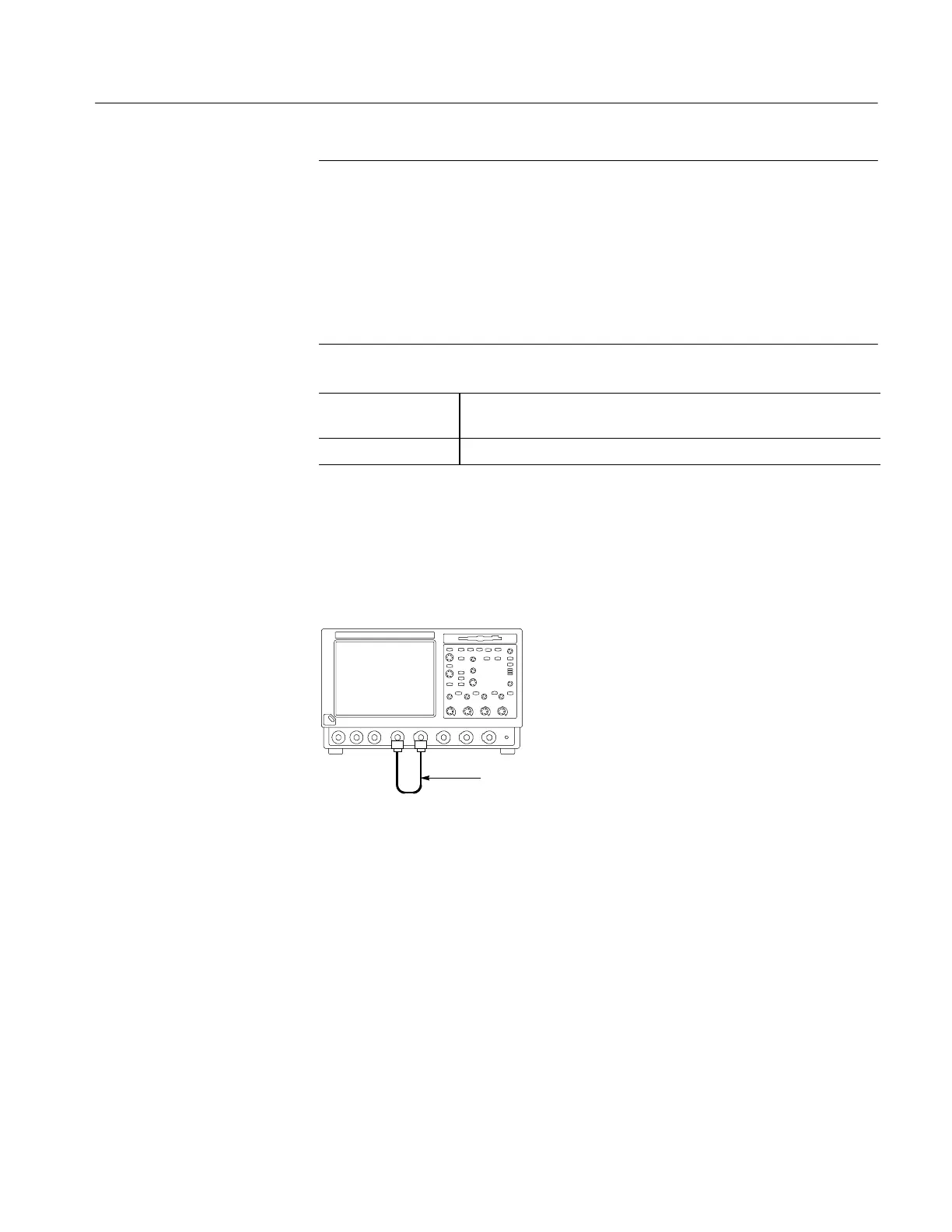

TDS7000 oscilloscope
BNC cable from PROBE
COMPENSATION output to
channel input
Figure 4- 2: Universal test hookup for functional tests - CH 1 shown
3. Turn off all channels: If any of the front-panel channel buttons are lighted,
push those buttons to turn off the displayed channels. See Figure 4--3.
Verify All Input Channels
