Brief Procedures
4-14
TDS7104 & TDS7054 Service Manual
TDS7000 oscilloscope
BNC cable from PROBE
COMPENSATION output to
CH 1 input

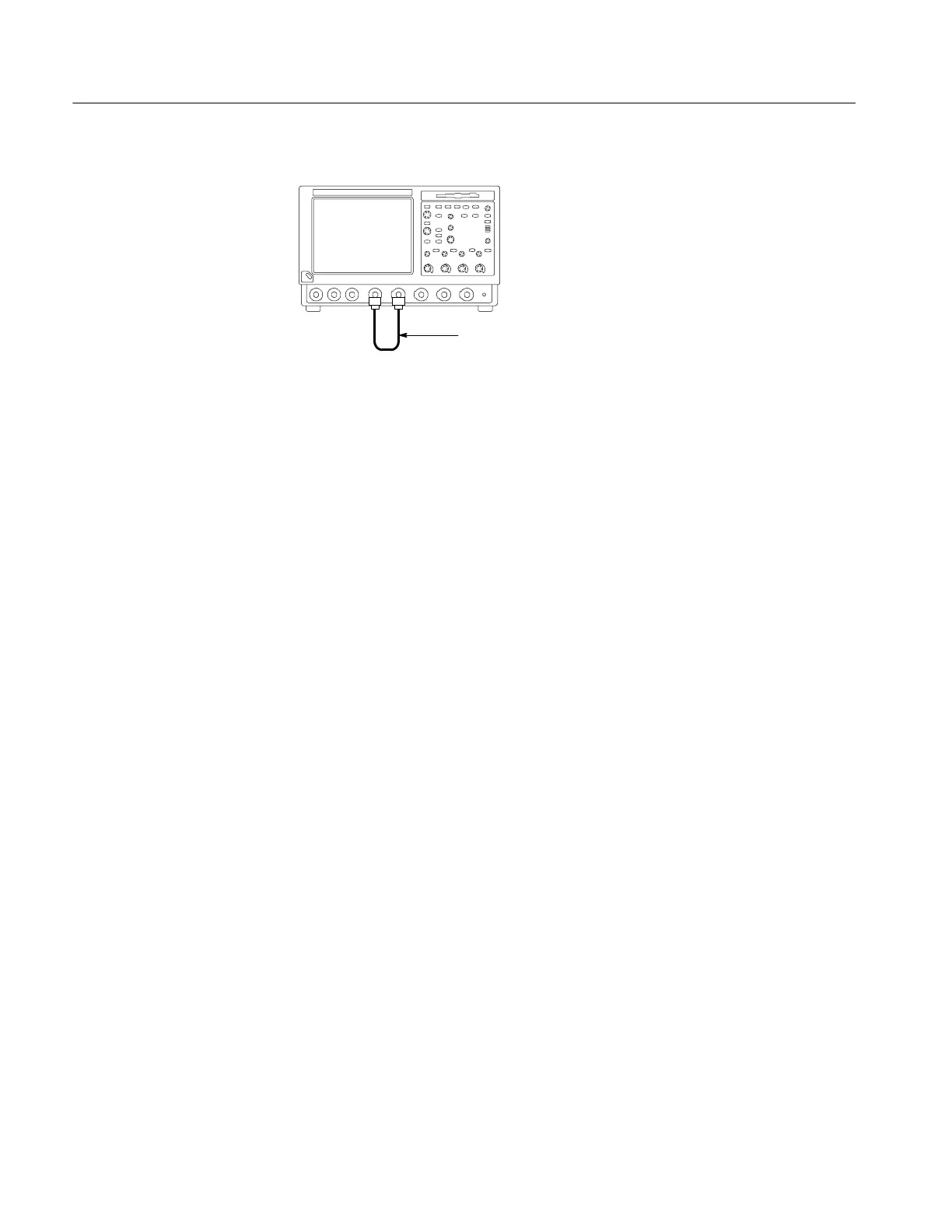

Figure 4- 6: Setup for the file system test
3. Insert the test disk: Insert the floppy disk in the floppy disk drive.
4. Set up the oscilloscope: Push the front panel AUTOSET button.
5. Set the time base: Set the horizontal SCALE to 1ms/div. The time-base
readout is displayed at the bottom of the graticule.
6. Save the settings:
a. Pull down the File menu to select Instrument Setup. . . . This displays
the instrument setups control window.
b. Click the Save button under Save settings to file in the control window.
This displays a familiar Windows dialog box for choosing a destination
folder naming the file.
c. In the Save Instrument Setups As dialog box, select the 3
1
/
2
Floppy (A:)
icon in the Save in: drop-down list to set the save destination to the
floppy disk.
d. Note the default file name and then click the Save buttontosavethe
setup to the default file name.
7. Change the settings again: Set the horizontal SCALE to 200 s/div.
8. Verify the file system works:
a. Click the Recall Setups tab in the control window.
b. Click the Recall button under Recall settings from file in the control
window. This displays a familiar Windows dialog box for locating the
settings file that you want to recall.
c. In the Recall Save Instrument Setups From dialog box, select the 3
1
/
2
Floppy (A:) icon in the Look in: drop-down list.
