Rev. 000
HYDRAULIC LIFT ASSEMBLY
7-12
TX 413 Service Manual
Note: Cleanliness is a key factor in a successful
repair of any hydraulic cylinder.
Thoroughly clean all exposed surfaces
prior to any type of maintenance. Cleaning
all parts by using a solvent wash and air
drying is usually adequate. As with any
precision equipment, all parts must be kept
free of foreign material and chemicals.
Protect all exposed sealing areas and open
cavities from damage and foreign material.

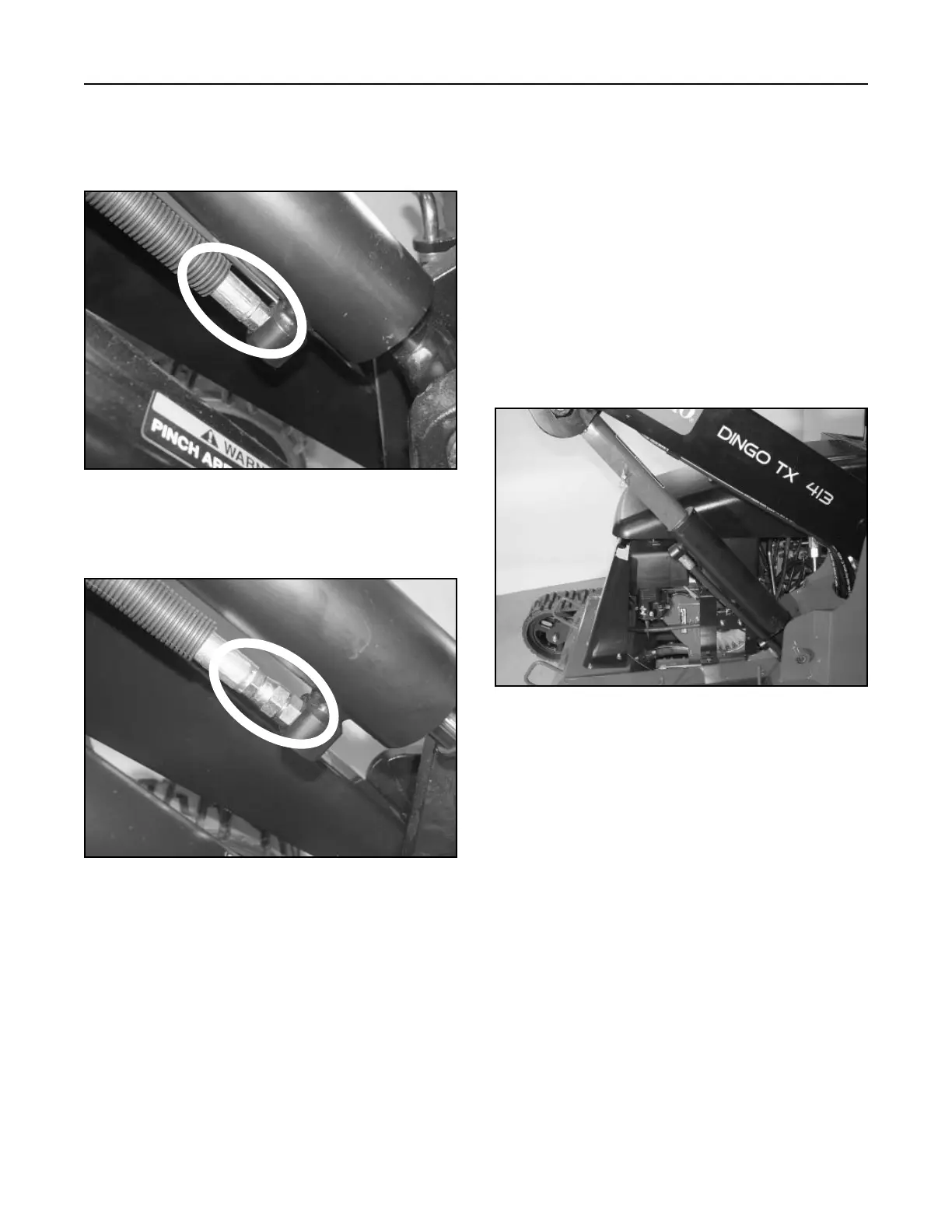

1. Start the unit and raise loader arm assembly to
the full raised position. Install the cylinder lock
assembly onto the hydraulic lift cylinder. Shut the
engine off (Fig. 226).
Figure 226 DSC-0965
Hydraulic Tilt Cylinder Removal
Units with serial numbers from 240000100 through
240000200 have a fixed, non-swivel fitting (Fig. 224).
Figure 224 DSC-1029
Units with serial numbers from 240000201 and higher
have a swivel fitting (Fig. 225).
Figure 225 DSC-1030
