Toro Dingo TX 413 User Manual

ATTACHMENTS
10-25TX 413 Service Manual
Rev. 001

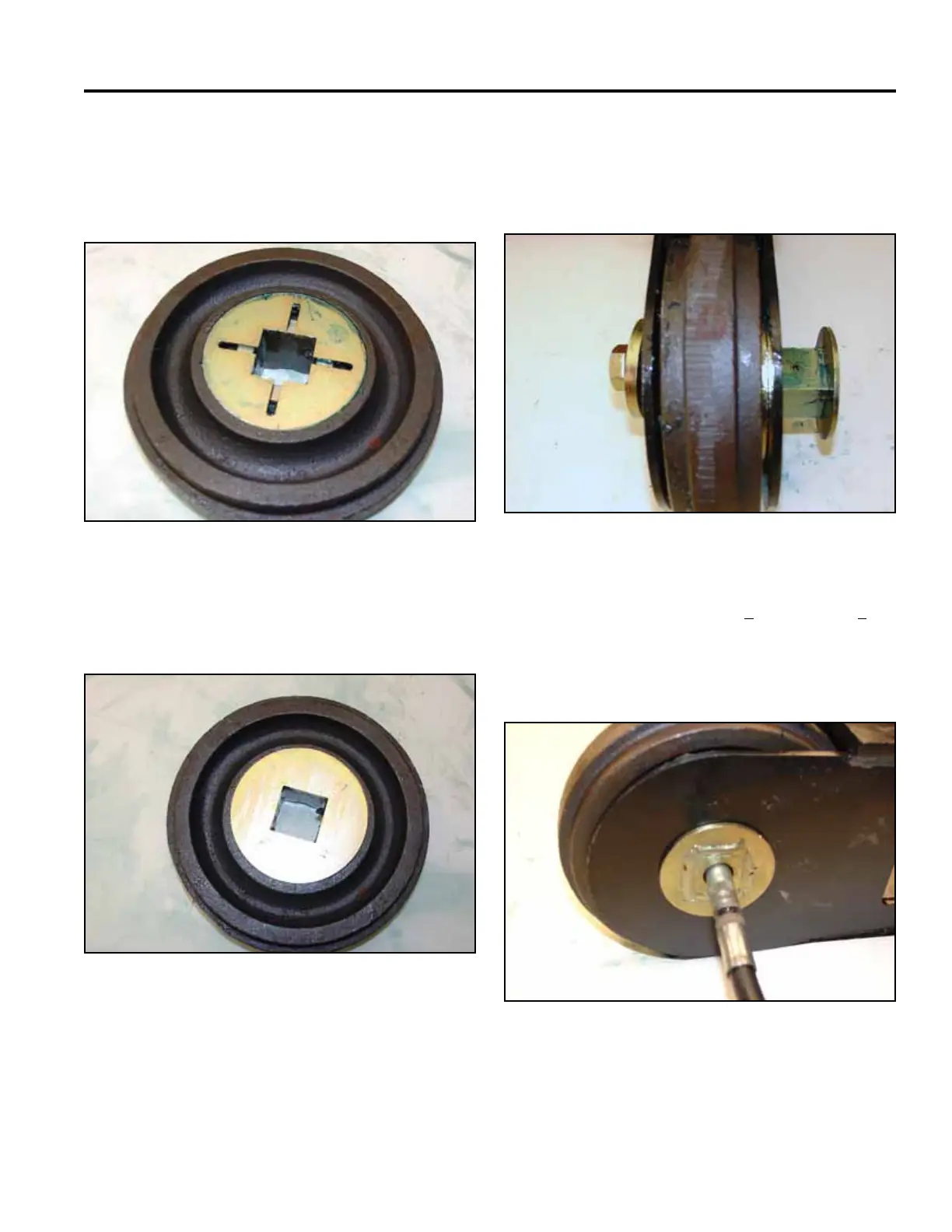

Reassemble the Nose Roller
Fig 089 CLR DSC-0247
Fig 088 CLR DSC-0246
1. Reassemble in reverse order. Place a roller spacer
against each side of the bearing surface (Fig. 088).
 Installtherollercapsnext,aligningthesquareofthe
capwiththesquareofthebearinghub(Fig.089).
2. Slide the nose roller back into the boom. Install the
screw, washer and pin assembly. Make sure the pin
assembly lines up with roller caps and bearing hub
(Fig. 090).
Fig 090 CLR DSC-0248
3. Torquethescrewto150ft-lbs.+ 15 ft-lbs. (203 + 20
Nm).
4. Grease the pin assembly with high temperature
Mobil grease (Fig. 091).
Fig 091 CLR DSC-0250
