Toro Dingo TX 413 User Manual

ATTACHMENTS
10-21TX 413 Service Manual
Rev. 001
 Captheushfacecouplerstopreventhydraulic
contamination (Fig. 073).

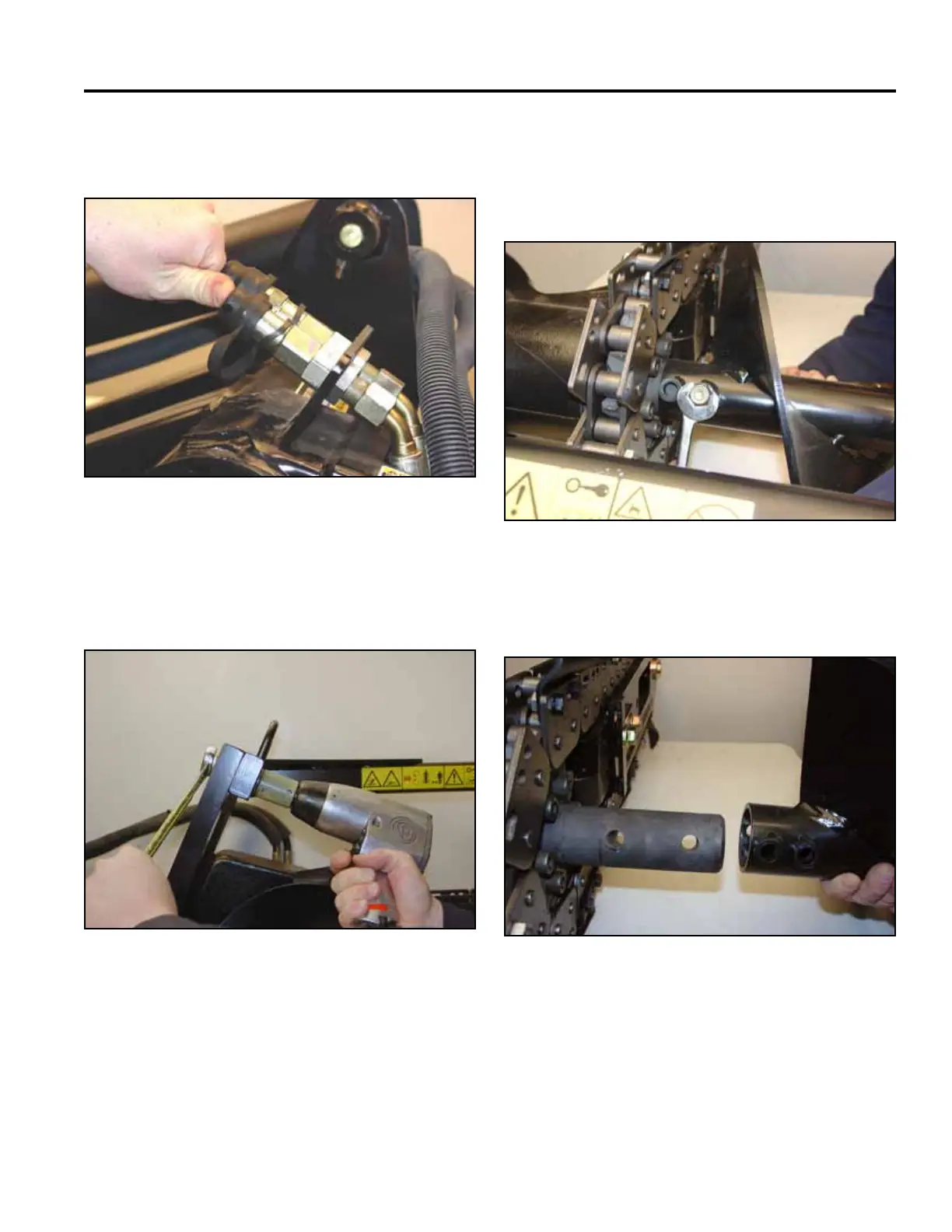

Fig 073 CLR DSC-0103
Fig 074 CLR DSC-0228
2. Optional: Remove the three bolts washers and nuts
that are securing the safety bar for better access
(Fig. 074).
1. Remove the bolt and nut securing the spoils auger to
the trencher shaft (Fig. 075).
Fig 075 CLR DSC-0229
Trencher Chain and Boom Removal
Fig 076 CLR DSC-0230
Slide the spoils auger off trencher shaft (Fig. 076).

Toro Dingo TX 413 Specifications

General

Brand	Toro
Model	Dingo TX 413
Category	Compact Loader
Language	English
