ATTACHMENTS
10-22 TX 413 Service Manual
Rev. 001

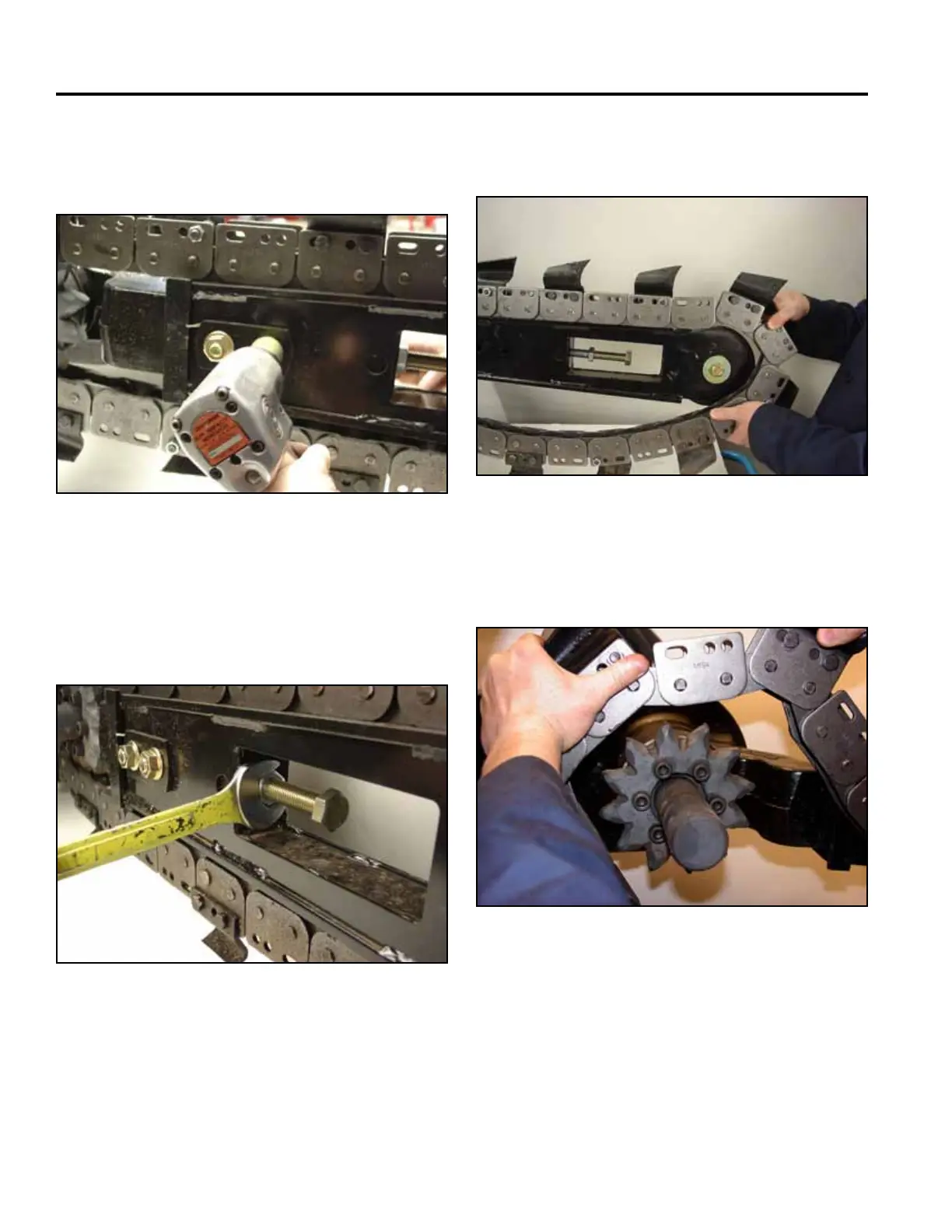

Fig 078 CLR DSC-0231
3. Loosen the jam nut (counter clockwise) on the
adjustment bolt and turn the bolt out. Slide boom in
towards motor to provide enough slack to remove
chain from sprocket (Fig. 078).
Fig 077 CLR DSC-0232
2. Remove the two nuts and bolts from the support
plates securing the boom to the trencher arm (Fig.
077).
4. First, remove the chain from the nose roller (Fig.
079).
Fig 079 CLR DSC-0234
Second, remove the chain from the trencher
sprocket (Fig. 080).
Fig 080 CLR DSC-0235
