Rev. 000
DRIVE SYSTEM
Figure 418 DSC-0777
Figure 420 DSC-0779
Figure 419 DSC-0778
Figure 421 DSC-0785
8-2
TX 413 Service Manual

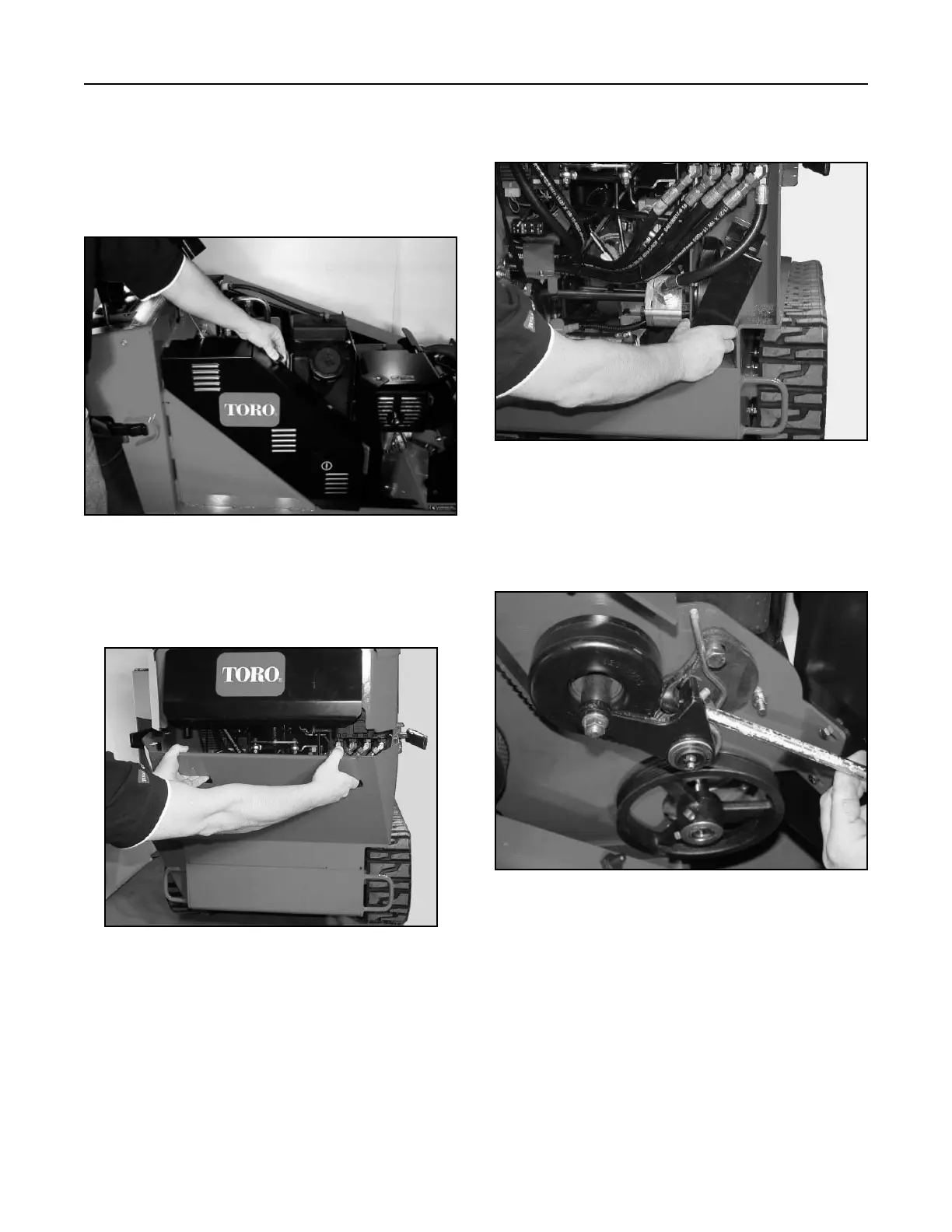

Drive Belt Removal
1. Shut engine "OFF", apply parking brake, and
remove ignition key.
2. Remove belt cover knob and remove the belt
cover (Fig. 418).
4. Remove the two fasteners holding the pulley
cover and remove cover (Fig. 420).
3. Disconnect the two rear latches and remove the
rear cover (Fig. 419).
5. Using a 12” (30.5cm) crow foot pry bar, insert the
end of the crow foot between the idler bracket tab
and the idler pivot shaft (Fig. 421).
To Next Page
