TX 413 Service Manual
4-17
ENGINE
3. Install the fuel line on the fuel shut off valve and
install the clamp (Fig. 078).

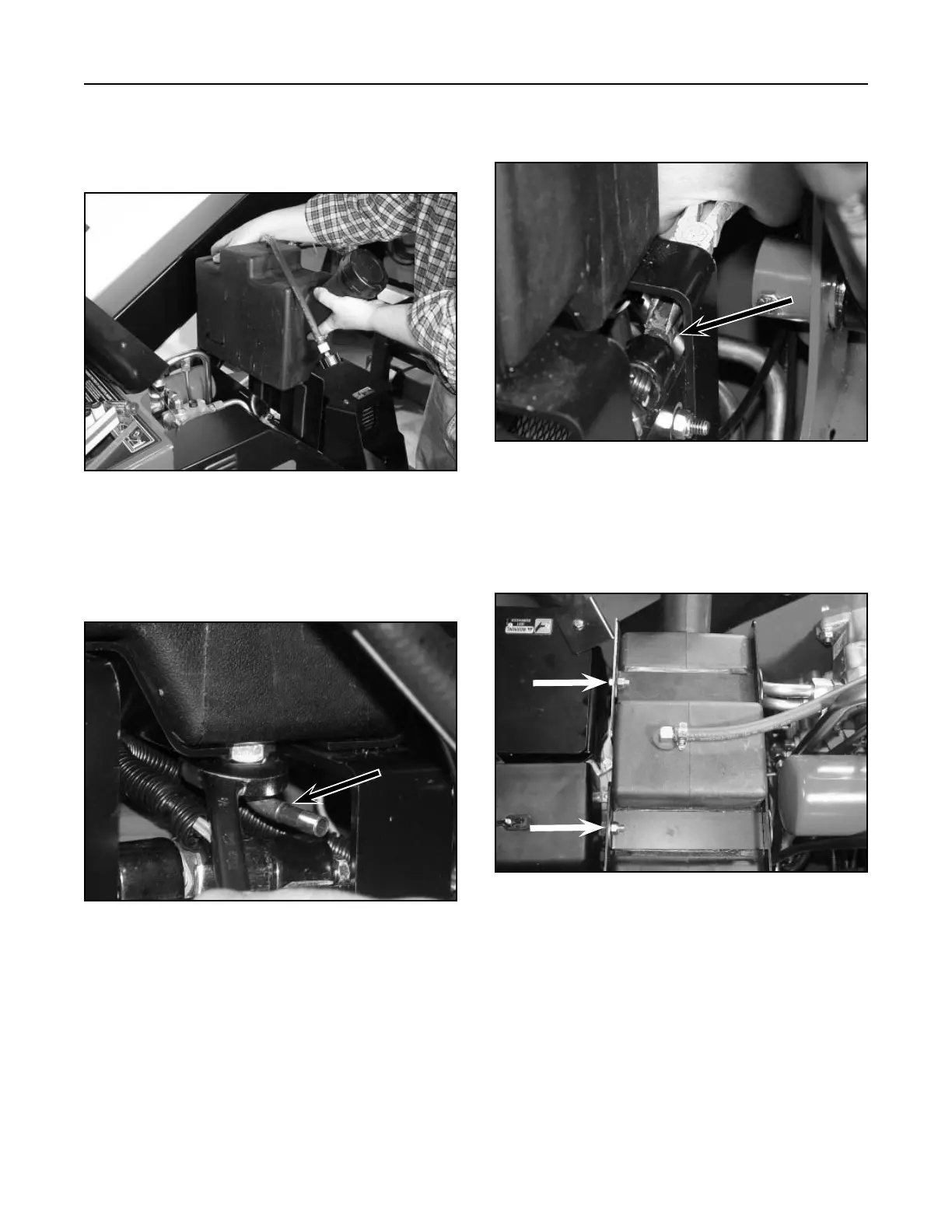

Figure 078 DSC-1133
4. Install the two fuel tank straps located on the top
of the fuel tank and install the nuts and bolts and
tighten (Fig. 079).
Figure 079 DSC-1131
Fuel Tank Installation
1. Install the fuel tank on the unit taking care not to
damage the fuel fitting (Fig. 076).
Figure 076 DSC-1139
2. Turn the fuel fitting toward the rear of the unit and
tighten the fitting nut, then install the fuel line and
clamp (Fig. 077).
Figure 077 DSC-1137
