Toro Dingo TX 413 User Manual

Rev. 000
ENGINE
Introduction
The engine removal and installation procedure
is provided in this manual. Refer to the engine
manufacturer's owner's and service manuals for
maintenance intervals and service procedures.

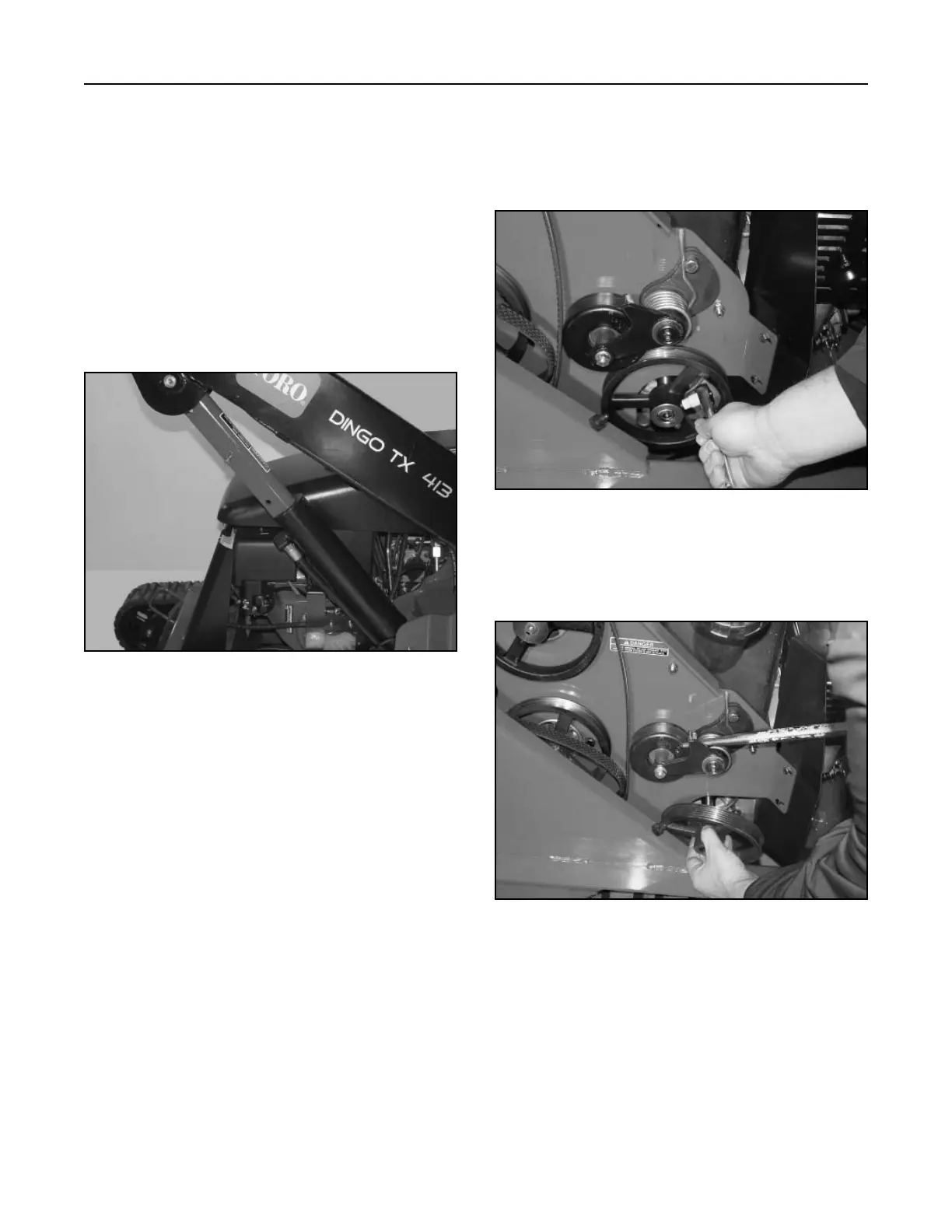

6. Remove engine drive pulley after retracting the
idler pulley assembly (Fig. 020).
Figure 020 DSC-1089
4-2
TX 413 Service Manual
4. Remove the drive belt; refer to Drive Belt
Removal and Replacement, page 8-2.
5. Loosen the two set screws on the engine drive
pulley (Fig. 019).
Figure 019 DSC-1088
Engine Removal
1. Start the unit and raise the loader arm assembly
to the fully raised position. Install the cylinder lock
in the lift cylinder (Fig 018).
Figure 018 DSC-1041
2. Remove the belt cover and rear cover.
3. Disconnect the negative battery cable, then the
positive cable. Remove the battery from the unit.

Toro Dingo TX 413 Specifications

General

Brand	Toro
Model	Dingo TX 413
Category	Compact Loader
Language	English
