TX 413 Service Manual
6-5
HYDRAULIC SYSTEM
Note: Slight creeping of tracks in the forward or
reverse drive with tracks off the ground
can be a normal condition.
5. Loosen the jam nuts on the traction rods, under
the control panel (Fig. 104).

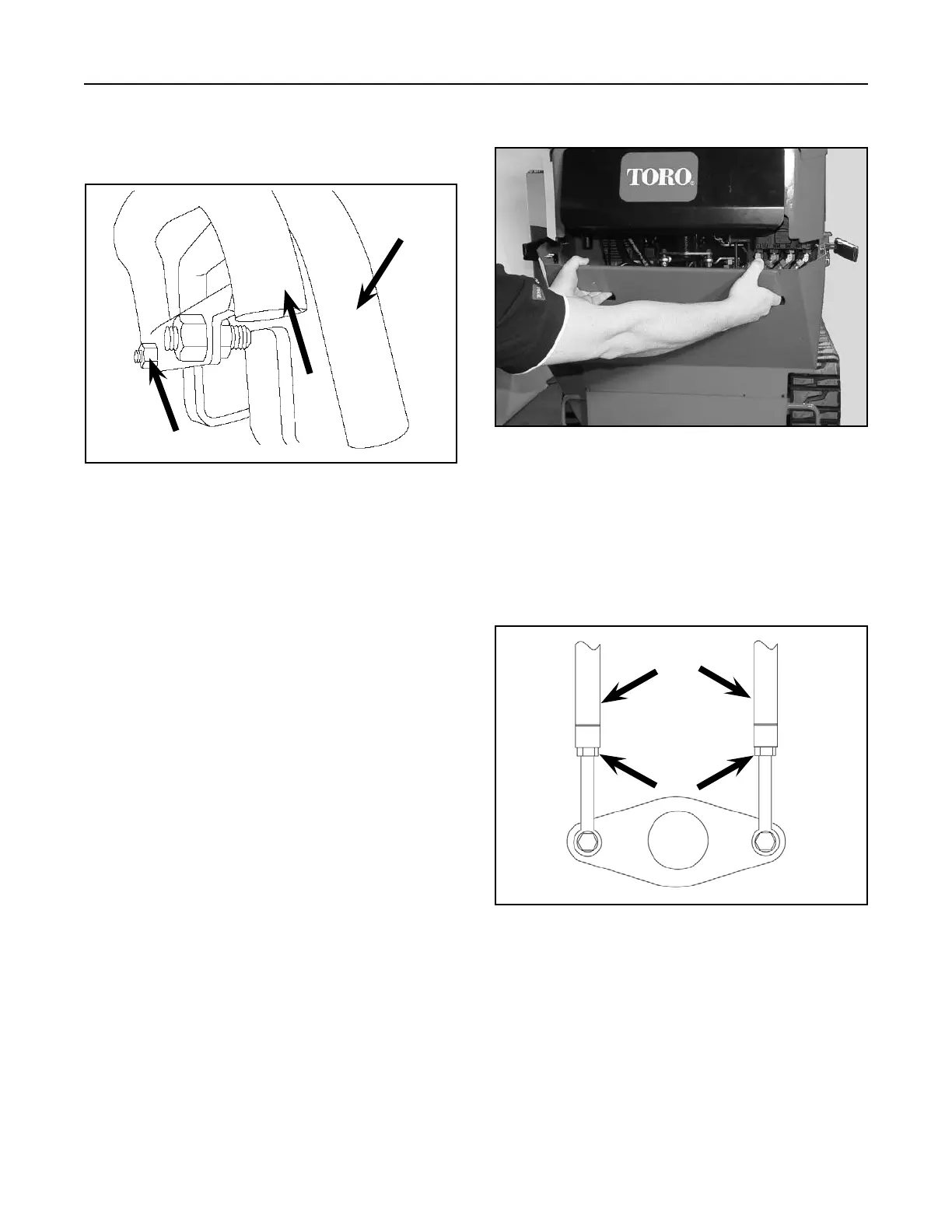

Figure 104 fig. 37.bmp
4. If the traction unit veers right, loosen the left jam
nut and adjust the tracking set screw on front of
the traction control (Fig. 102).
Figure 103 DSC-0778
4. Open the rear access cover (Fig. 103).
5. Repeat steps 1 through 4 until the traction unit
drives straight in the full forward position.
Figure 102 fig 38.bmp
A
B
Adjusting the Traction Control Neutral
Position
If the traction unit creeps forward or backward when
the traction control is in neutral (and the unit is fully
warmed up), immediately complete the following
procedure:
1. Park the traction unit on a flat surface and lower
the loader arm.
2. Stop the engine and remove the key.
3. Lift/support the traction unit so that both tracks
are off of the ground.
C
B
A
A. Left jam nut B. Operator Handle
C. Reference Bar
A. Traction rods B. Jam nuts
