Rev. 000
HYDRAULIC LIFT ASSEMBLY
7-24
TX 413 Service Manual

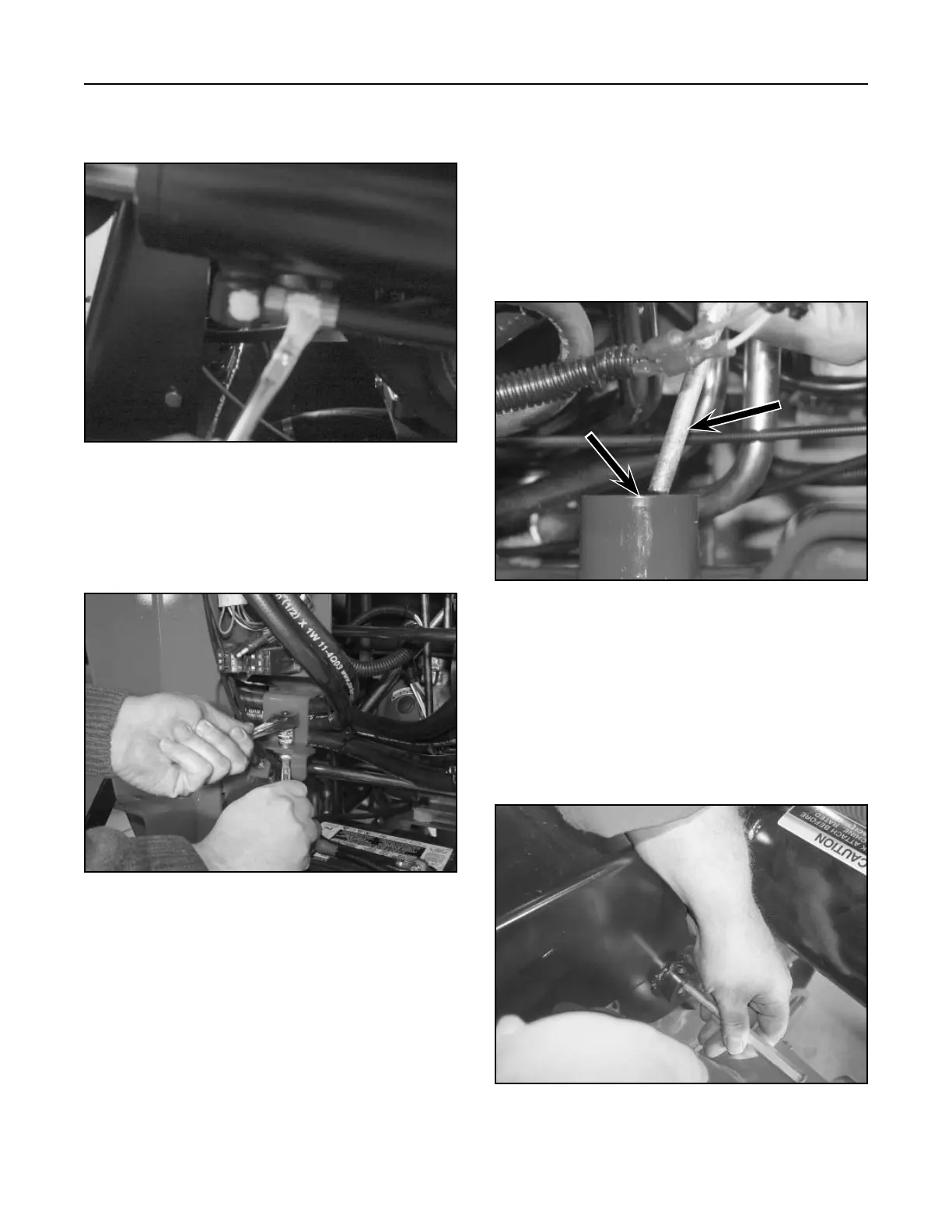

10. Remove the pivot pin on the barrel end of the
hydraulic cylinder by using a drift punch and
hammer, tapping the pin out from the inside of
the frame, toward the outside (this is a top view
of the barrel end of the pivot pin) (Fig. 271).
Note: It may be necessary to remove the
hydraulic return line to the reservoir to get
more clearance to remove the pivot pin.
11. Support the hydraulic cylinder prior to removing
the pivot pin at the ram end of the hydraulic lift
cylinder. Using a drift punch and hammer, tap
the pin out from the inside of the loader arm
assembly, toward the outside (Fig. 272).
Figure 271 DSC-1014
Figure 272 DSC-1015
A
B
8. Mark the hydraulic hose and fitting at the ram
end of the hydraulic lift cylinder (Fig. 269).
Figure 269 DSC-1005
Figure 270 DSC-0969
9. Remove the hose clamp located in the back at
the lower left corner and cut the tie cable strap
holding the hydraulic hoses together (Fig. 270).
A. Pin B. Punch
