DRIVE SYSTEM
Figure 466 DSC-0832
8-14
TX 413 Service Manual

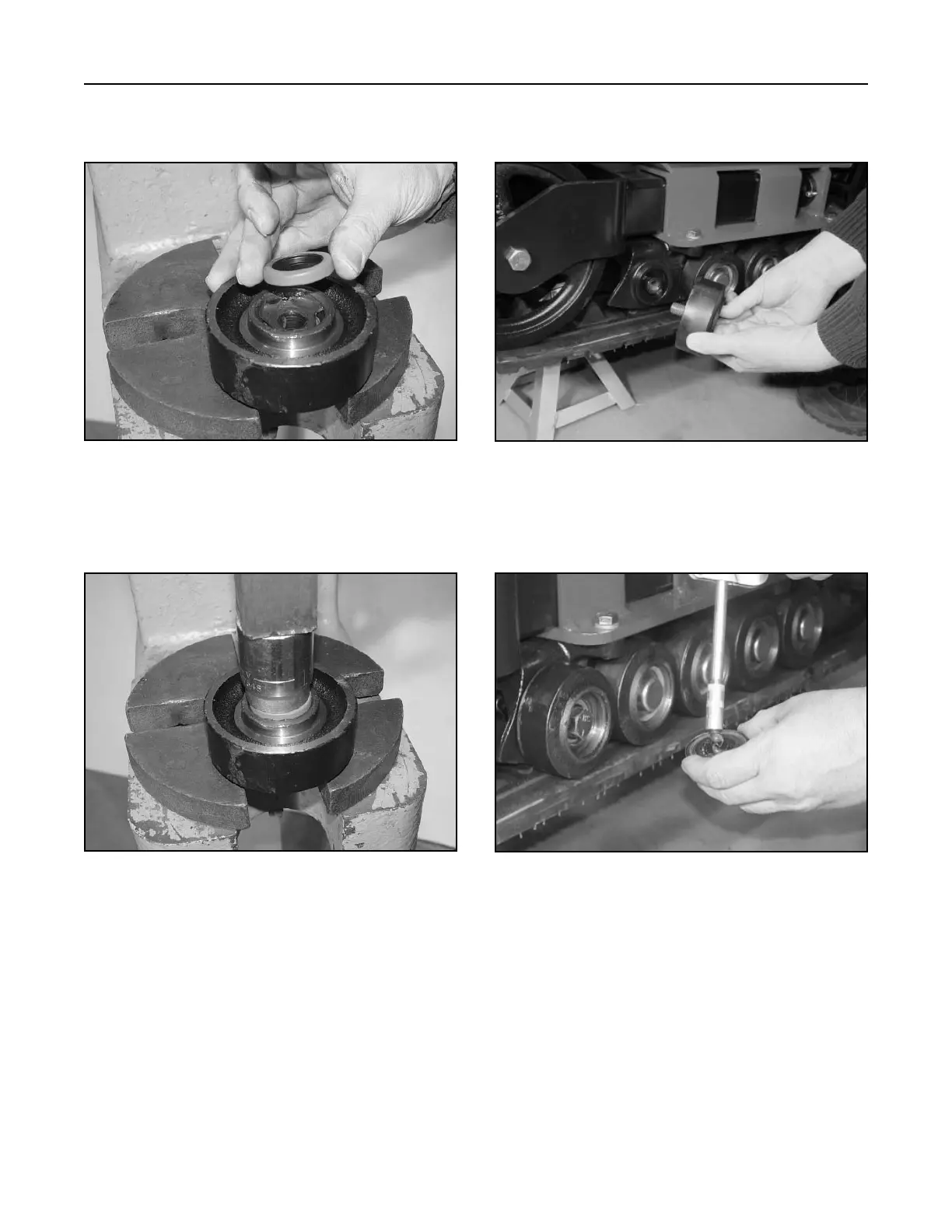

5. Press seal in until it is flush with the inner hub of
the road wheel (Fig. 467).
7. Fill the cap with grease and install the wheel
gasket (Fig. 469).
6. Install the road wheel on the track guide and
torque bolt to 150 ft-lbs. (203 Nm) (Fig. 468).
4. Align seal so the lip is facing the bearing (Fig.
466).
