Toro Dingo TX 413 User Manual

ATTACHMENTS
10-4 TX 413 Service Manual
Rev. 001

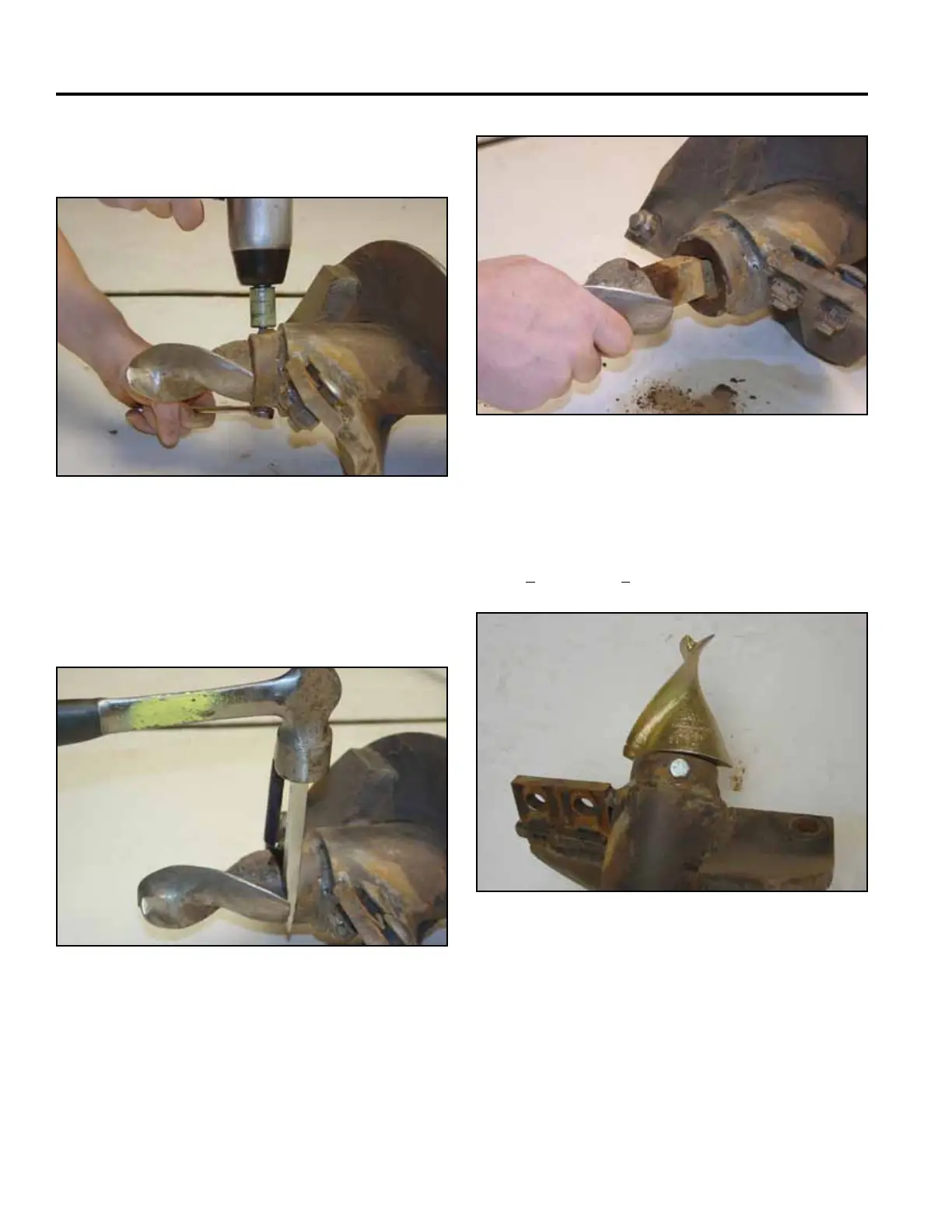

Fig 011 CLR DSC-0381
1. Reinstalltheshtailshankandtorquenutandboltto
16 + 2 ft-lbs. (22 + 3 Nm) (Fig. 011).
Fishtail Shank Reinstallation
Fig 008 CLR DSC-0224
4. Removethescrewandlocknutsecuringtheshtail
shank to the auger bit (Fig. 008).
5. Theshtailshankcanbedifculttoremovebecause
it is being held in by dirt and debris – you may need
toprytheshtailshankawayfromtheaugerbit(Fig.
009 and Fig. 010).
Fig 009 CLR DSC-0225
Fig 010 CLR DSC-0226

Toro Dingo TX 413 Specifications

General

Brand	Toro
Model	Dingo TX 413
Category	Compact Loader
Language	English
