TX 413 Service Manual
4-7
ENGINE
25. Remove the two front engine mounting bolts and
nuts (Fig. 039).

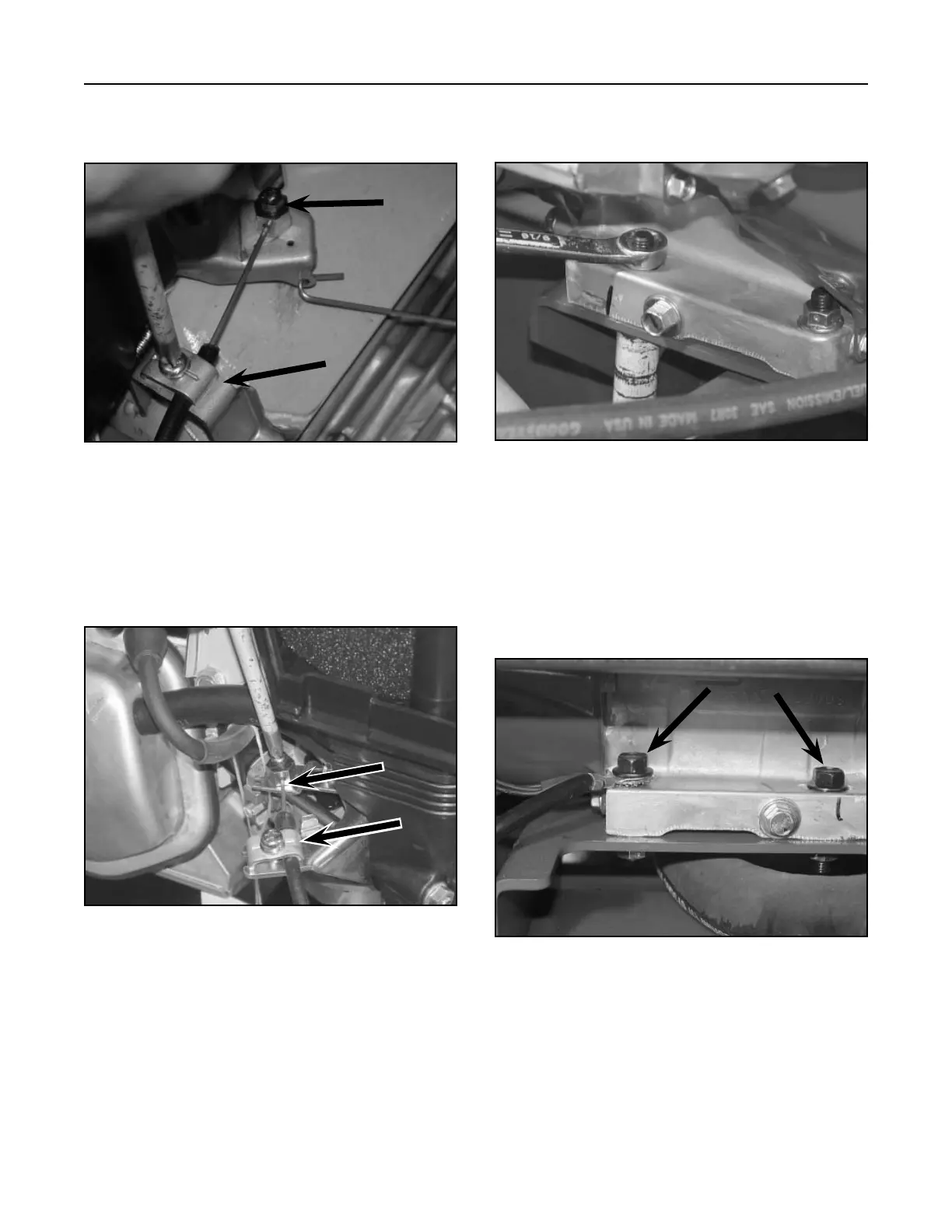

Figure 039 DSC-1114
26. Remove the two rear engine mounting bolts and
nuts.
Note: The left rear bolt and nut has two ground
wires; a star washer is located between the
ring terminals of the wires and the engine
block (Fig. 040).
Figure 040 DSC-1115
23. Disconnect the throttle cable clamp and the throt-
tle cable from the top of the engine (Fig. 037).
Figure 037 DSC-1112
24. Remove the engine air cleaner cover. Disconnect
the choke cable clamp and choke cable from the
front of the engine (Fig. 038).
Figure 038 DSC-1113
A. Throttle Clamp B. Throttle Cable
A. Choke Cable Clamp B. Choke Cable
A
A
B
B
A
A
B
B
