TX 413 Service Manual
4-11
ENGINE

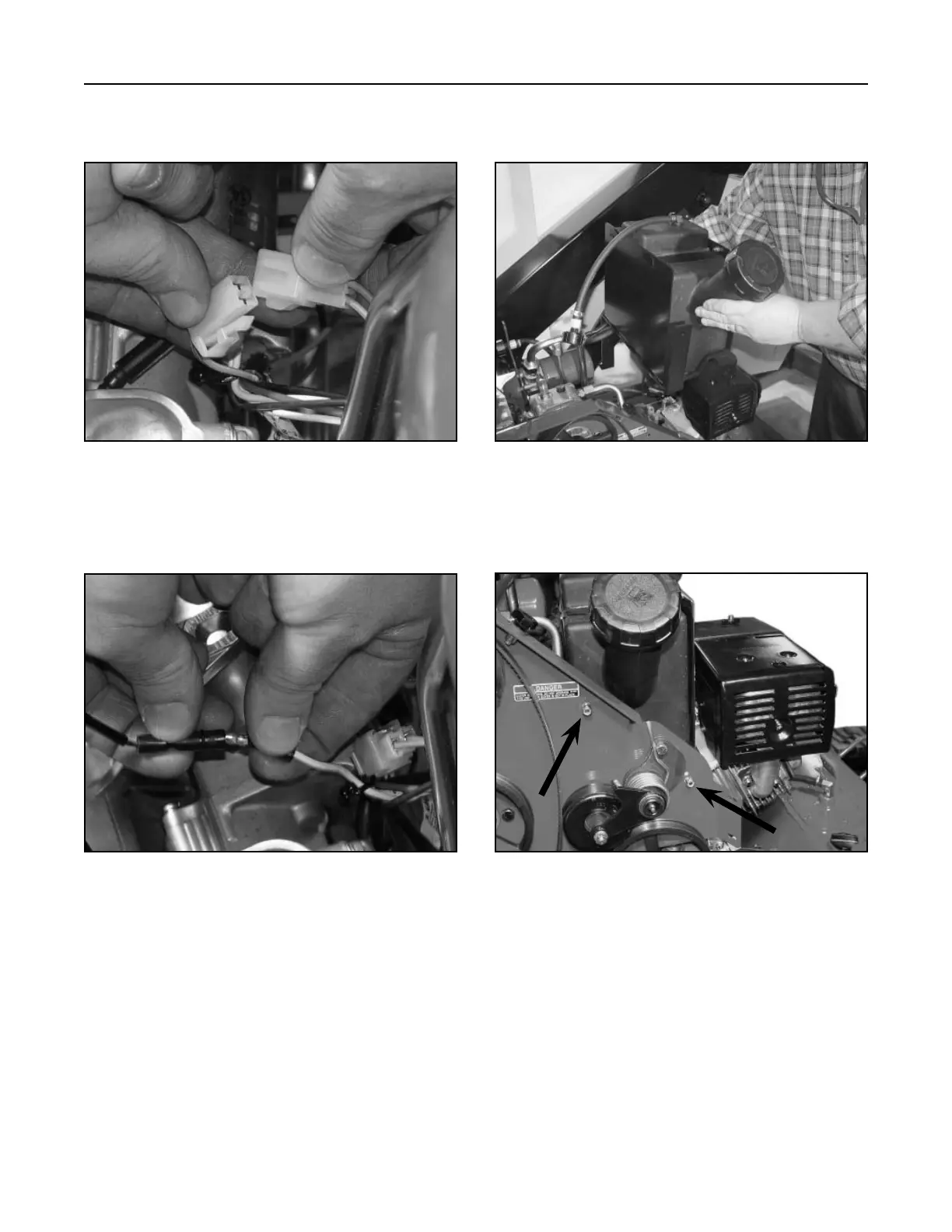

8. Install the fuel tank and tank bracket on the frame
(Fig. 055).
Figure 055 DSC-1102
9. Install two bolts and nuts located on the right side
of the tank bracket and leave loose (Fig. 056).
Figure 056 DSC-1128
6. Connect the plug and jack connection to the
alternator wires to the rectifier (Fig. 053).
Figure 053 DSC-1105
7. Connect the magneto wire, black to white wire
(Fig. 054).
Figure 054 DSC-1103
