TX 413 Service Manual
4-13
ENGINE

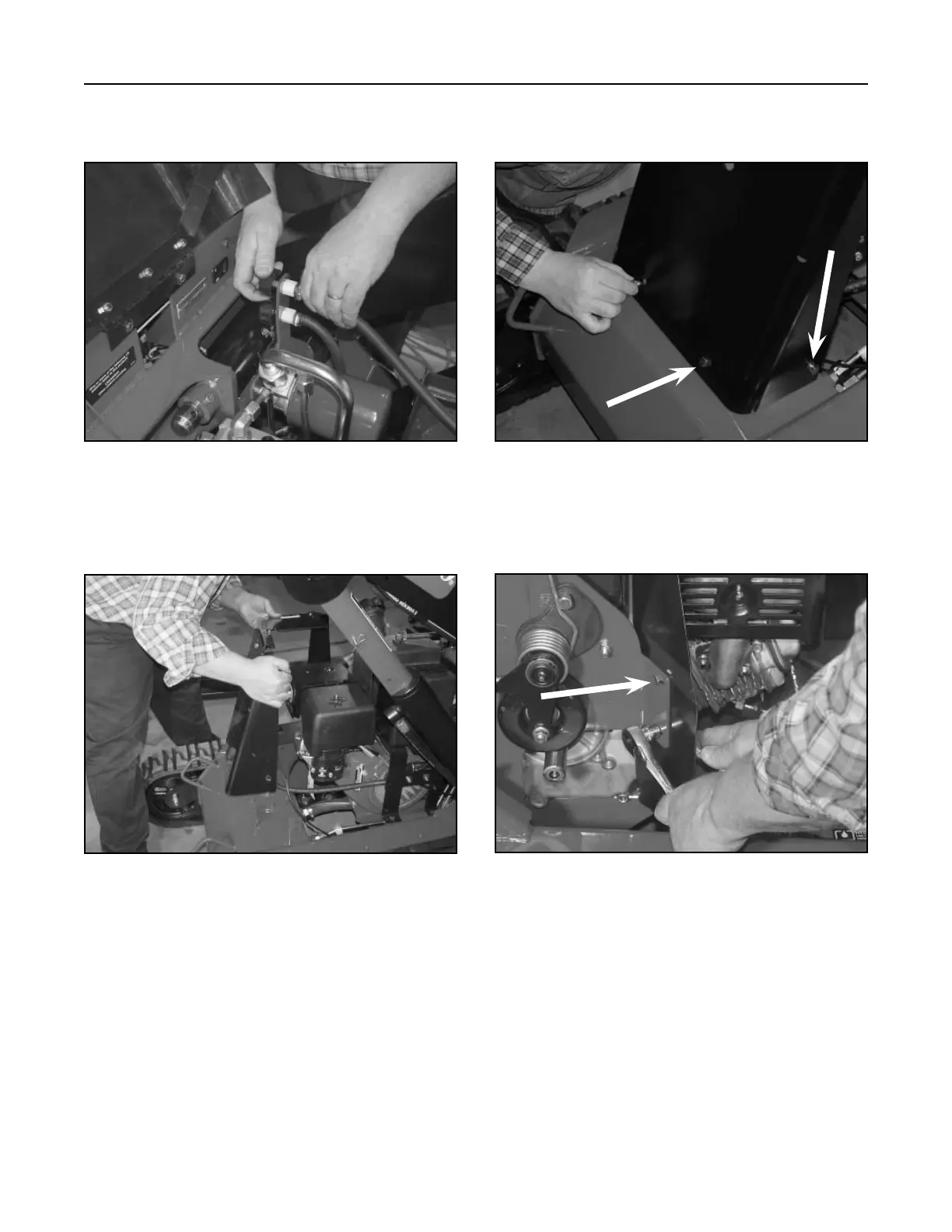

17. Install four bolts and washers located at the base
of the front grille (Fig. 063).
Figure 063 DSC-1129
18. Install the two bolts and nuts on the backside of
the exhaust deflector (Fig. 064).
Figure 064 DSC-1091
15. Install the fuel tank vent hose on the oil filter
bracket (Fig. 061).
Figure 061 DSC-1095
16. Install the front grille with the exhaust deflector
attached (Fig. 062).
Figure 062 DSC-1093
