IdenticationandFunction
g187999

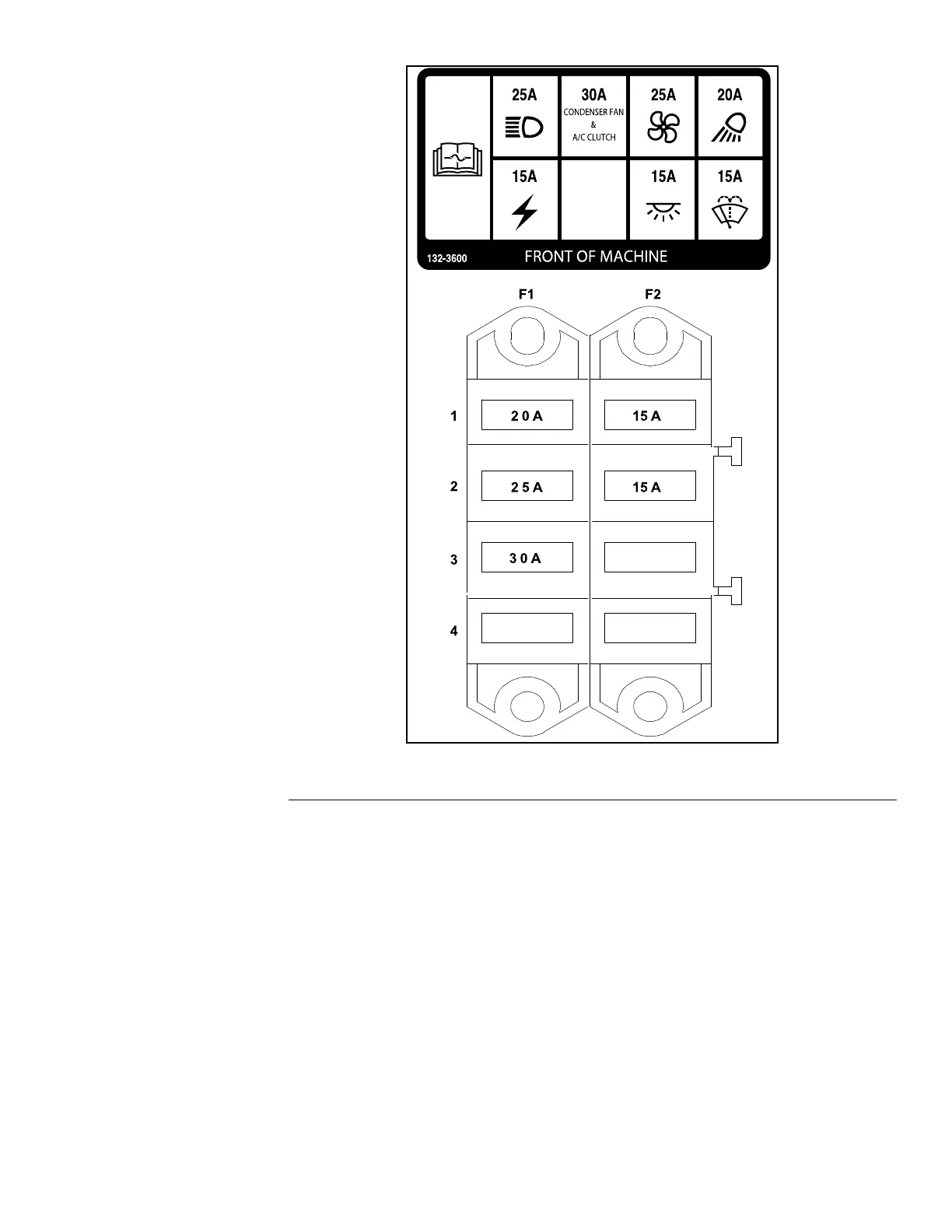

Figure200
RefertoFigure200toidentifyeachindividualfuseanditscorrectamperage.
Thefuseshavethefollowingfunctions.
FuseF1-1(20A):Protectsthecabworklightcircuit.
FuseF1-2(25A):Protectstheblowerfancircuit.
FuseF1-3(30A):Protectstheairconditionercompressorclutchcircuit.
FuseF2-1(15A):Protectsthewindshieldwiper/washercircuit.
FuseF2-2(15A):Protectsthecabdomelightcircuit.
FusesF1-4,F2-3,andF2-4areavailableforoptionalequipment.
TestingtheFuses
EnsurethatthekeyswitchisintheOFFpositionandthekeyisremovedfromthe
switch.Removethefusesfromthefuseblockfortesting.Thefuseshouldhave
continuitybetweenthefuseterminals.
Groundsmaster360
Page5–55
ElectricalSystem:TestingtheElectricalComponents
16225SLRevC
