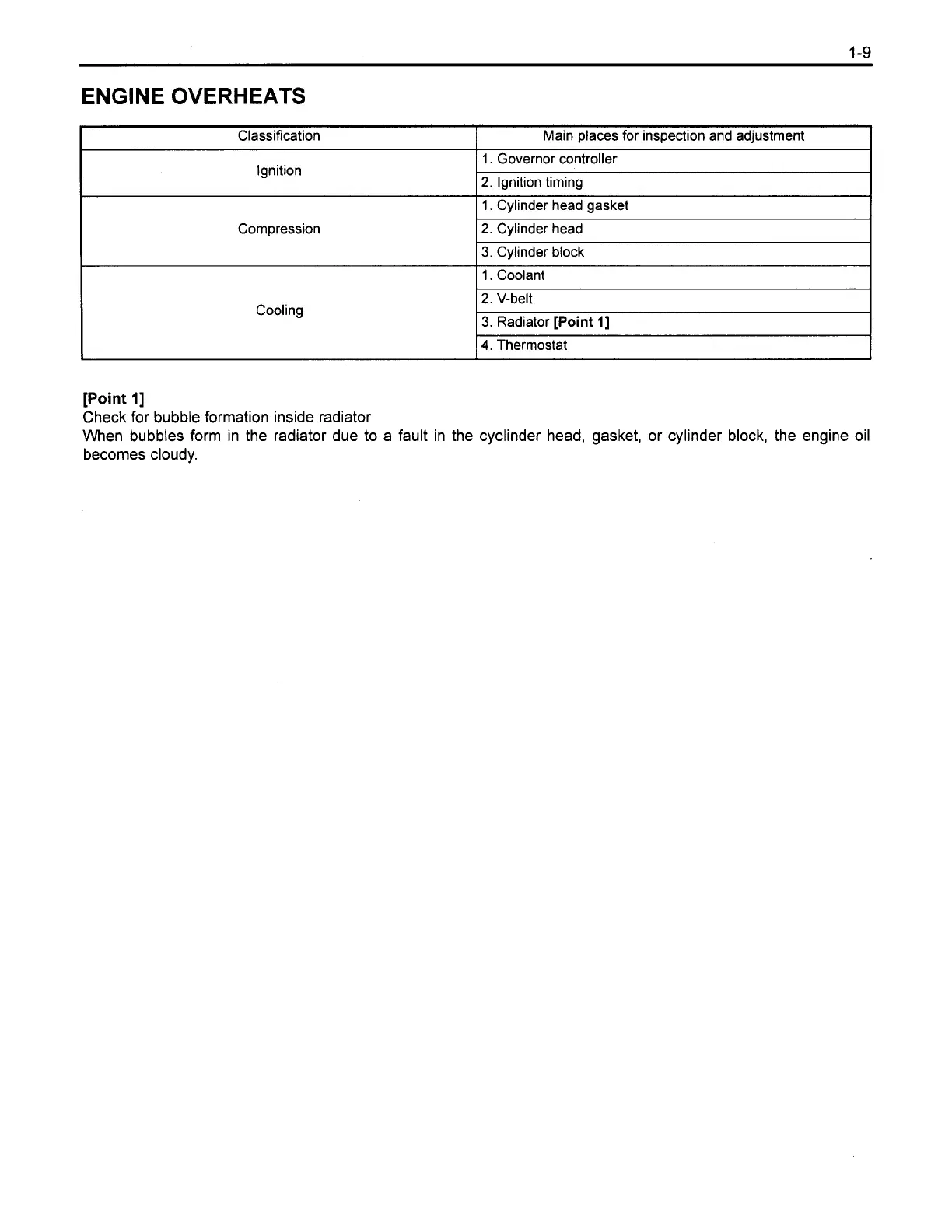

ENGINE OVERHEATS
Classification
I
Ignition
Compression
Main places for inspection and adjustment
1. Governor controller
2. Ignition timing I
1. Cylinder head gasket
2. Cylinder head
3. Cylinder block
1. Coolant
2. V-belt
3. Radiator [Point I]
4. Thermostat
[Point I]
Check for bubble formation inside radiator
When bubbles form in the radiator due to a fault in the cyclinder head, gasket, or cylinder block, the engine oil
becomes cloudy.
4Y-E Repair
Section 1.1.1

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
